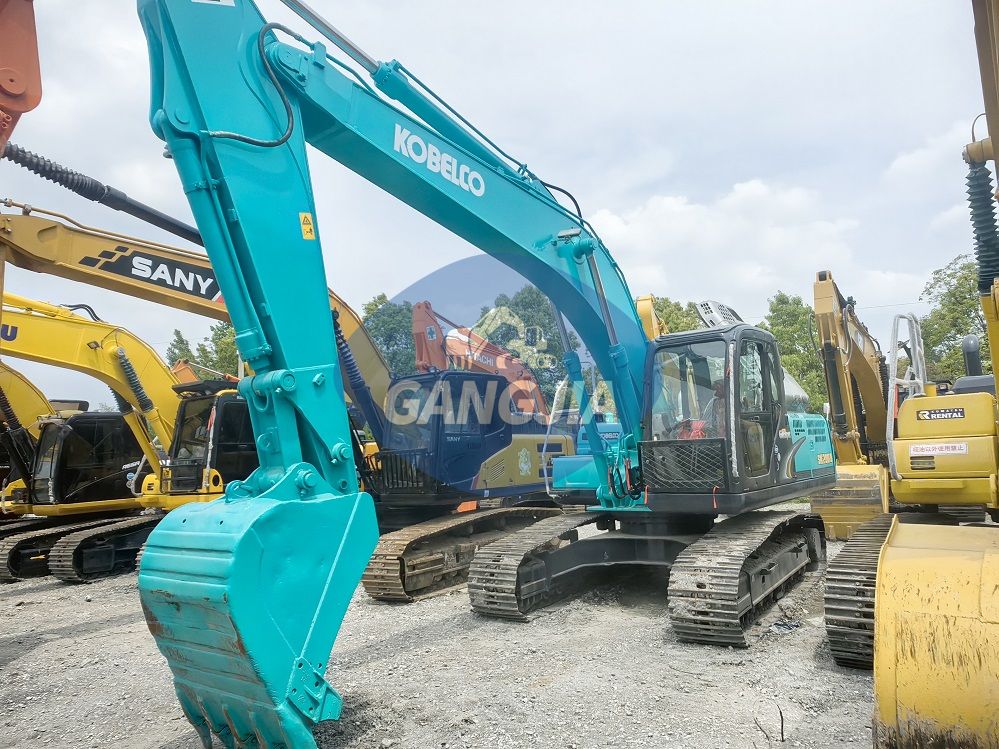

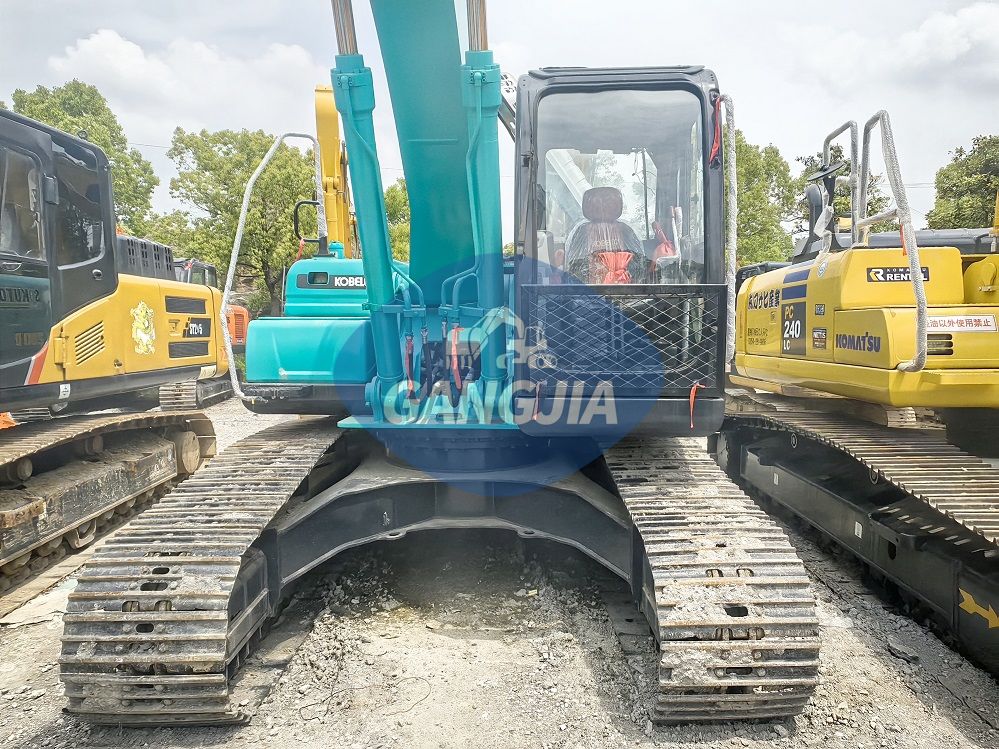

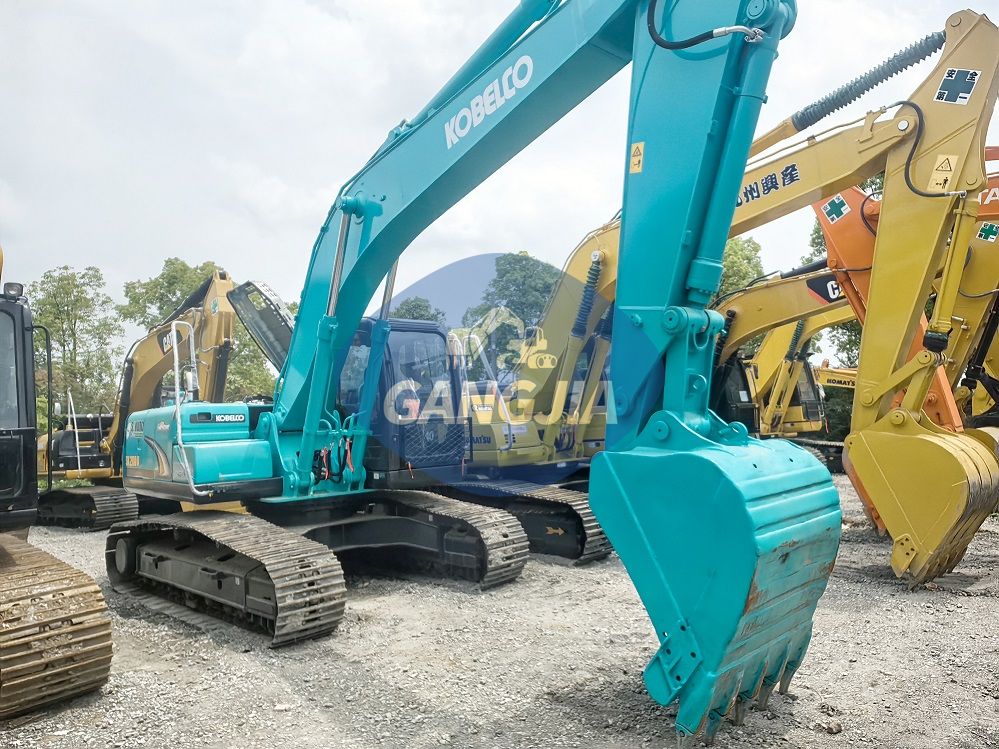

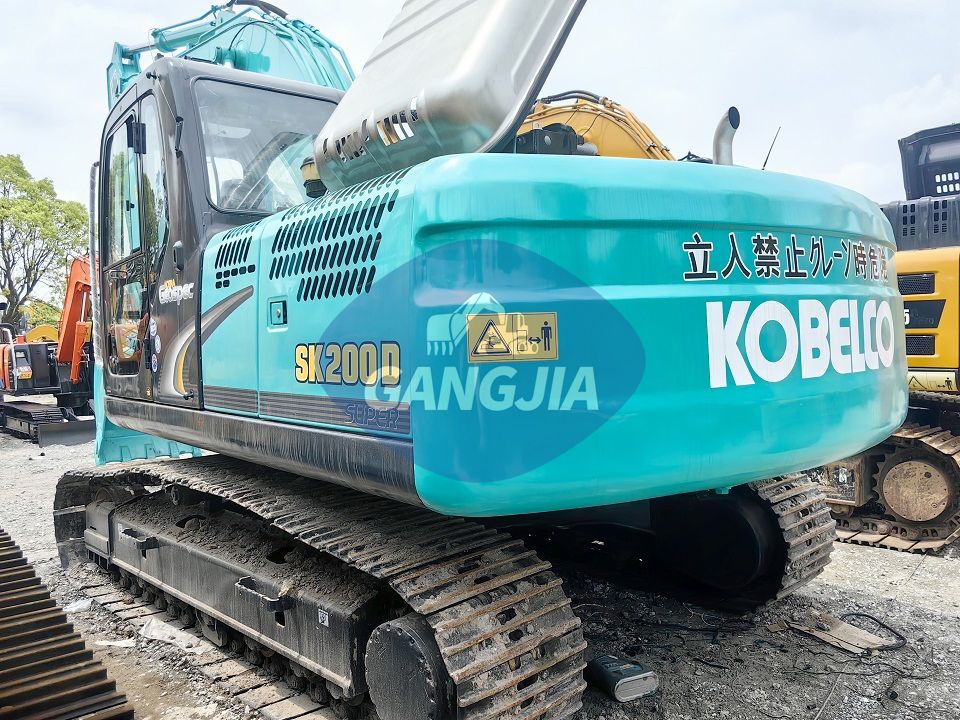

Kobelco SK200-8 excavator parameter configuration

Specifications

Power conventional power

Manufacturer joint venture/import

Bucket backhoe

Tonnage (tons) 20

Machine working weight (kg) 20600

Bucket capacity (m³) 0.8

Arm length (mm) 2.94

Origin Hangzhou

Performance

Slewing speed (rpm) 12.5

Travel speed (km/h) 3.6/6.0

Gradability (%) 70/35°

Ground pressure (Kpa) 46

Bucket digging force (kN) 143

Arm digging force (kN) 102

Power system

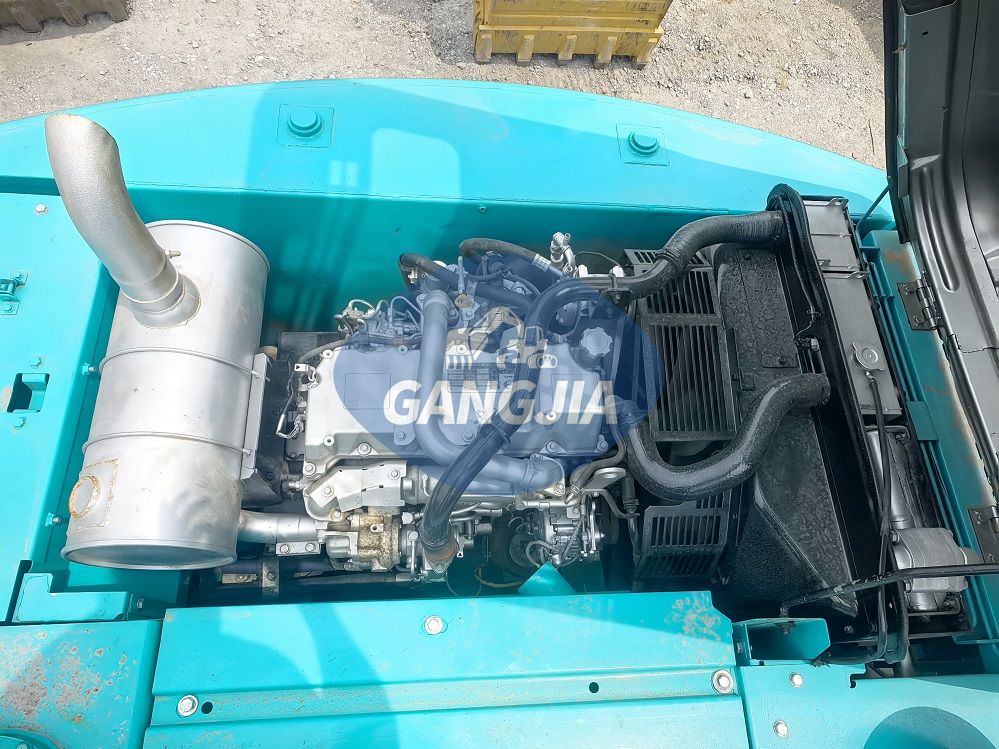

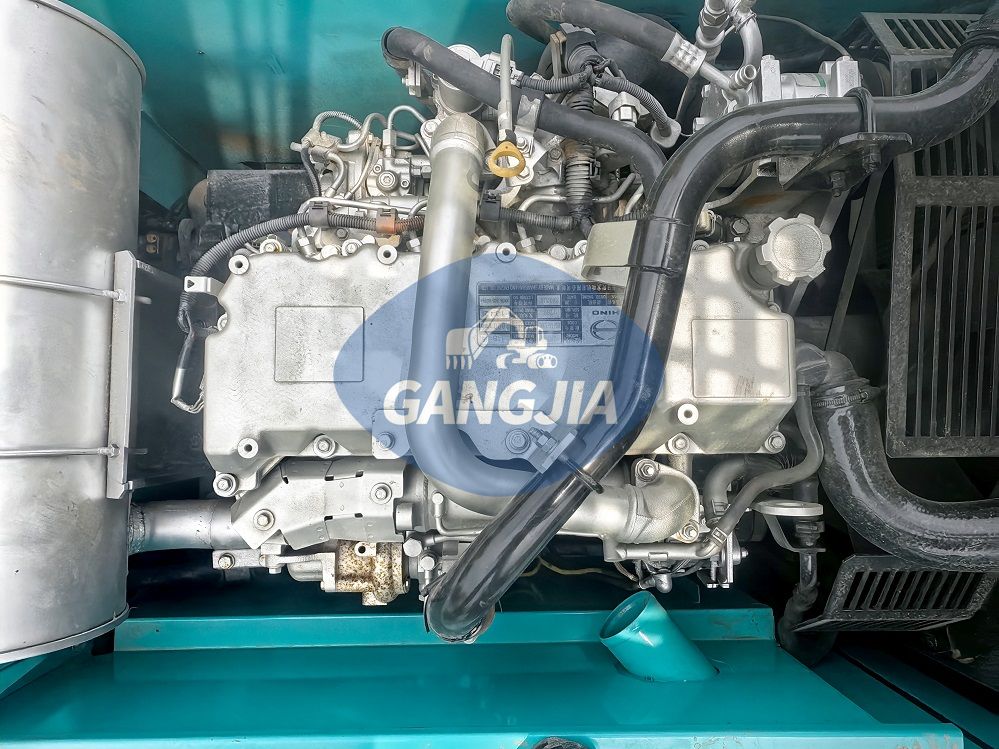

Engine model Hino J05E

Rated power (kw/rpm) 114/2000

Displacement (L) 5.123

Number of cylinders (pcs) 4

Cylinder diameter × stroke (mm) 112 × 130

Cooling method Water cooling

Working mode Direct injection, four-stroke, turbocharged, built-in intercooler

Hydraulic system

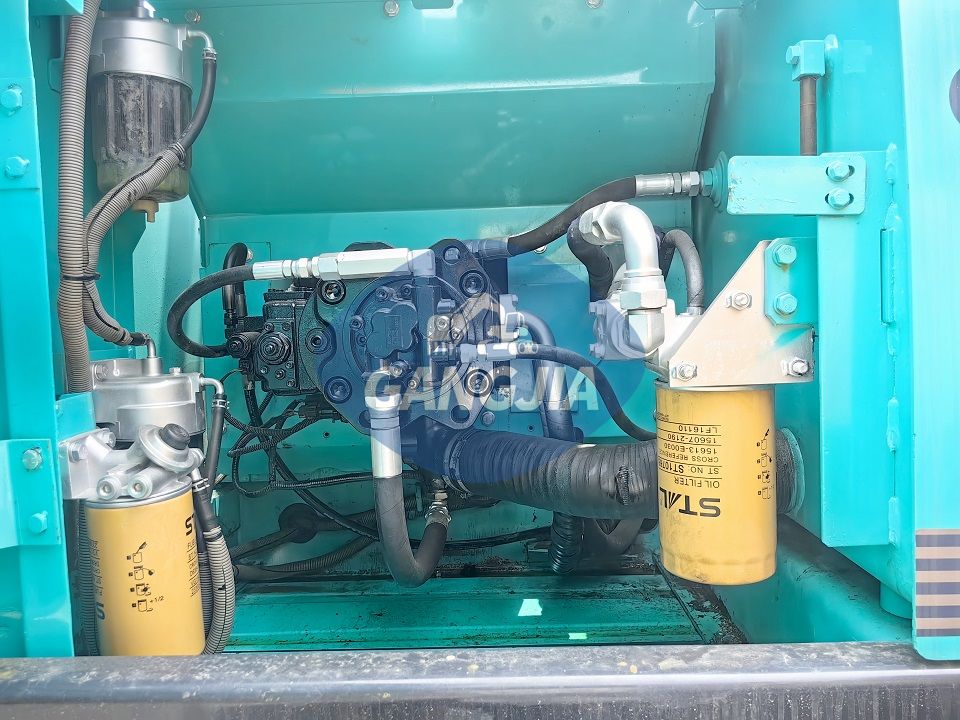

Main pump type Dual variable displacement axial piston pump × 2 + pilot gear pump × 1

Main pump maximum flow (l/min) 2 × 220

Working hydraulic oil circuit (Mpa) 34.3

Travel hydraulic circuit (Mpa) 34.3

Slewing hydraulic circuit (Mpa) 29

Control hydraulic circuit (Mpa) )5

Boom cylinder - number × cylinder diameter × stroke (mm) 120 × 1355

Arm cylinder - number × cylinder diameter × stroke (mm) 135 × 1558

Bucket cylinder - number × cylinder diameter × stroke (mm) 120 × 1080

Is the hydraulic crushing pipeline standard?

Oil capacity

Fuel tank (L) 370

Hydraulic oil tank (L) 146

Engine oil replacement volume (L) 22

Coolant (L) 22

Main body size

Total transport length (mm) 9450

Total transport width (mm) 2800

Total transport height (mm) 2980

Track ground length (mm) 3370

Total track length (mm) 4170

Track shoe width (mm) 600/700/800

Total track width (mm) 2800

Track gauge (mm) 2200

Minimum ground clearance (mm) )450

Counterweight ground clearance (mm)1060

Minimum turning radius of front working device (mm)3540

Rear end turning radius (mm)2750

Operating range

Maximum digging radius (mm)9900

Maximum digging radius of parking surface (mm)9730

Maximum digging depth (mm)6700

Maximum digging height (mm)9720

Maximum unloading height (mm)6910

Maximum vertical digging depth (mm)6100

Maximum effective digging depth (mm)6520

Bulldozer blade width × height (mm) without bulldozer

Bulldozer lifting or pushing depth (mm) without bulldozer
