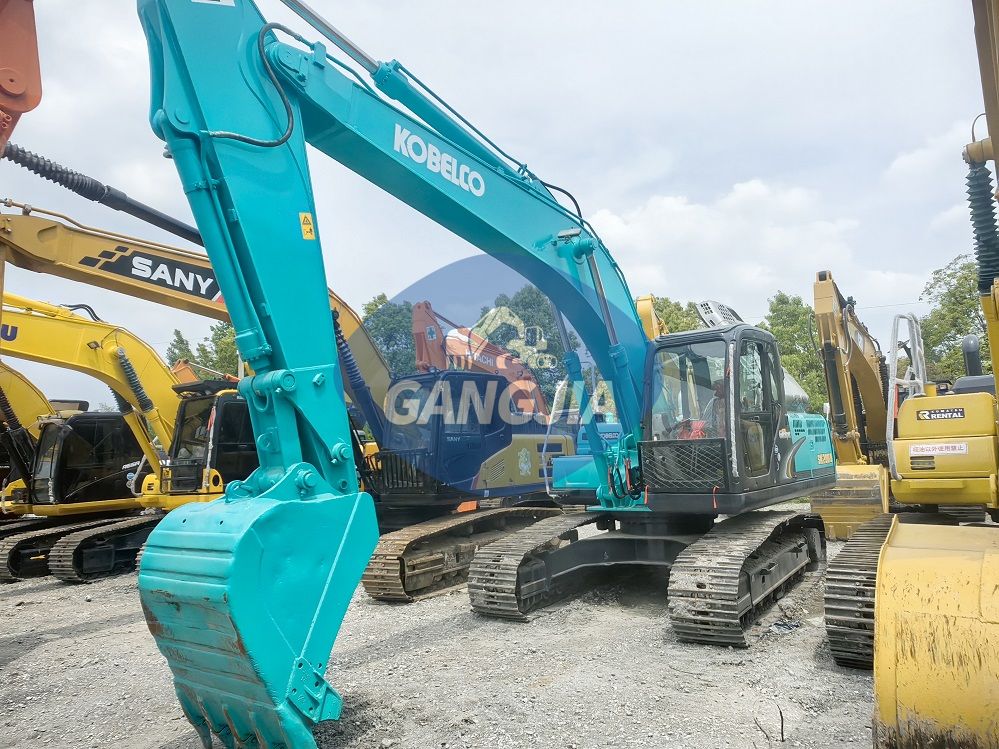

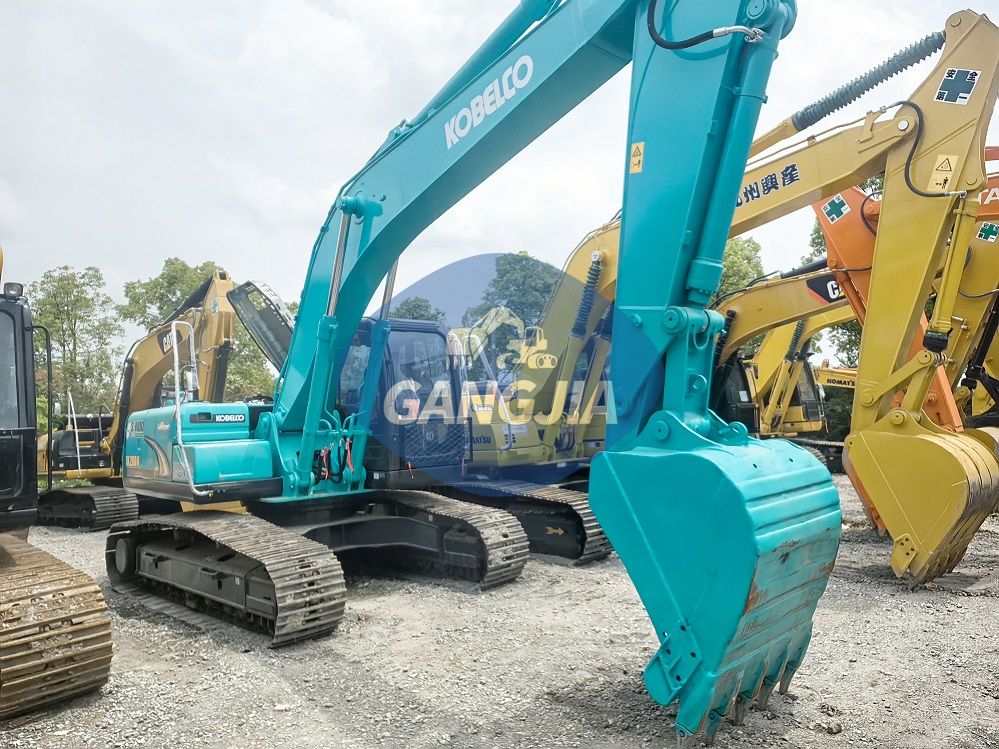

Kobelco SK200-8 excavator parameter configuration

Specification

Power traditional power

Manufacturer joint venture/import

bucket backhoe

Tonnage (tons) 20

Machine working weight (kg) 20600

Bucket capacity (m³)0.8

Dipper length (mm) 2.94

Place of Origin Hangzhou

performance

Rotation speed (rpm)12.5

Walking speed (km/h)3.6/6.0

Climbing ability (%)70/35°

Grounding specific pressure (Kpa) 46

Bucket digging force (kN) 143

Digging force of stick (kN) 102

power system

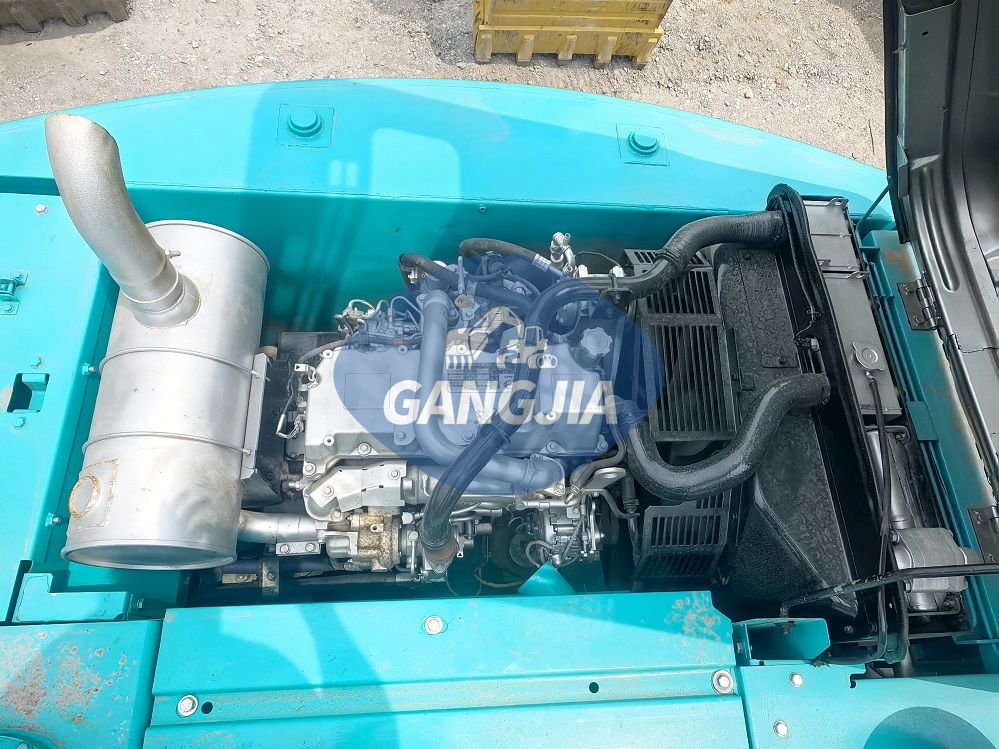

Engine model Hino J05E

Rated power (kw/rpm)114/2000

Displacement(L)5.123

Number of cylinders (number) 4

Bore size × stroke (mm) 112 × 130

Cooling method: water cooling

Working form: direct injection, four-stroke, turbocharged, built-in intercooling

Hydraulic system

Main pump type double variable displacement axial piston pump × 2 + pilot gear pump × 1

Maximum flow rate of main pump (l/min) 2×220

Working hydraulic oil circuit (Mpa) 34.3

Travel hydraulic circuit (Mpa) 34.3

Rotary hydraulic circuit (Mpa) 29

Control hydraulic circuit (Mpa) 5

Boom cylinder - number × bore × stroke (mm) 120 × 1355

Stick cylinder - number × bore × stroke (mm) 135 × 1558

Bucket cylinder - number × bore × stroke (mm) 120 × 1080

Is the hydraulic crushing pipeline standard?

oil capacity

Fuel tank (L) 370

Hydraulic oil tank (L) 146

Engine oil replacement amount (L) 22

Coolant (L) 22

Body size

Total transportation length (mm) 9450

Total transportation width (mm) 2800

Total transportation height (mm) 2980

Track ground length (mm) 3370

Total track length (mm) 4170

Track shoe width (mm) 600/700/800

Total track width (mm) 2800

Track gauge (mm) 2200

Minimum ground clearance (mm) 450

Counterweight ground clearance (mm) 1060

Minimum turning radius of front working device (mm) 3540

Rear end turning radius (mm) 2750

Scope of work

Maximum digging radius (mm) 9900

Maximum excavation radius of parking surface (mm) 9730

Maximum digging depth (mm) 6700

Maximum digging height (mm) 9720

Maximum unloading height (mm) 6910

Maximum vertical excavation depth (mm) 6100

Maximum effective digging depth (mm) 6520

Dozer blade width × height (mm) without dozer blade

Dozer blade lift or push depth (mm) without dozer blade
