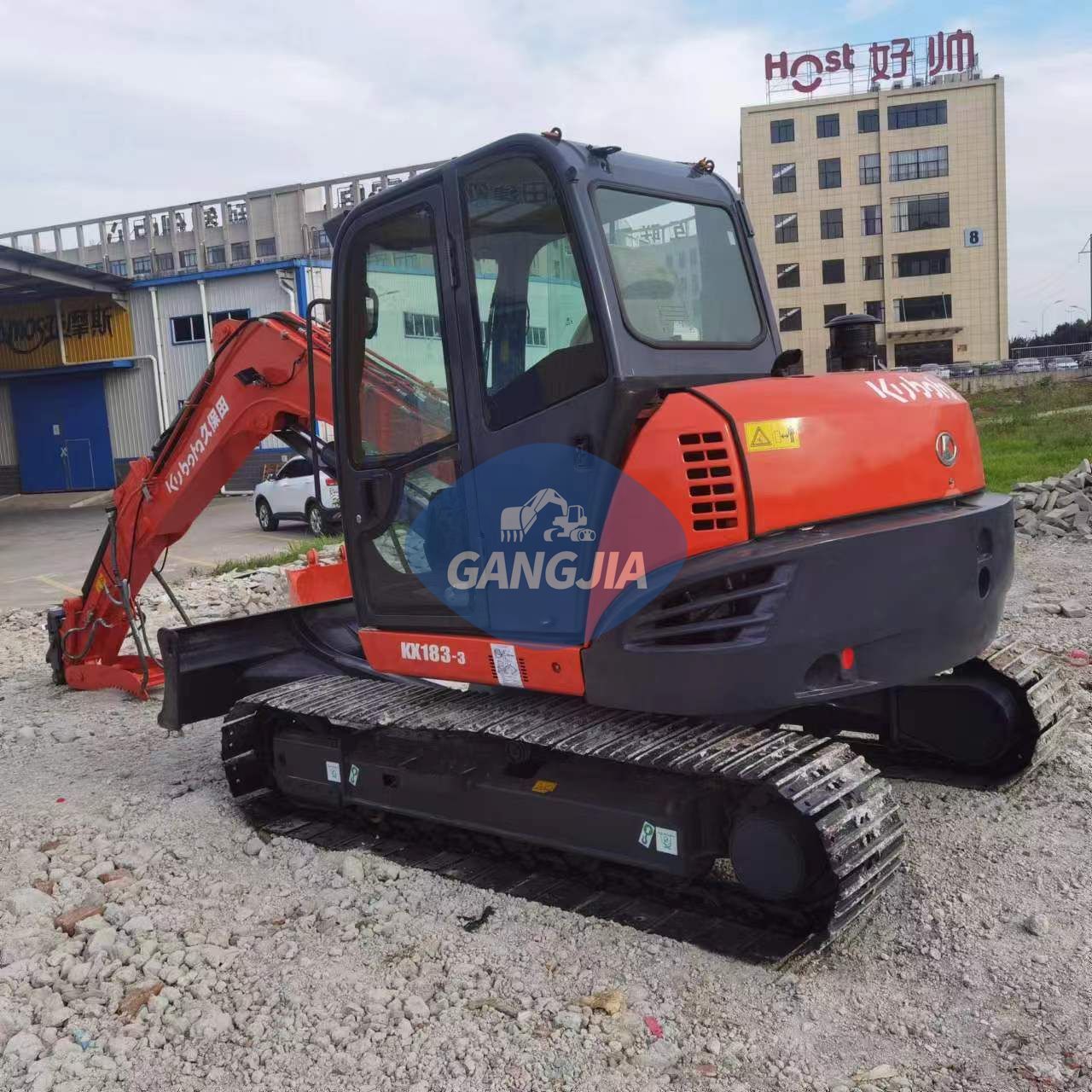

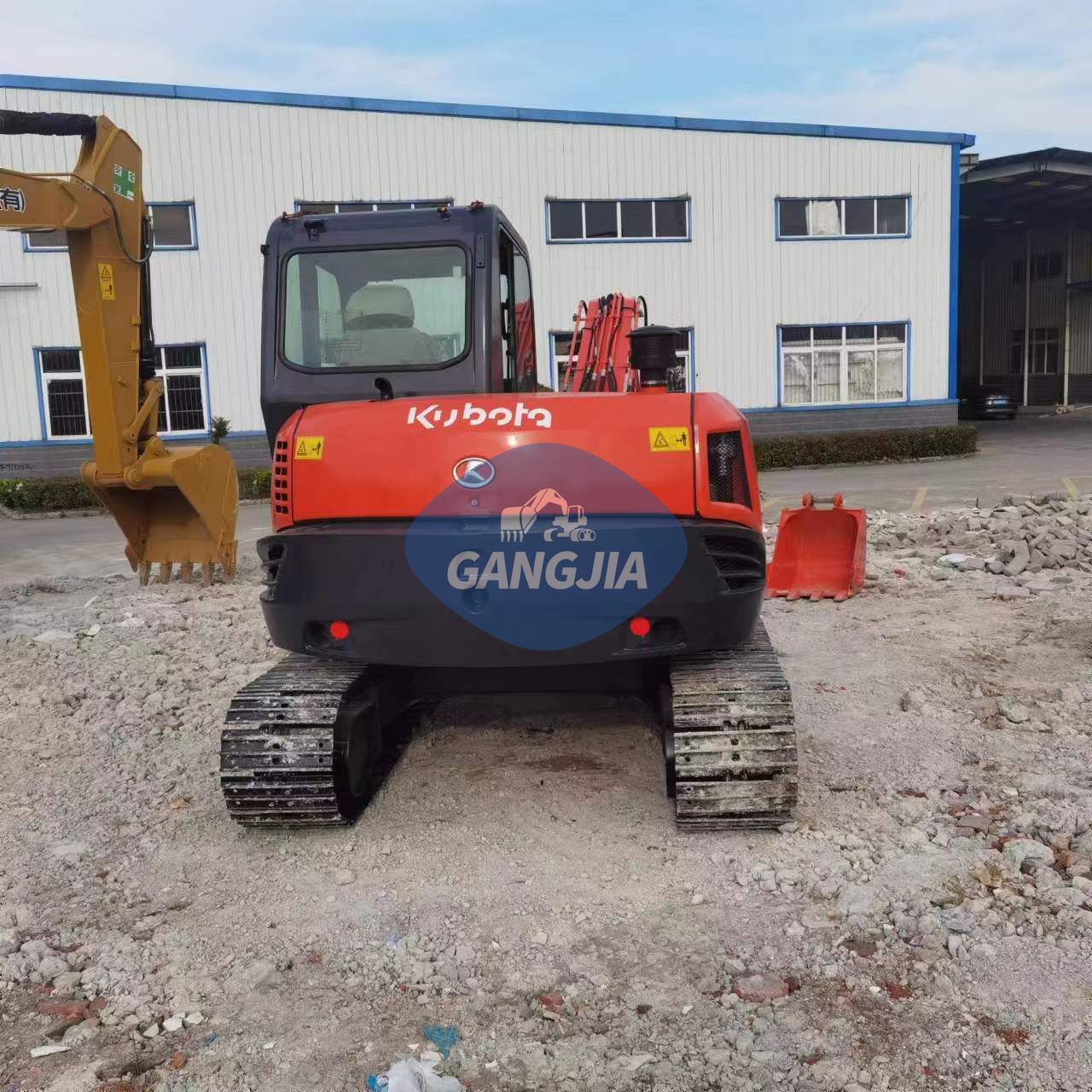

Kubota KX183-3 excavator parameter configuration

Specification

Machine working weight (kg) 8350

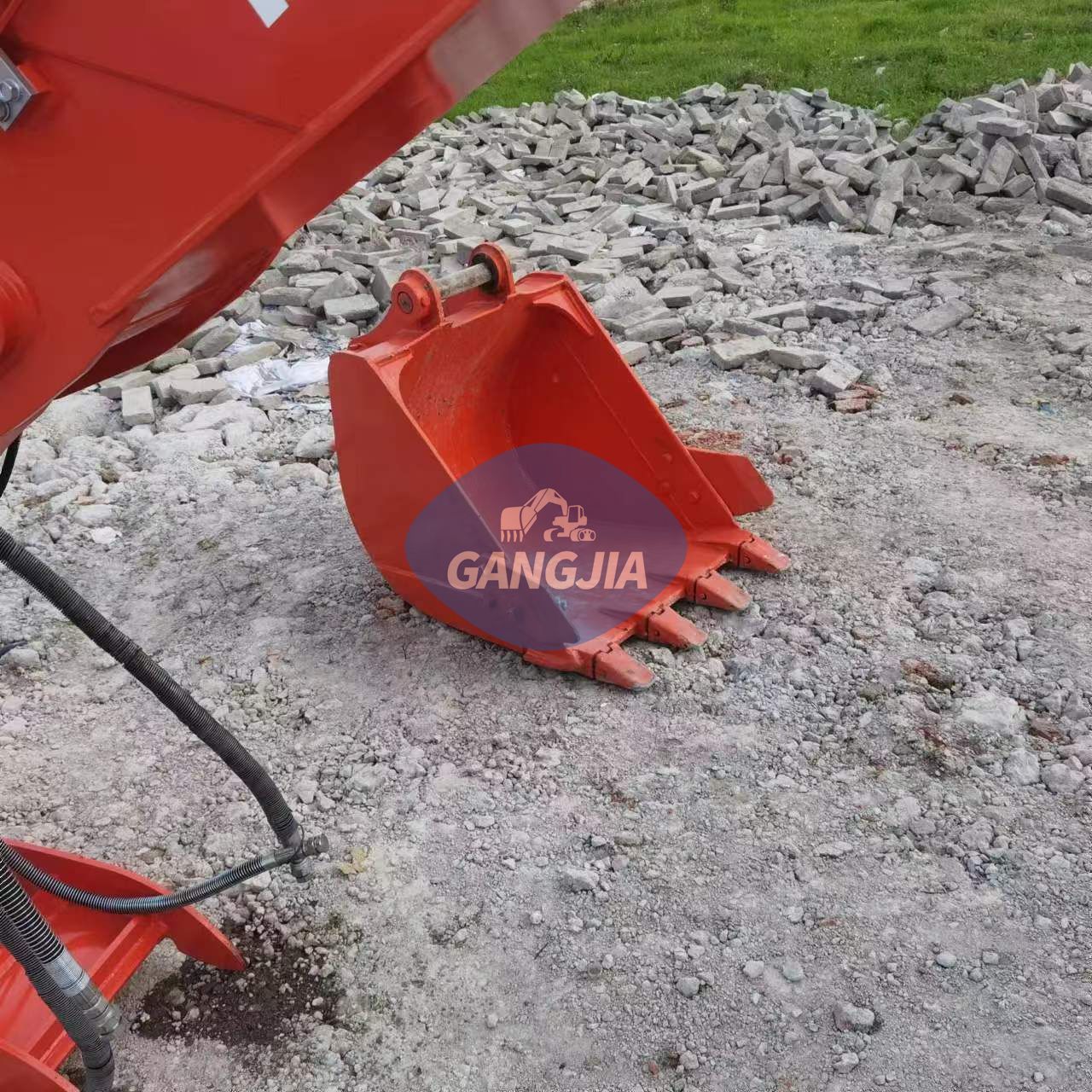

Bucket capacity (m³)0.31

Origin Japan

Tonnage (tons) 8

Manufacturer joint venture/import

Power traditional power

bucket backhoe

Manufacturer joint venture/import

Power traditional power

performance

Rotation speed (rpm) 9.5

Walking speed (km/h)2.7/4.9

Climbing ability (%) 30

Bucket digging force (kN) 65.2

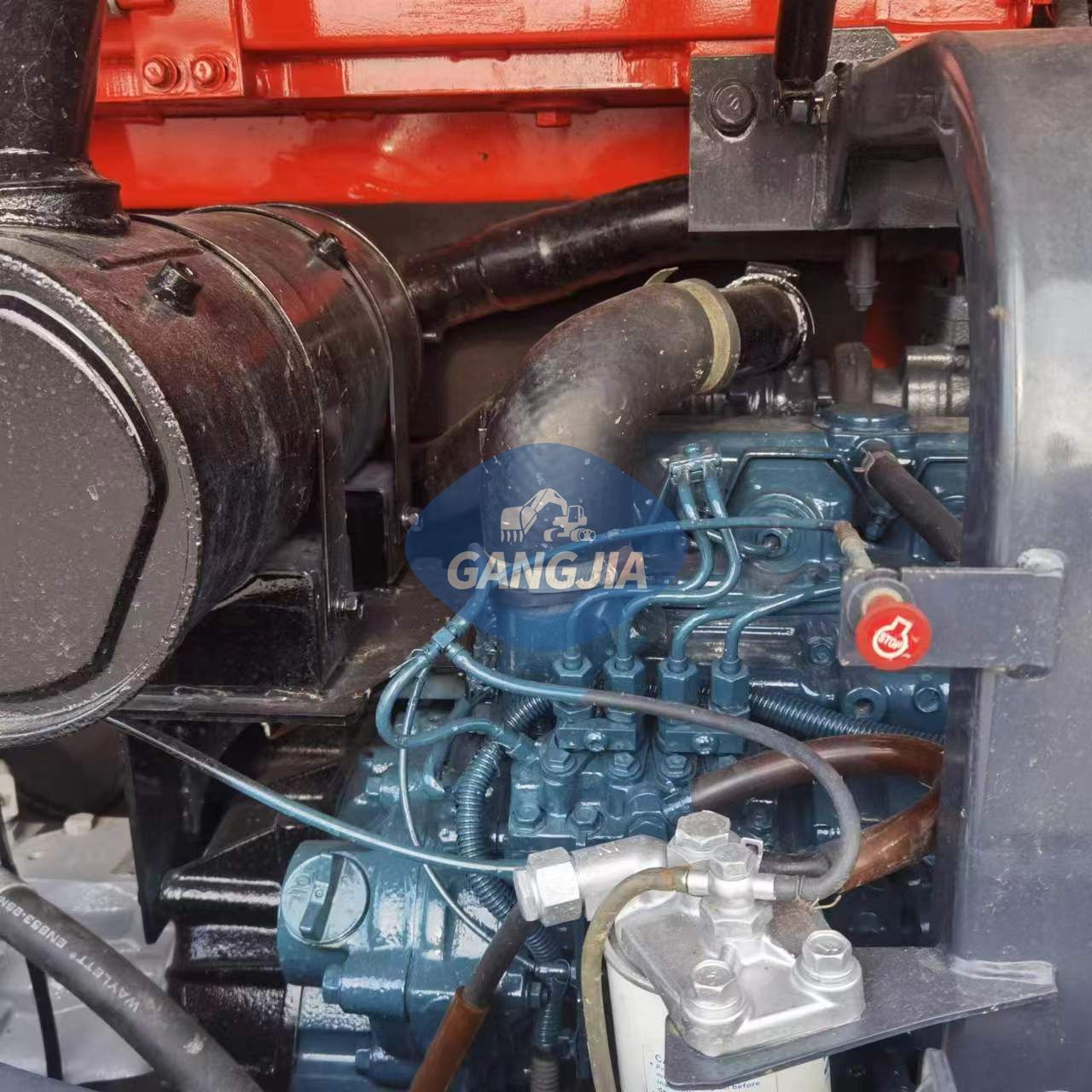

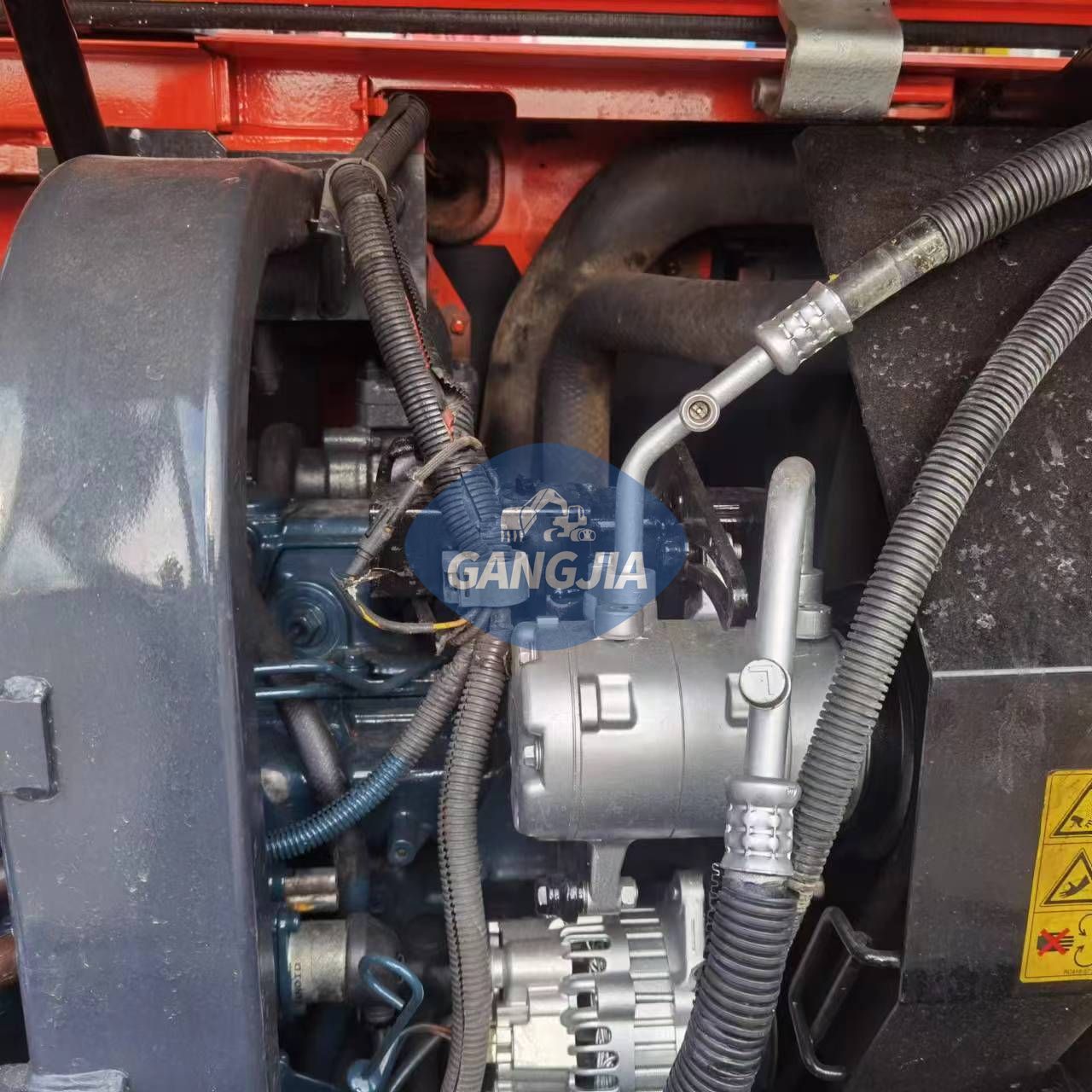

power system

Engine model Kubota

Rated power (kw/rpm)47.8/2000

Displacement(L)3.331

Cooling method: water cooling

Hydraulic system

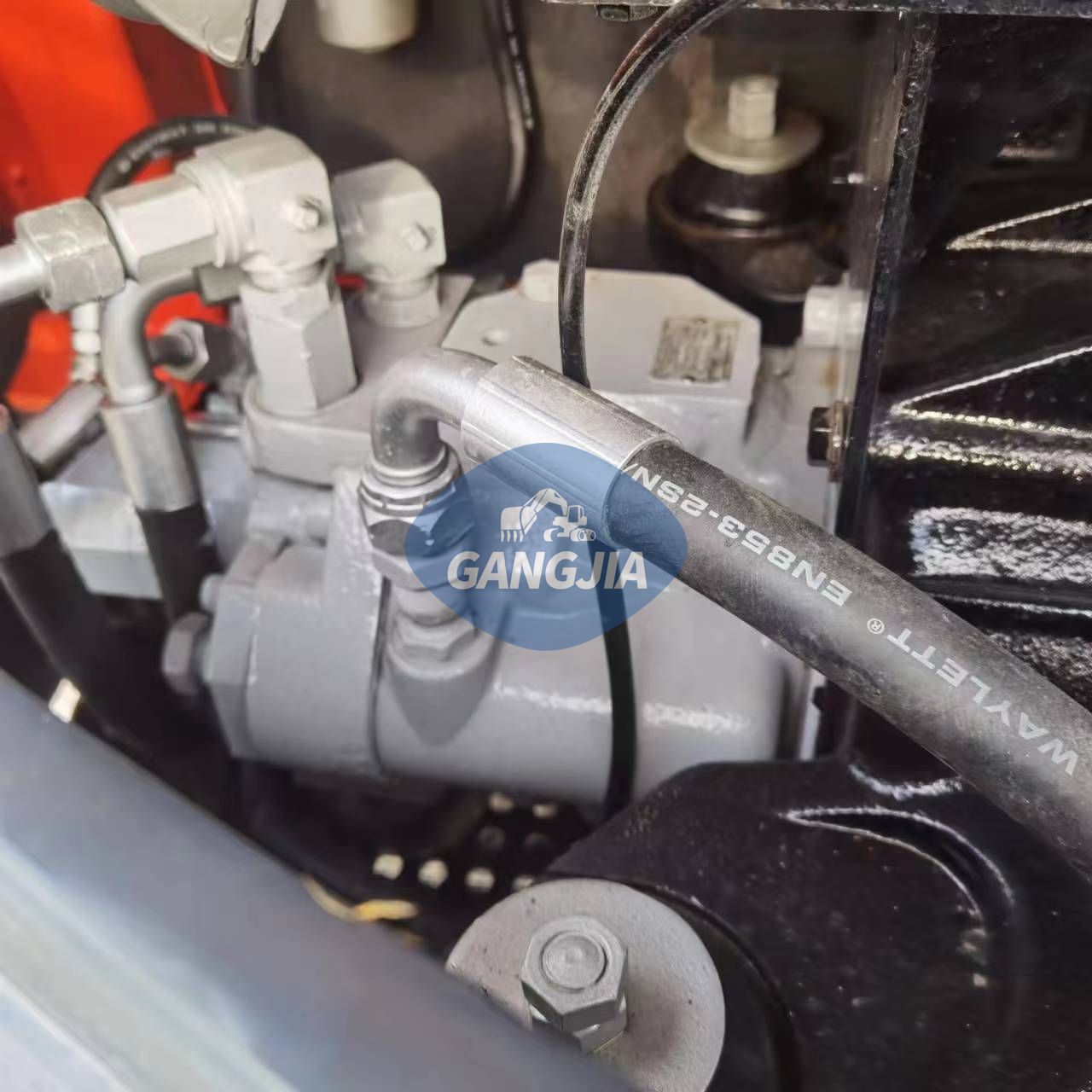

Main pump type variable pump × 2 + gear pump × 1

Travel hydraulic motor type piston hydraulic motor: 2F

Rotary hydraulic motor type piston hydraulic motor

oil capacity

Fuel tank(L)115

Body size

Total transportation length (mm) 6450

Total transportation width (mm) 2200

Total transportation height (mm) 2530

Overall height of cab (mm) 2530

Total track length (mm) 2840

Track shoe width (mm) 450 (steel track)

Track gauge (mm)1750

Minimum ground clearance (mm) 364

Minimum turning radius of front working device (mm) 2410

Rear end turning radius (mm) 1460

Scope of work

Maximum excavation radius (mm) 7010

Maximum excavation radius of parking surface (mm) 6850

Maximum digging depth (mm) 4290

Maximum digging height (mm) 7040

Maximum unloading height (mm) 4980

Maximum vertical excavation depth (mm) 3490

Bulldozing board width × height (mm) 2200 × 500

Dozer blade lift or push depth (mm) 470/530
