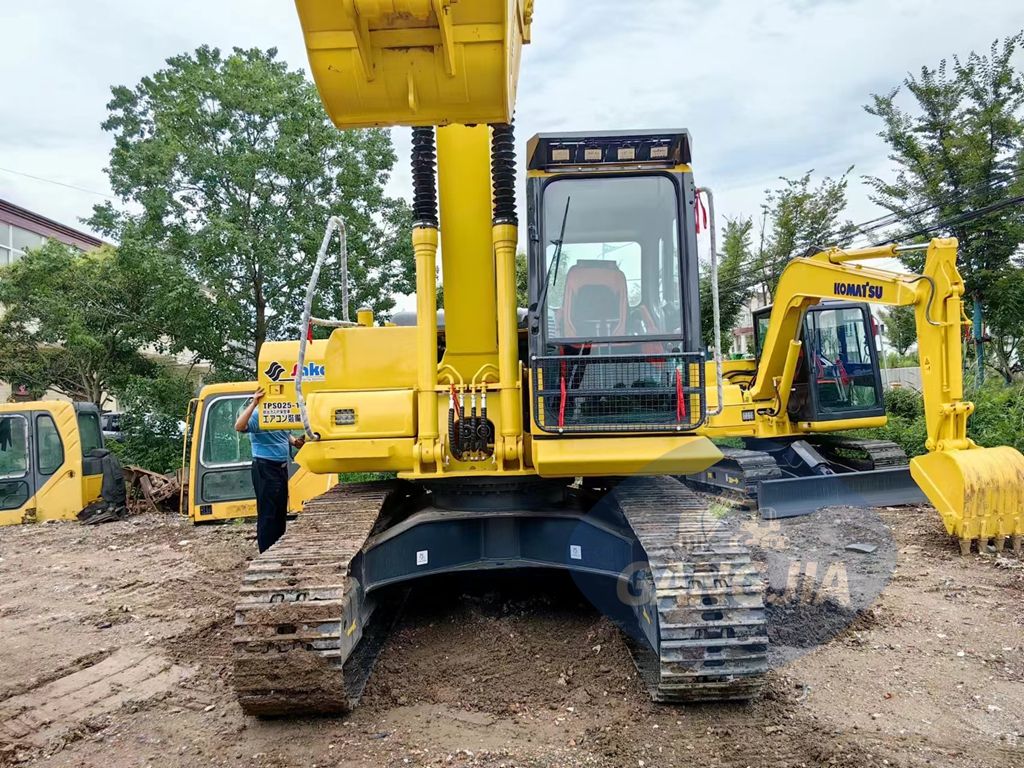

Komatsu PC160-7 excavator parameter configuration

Specification

Machine working weight (kg) 16500

Bucket capacity (m³)0.65

Boom length (mm) 5150

Dipper length (mm) 2610

Tonnage (tons) 16

bucket backhoe

Manufacturer joint venture/import

Power traditional power

bucket backhoe

Manufacturer joint venture/import

Power traditional power

performance

Rotation speed (rpm)12

Walking speed (km/h)3.4-5.5

Climbing ability (%)70/35°

Ground specific pressure (Kpa) 46.1

Bucket digging force (kN) 123

Digging force of stick (kN) 86.3

power system

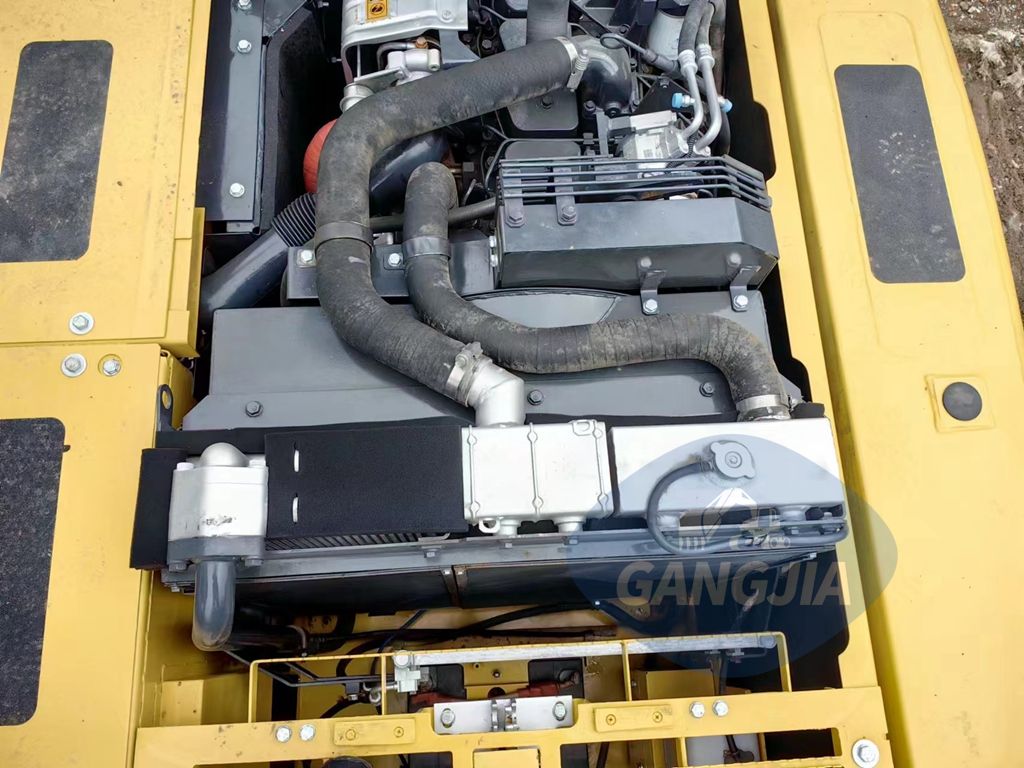

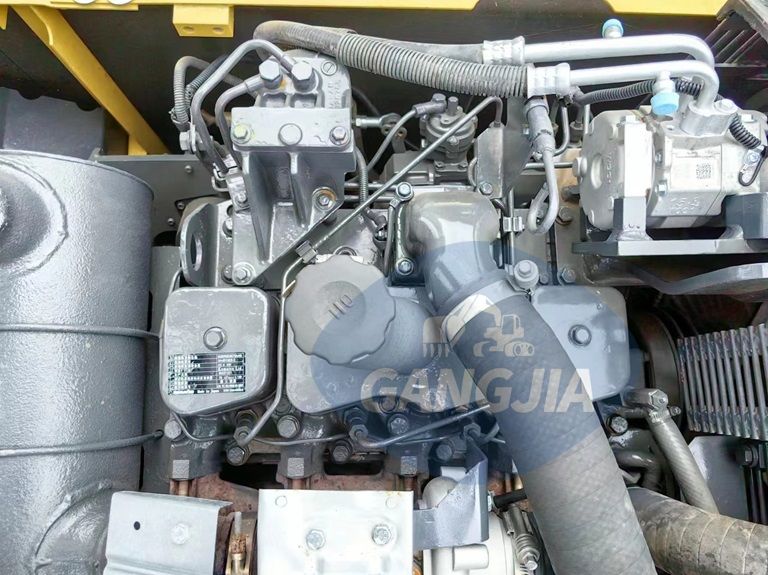

Engine model Komatsu SAA4D102E-2

Rated power (kw/rpm)82.4/2200

Displacement(L)3.92

Cooling method: water cooling

Working form: 4-cylinder, direct injection, turbocharging, after-cooling, mechanical full-speed control; complies with 2001 EPA/EU/Japan Level 2 emission standards.

Hydraulic system

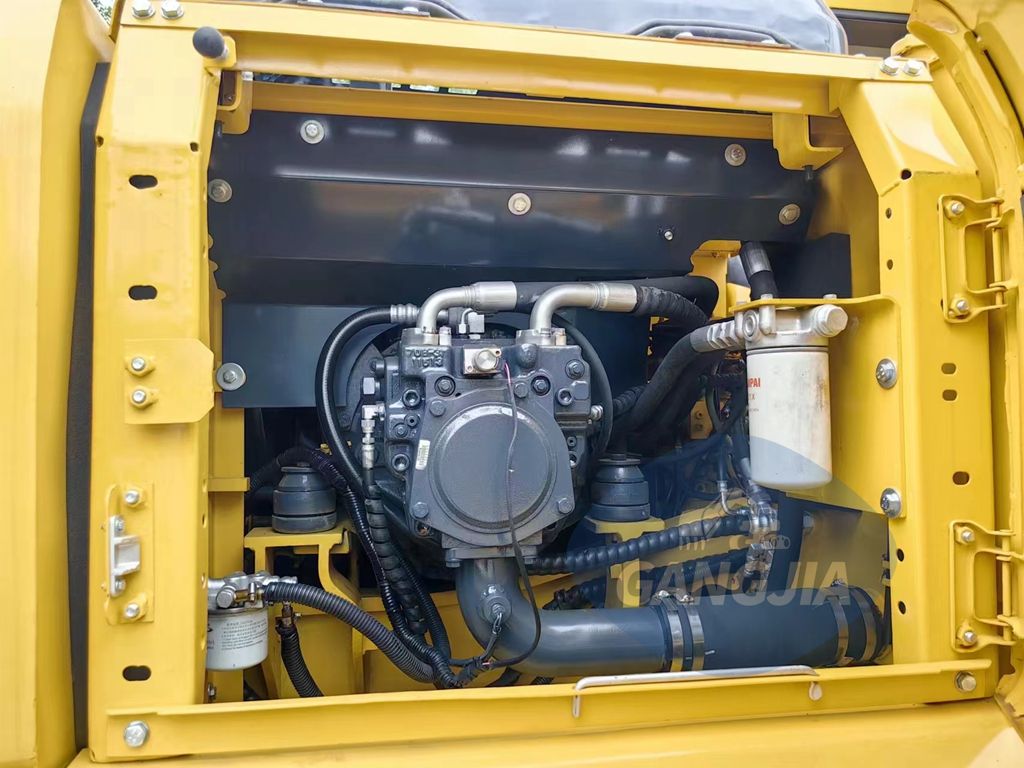

Maximum flow rate of main pump (l/min) 312

Travel hydraulic motor type axial piston motor × 2 (with parking brake)

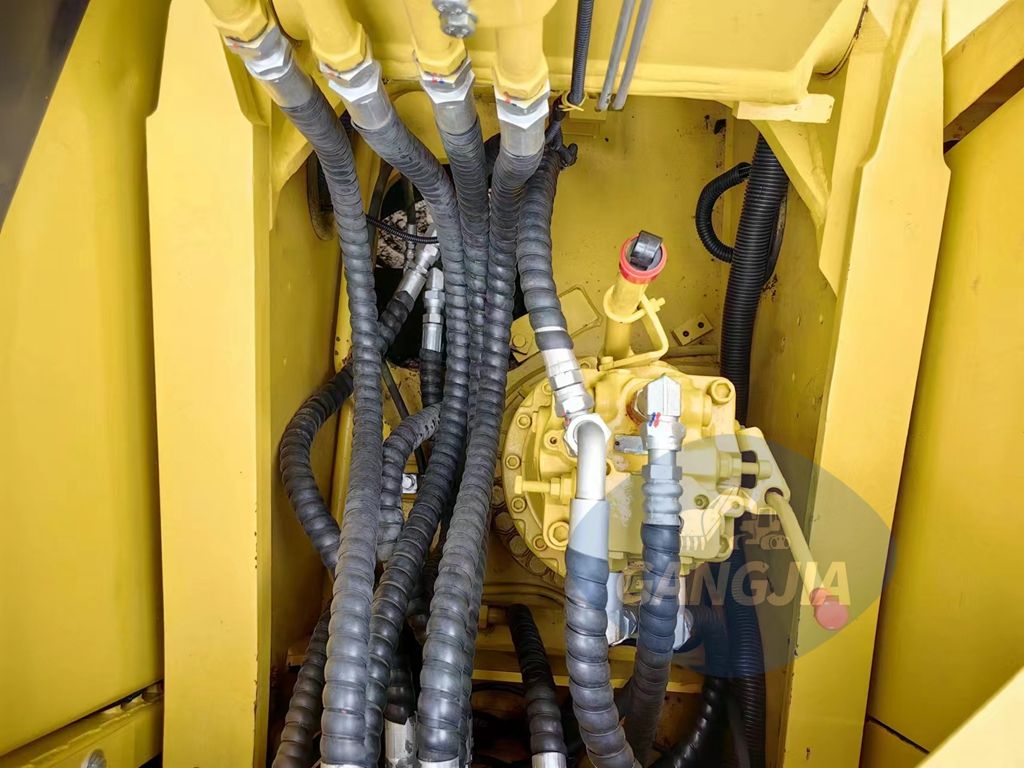

Rotary hydraulic motor type axial piston motor × 1 (with rotation holding valve)

Working hydraulic oil circuit (Mpa) 37.3

Travel hydraulic circuit (Mpa) 37.3

Rotary hydraulic circuit (Mpa) 28.4

Control hydraulic circuit (Mpa) 3.2 pilot oil circuit

Boom cylinder - number × bore × stroke (mm) 110 × 1175 × 75

Stick cylinder - number × bore × stroke (mm) 120 × 1342 × 85

Bucket cylinder - number × bore × stroke (mm) 105 × 1027 × 70

Is the hydraulic crushing pipeline standard?

oil capacity

Fuel tank (L) 280

Hydraulic oil tank (L)121

Engine oil replacement volume (L) 14

Coolant (L) 17.3

Body size

Total transportation length (mm) 8565

Total transportation width (mm) 2490

Total transportation height (mm) 2990

Overall height of cab (mm) 2970

Counterweight ground clearance (mm) 1055

Track ground length (mm) 3170

Total track length (mm) 3965

Track shoe width (mm) 500

Total track width (mm) 2490

Track gauge (mm)1990

Minimum ground clearance (mm) 440

Rear end turning radius (mm) 2390

Scope of work

Maximum excavation radius (mm) 8960

Maximum digging depth (mm) 5960

Maximum digging height (mm) 8980

Maximum unloading height (mm) 6370

Maximum vertical excavation depth (mm) 5040

Maximum effective excavation depth (mm) 5740

Dozer blade lift or push depth (mm) without dozer blade
