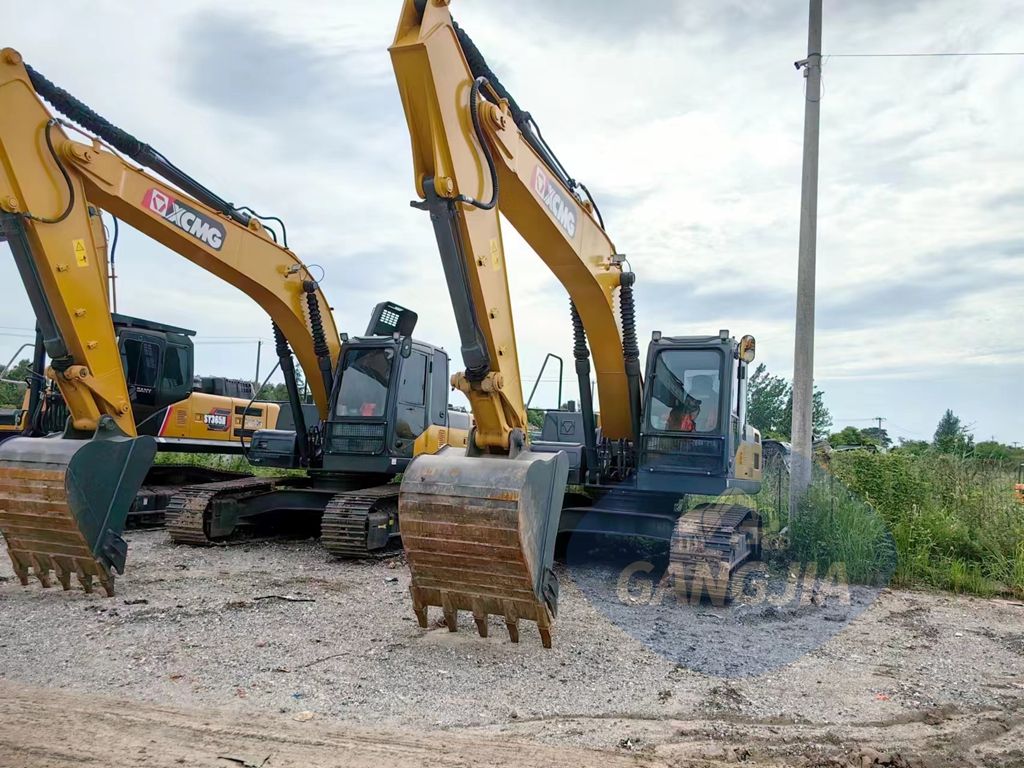

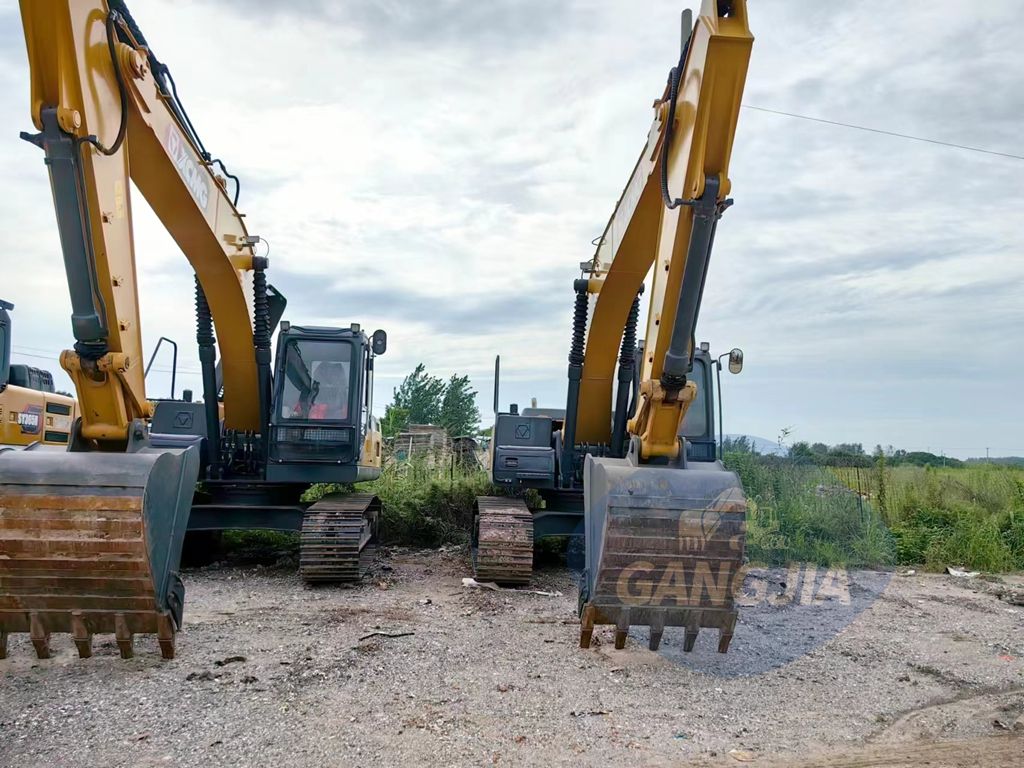

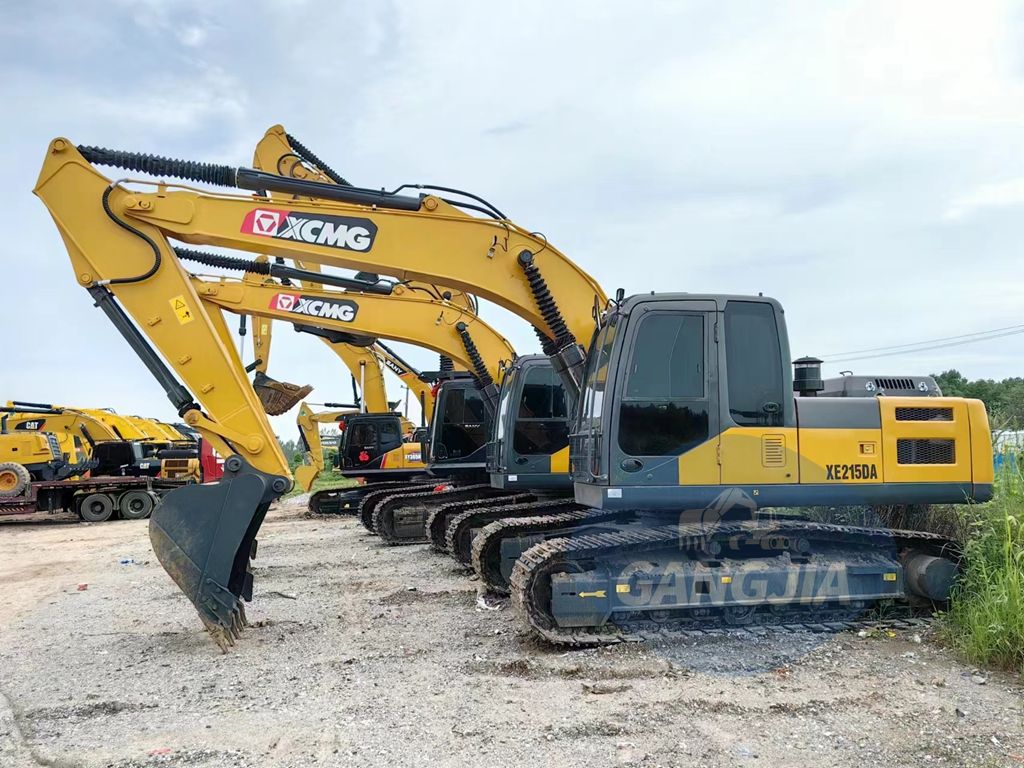

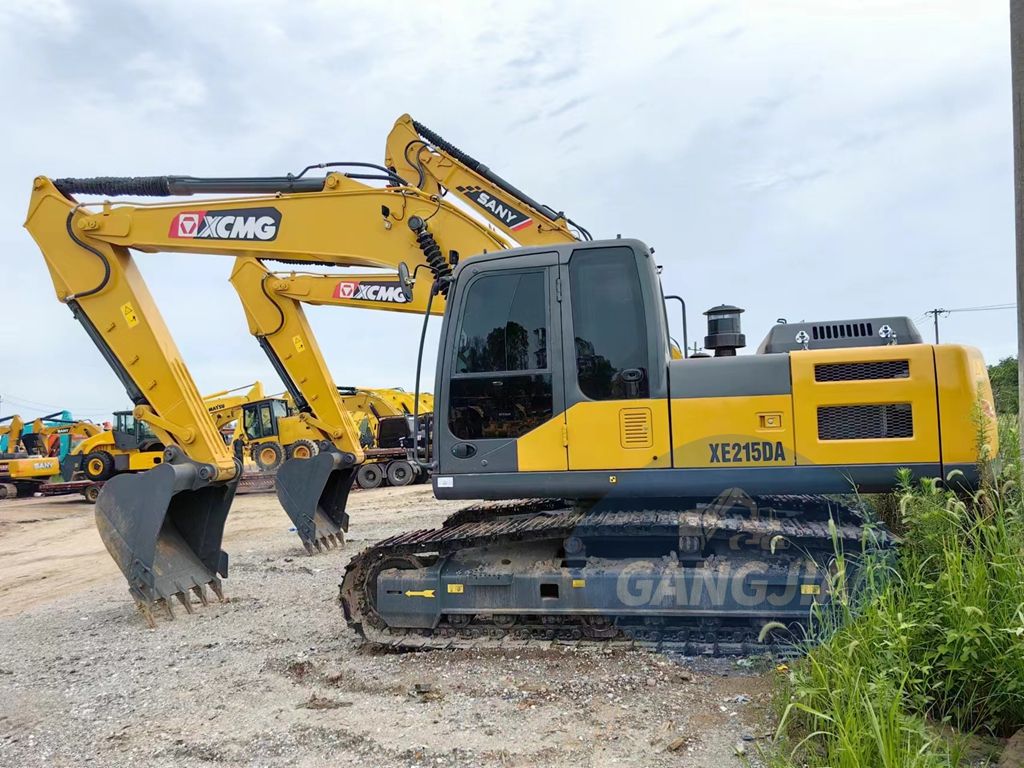

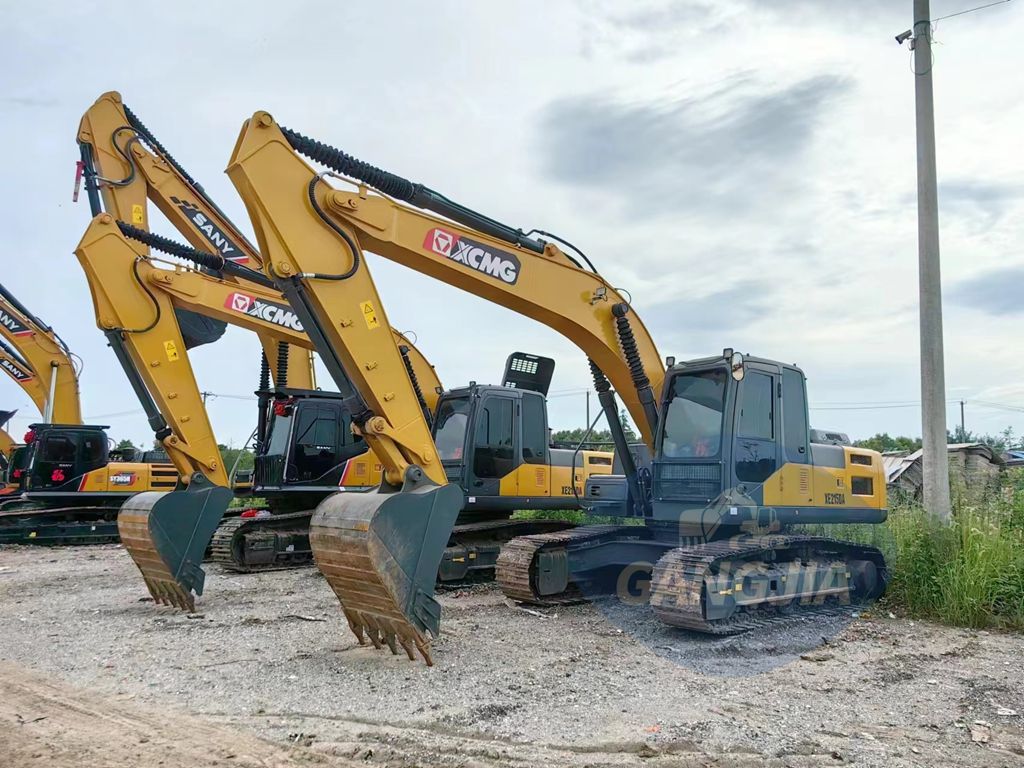

XCMG XE215D excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Domestic

Bucket backhoe

Tonnage (tons) 21

Operating weight of the whole machine (kg) 21900

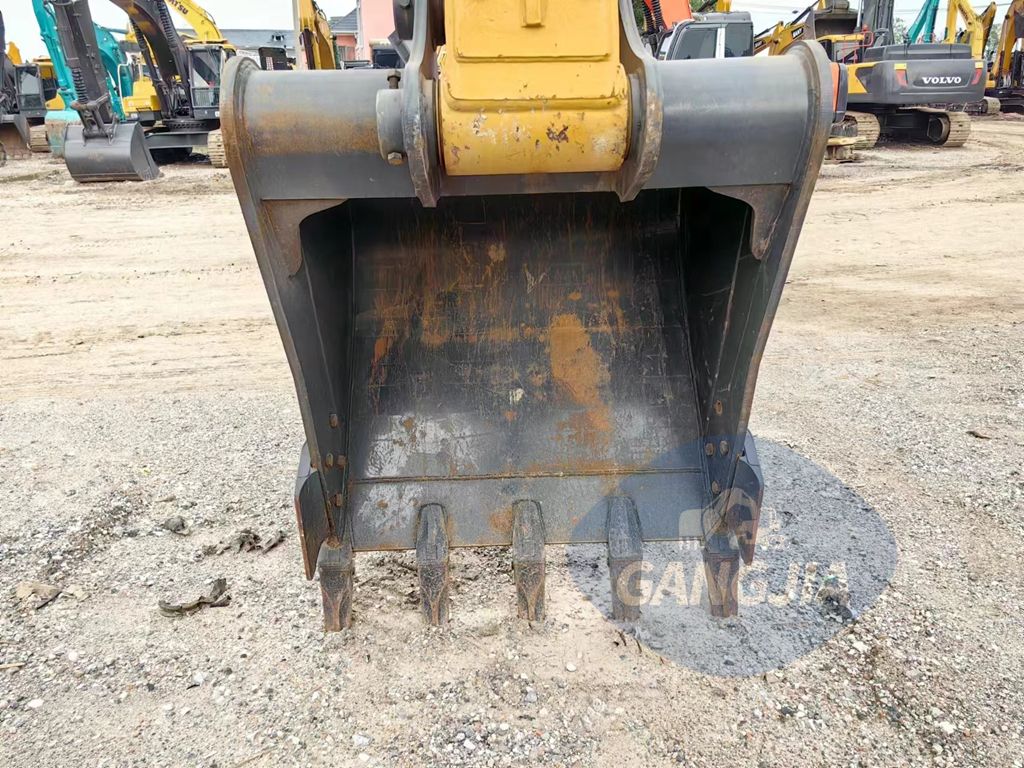

Bucket capacity (m³) 0.8-1.3

Boom length (mm) 5680

Arm length (mm) 2910

Origin Xuzhou

Performance

Slewing speed (rpm) 11.8

Travel speed (km/h) 5.4/3.1

Gradability (%) 35

Ground pressure (Kpa) 47.2

Bucket digging force (kN) 149

Arm digging force (kN) )111

Maximum traction (kN)184

Power system

Engine model QSB7

Rated power (kw/rpm)135/2050

Maximum torque (N.m)740/1250

Displacement (L)6.7

Number of cylinders (pieces)6

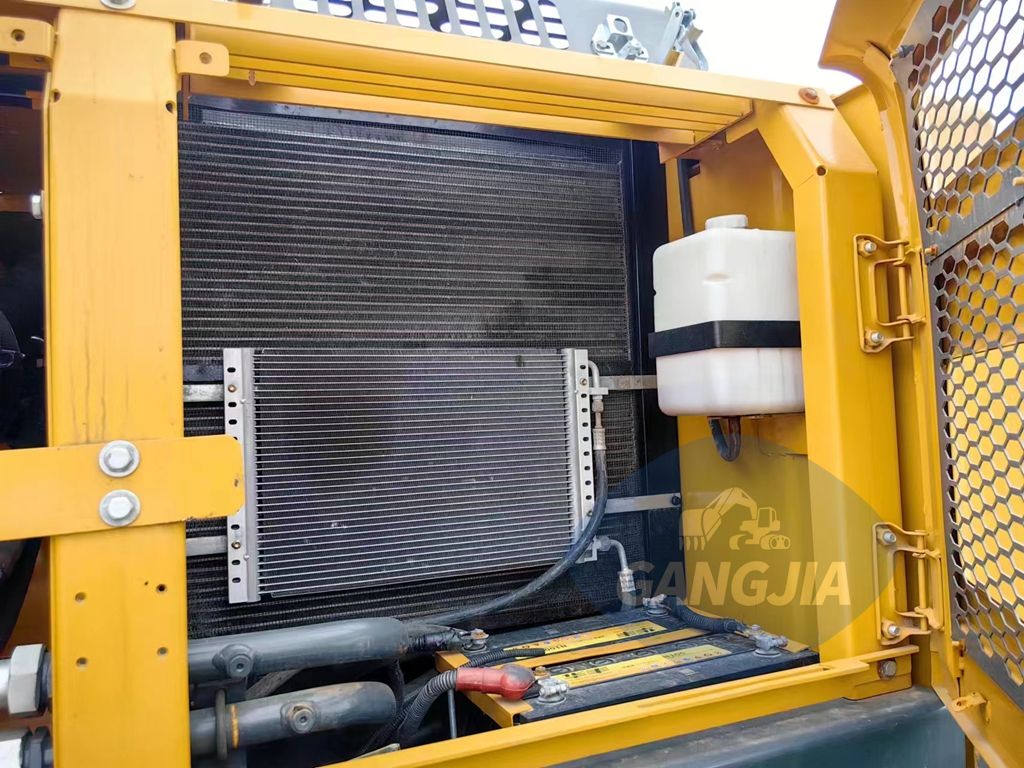

Cooling method Water cooling

Working mode Turbocharged

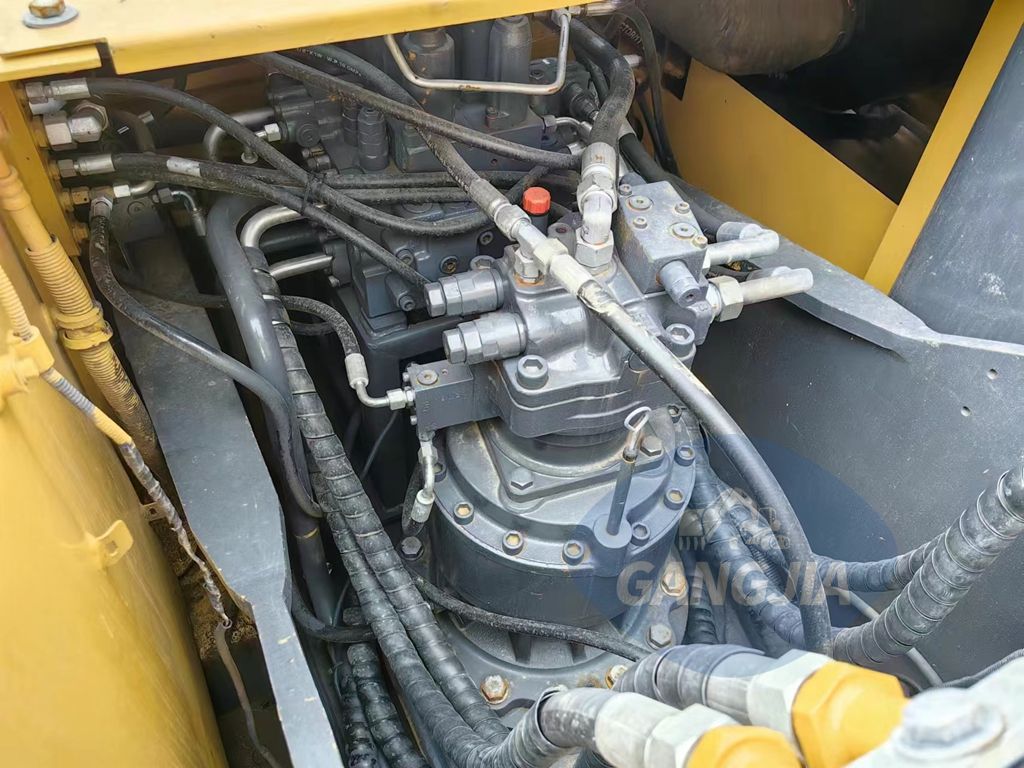

Hydraulic system

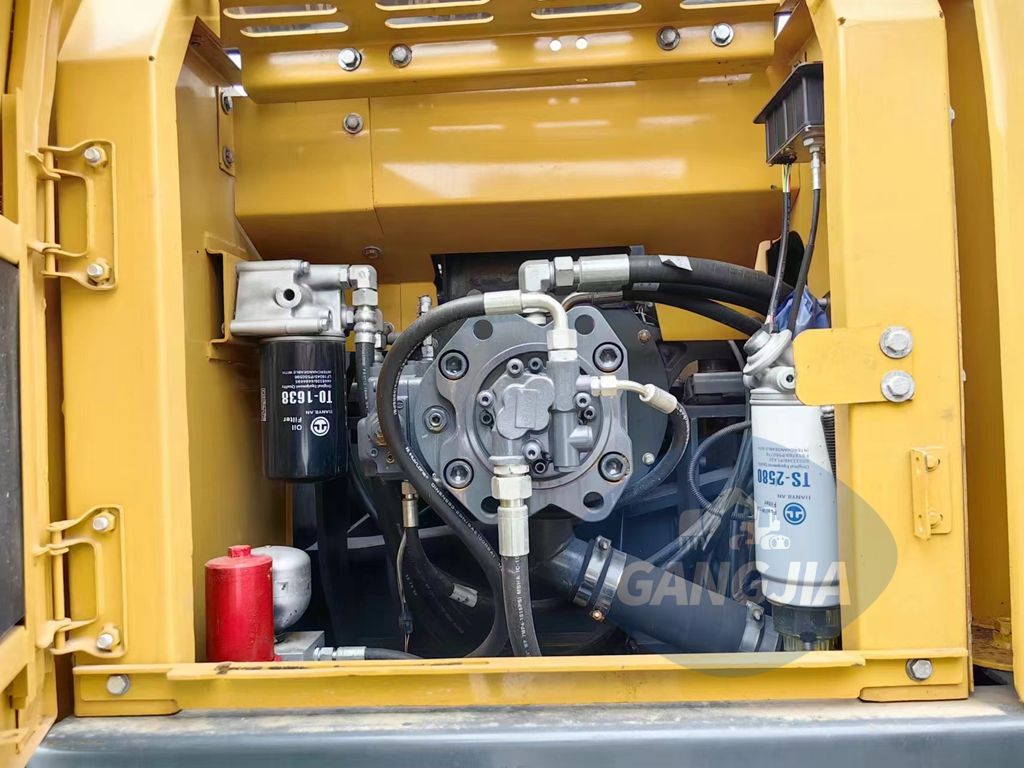

Main pump type 2 plunger pumps

Main pump maximum flow (l/min)2×225

Pilot oil circuit (MPa)3.9

Travel hydraulic circuit (Mpa)34.3

Slewing hydraulic circuit (Mpa )27.5

Main overflow set pressure (Mpa) 31.5/34.3

Is the hydraulic crushing pipeline standard?

Oil capacity

Fuel tank (L) 400

Hydraulic oil tank (L) 220

Engine oil replacement volume (L) 19.5

Main body size

Total length for transportation (mm) 9625

Total width for transportation (mm) 2990

Total height for transportation (mm) 3100

Onboard width (mm) 2830

Track ground length (mm) 3462

Total length of crawler (mm) 4255

Track shoe width (mm) 600

Track gauge (mm) 2390

Minimum ground clearance (mm) 476

Counterweight ground clearance (mm) 1050

Minimum turning radius of front working device (mm) 3530

Rear end turning radius (mm )2890

Operating range

Maximum digging radius (mm) 9940

Maximum digging depth (mm) 6680

Maximum digging height (mm) 9620

Maximum unloading height (mm) 6780

Maximum vertical digging depth (mm) 5715
