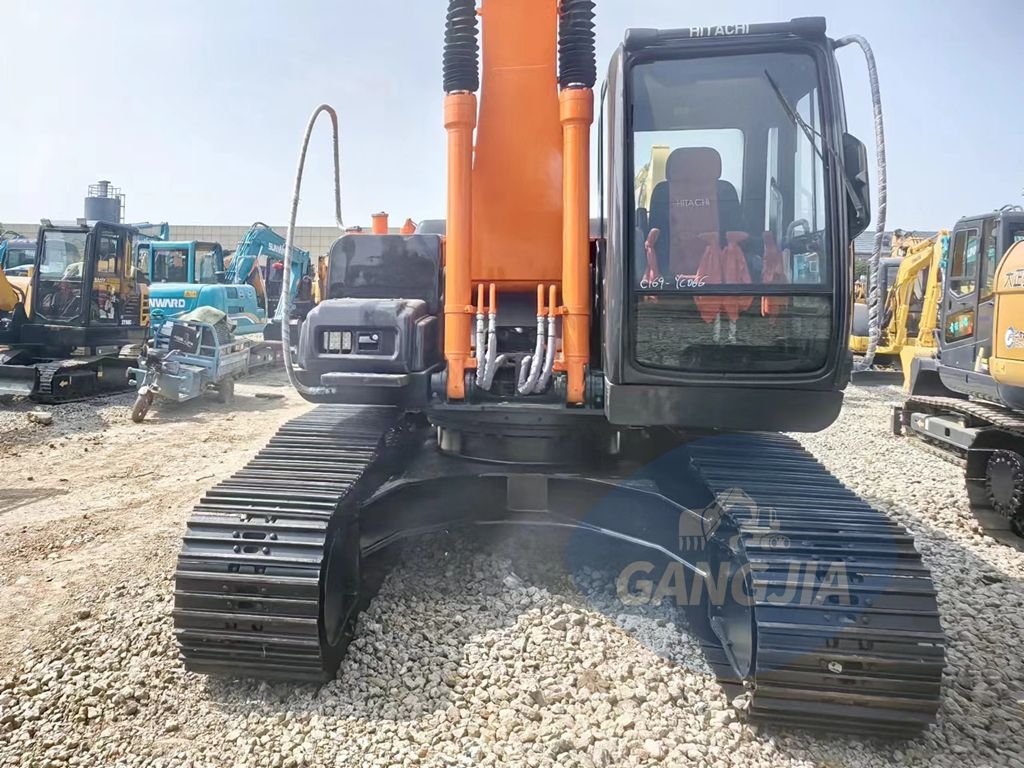

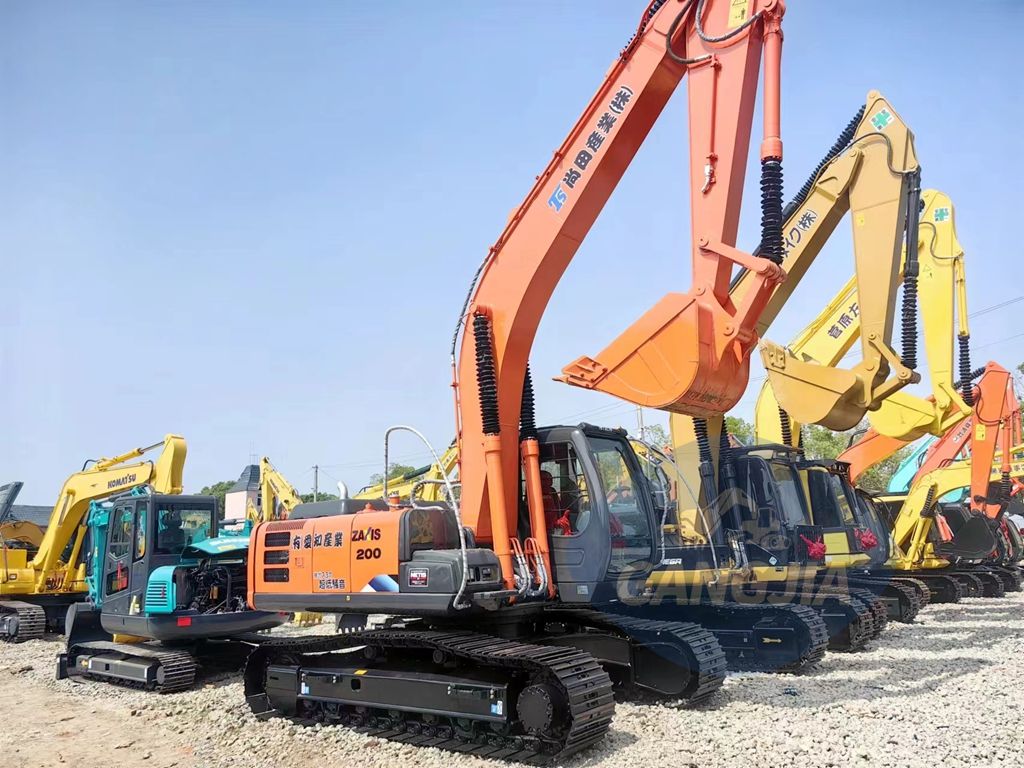

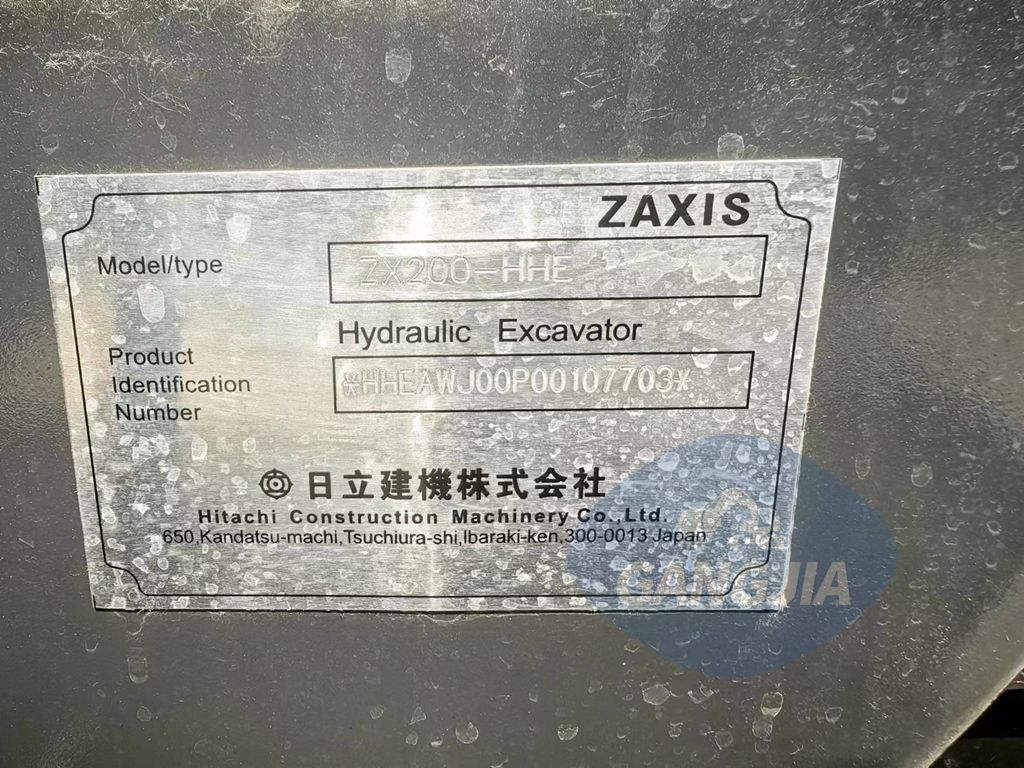

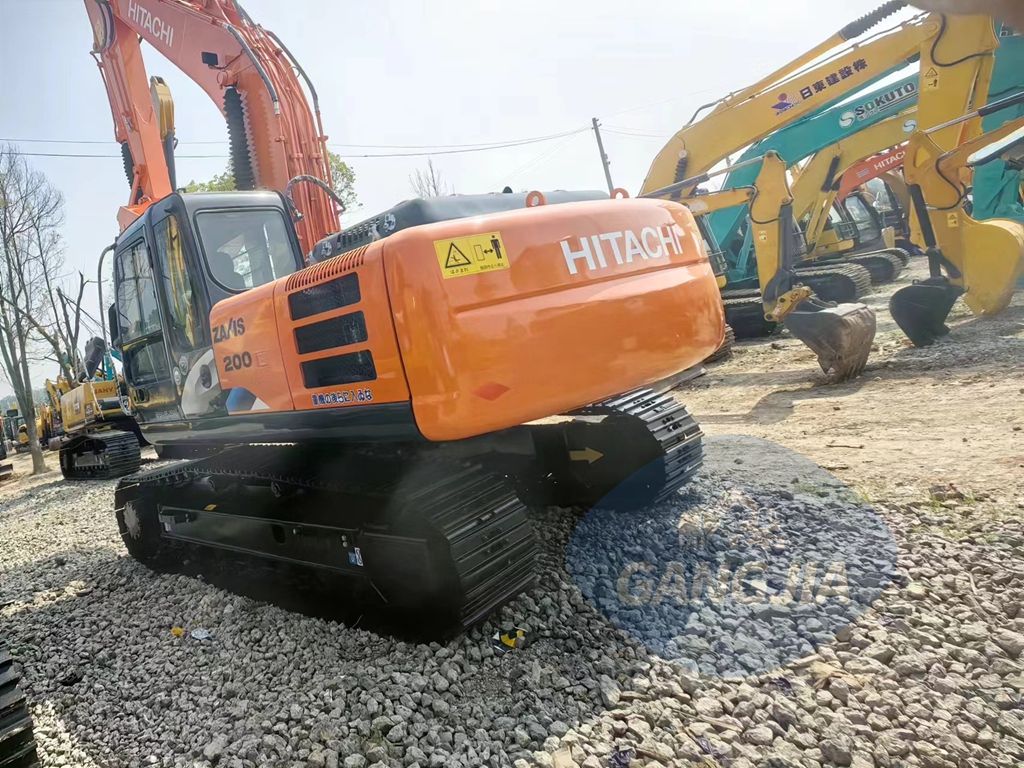

Hitachi ZX200 excavator parameter configuration
Specifications
Machine working weight (kg) 19400
Bucket capacity (m³) 0.8
Boom length (mm) 5680
Arm length (mm) 2910
Place of origin Japan
Tonnage (tons) 20
Power Traditional power
Bucket backhoe
Manufacturer joint venture/imported
Power Traditional power
Performance
Ground pressure (Kpa) 43
Slewing speed (rpm) 13.3
Travel speed (km/h) 3.4/5.5
Climbing ability (%) 70/35°
Power system

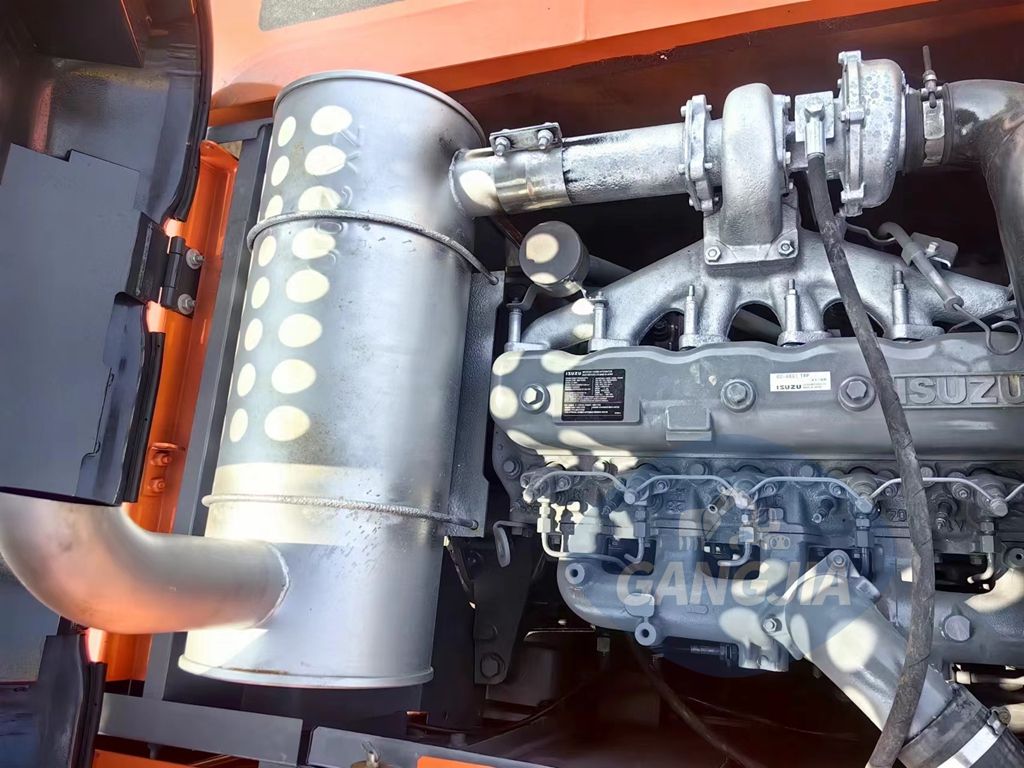

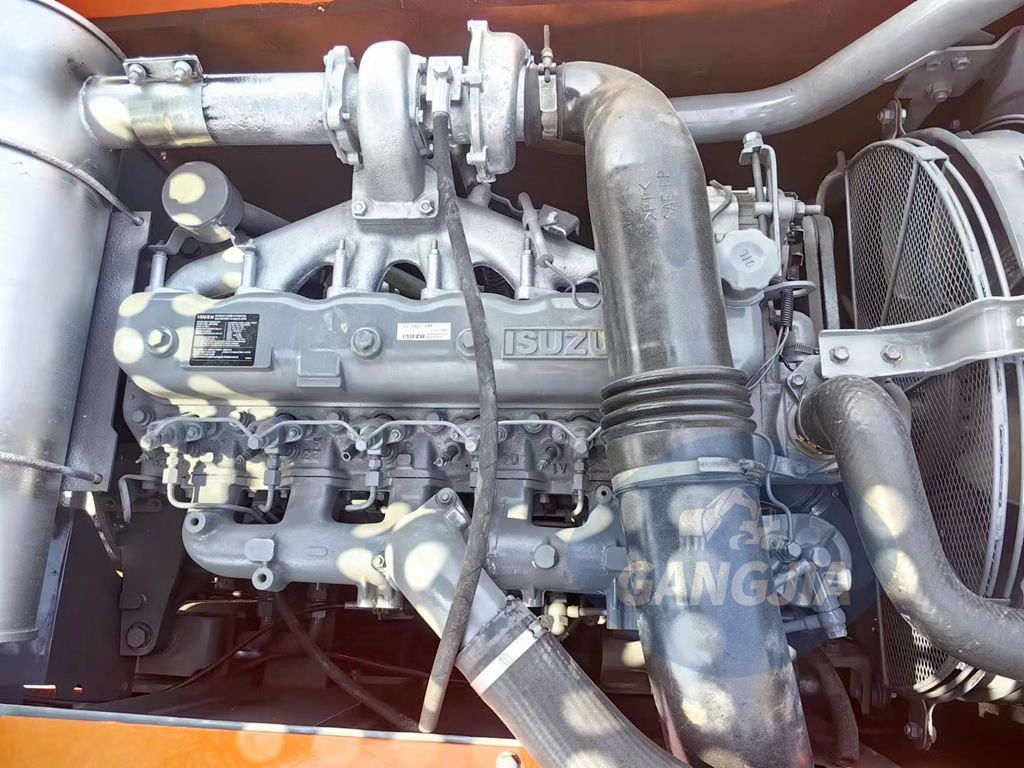

Engine model ISUZU AA-6BGIT
Rated power (kw/rpm) 109.6/2100
Displacement (L) 6.5
Number of cylinders (pieces) 6
Working mode Intercooling, turbocharged
Oil capacity
Fuel tank (L) 360
Hydraulic oil tank (L) 200
Engine oil replacement amount (L) 25
Coolant (L )23
Main dimensions
Total length for transport (mm) 9620
Total width for transport (mm) 2800
Total height for transport (mm) 3130
Total height of cab (mm) 2950
Counterweight ground clearance (mm) 1030
Track ground length (mm) 3370
Track shoe width (mm) 600
Total track width (mm) 2800
Track gauge (mm) 2200
Minimum ground clearance (mm) 450
Rear end turning radius (mm) 2750
Operating range
Maximum digging radius of parking surface (mm) 9750
Maximum digging depth (mm) 6670
Maximum digging height (mm) 9600
Maximum unloading height (mm) 6780
Maximum vertical digging depth (mm) 6050
