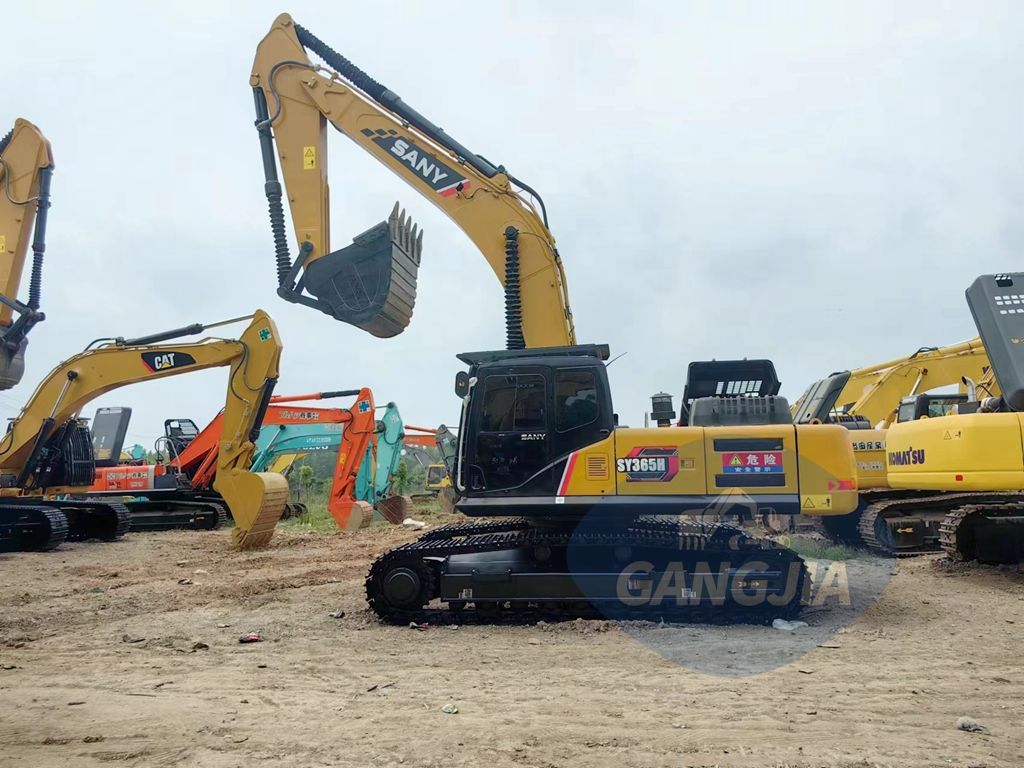

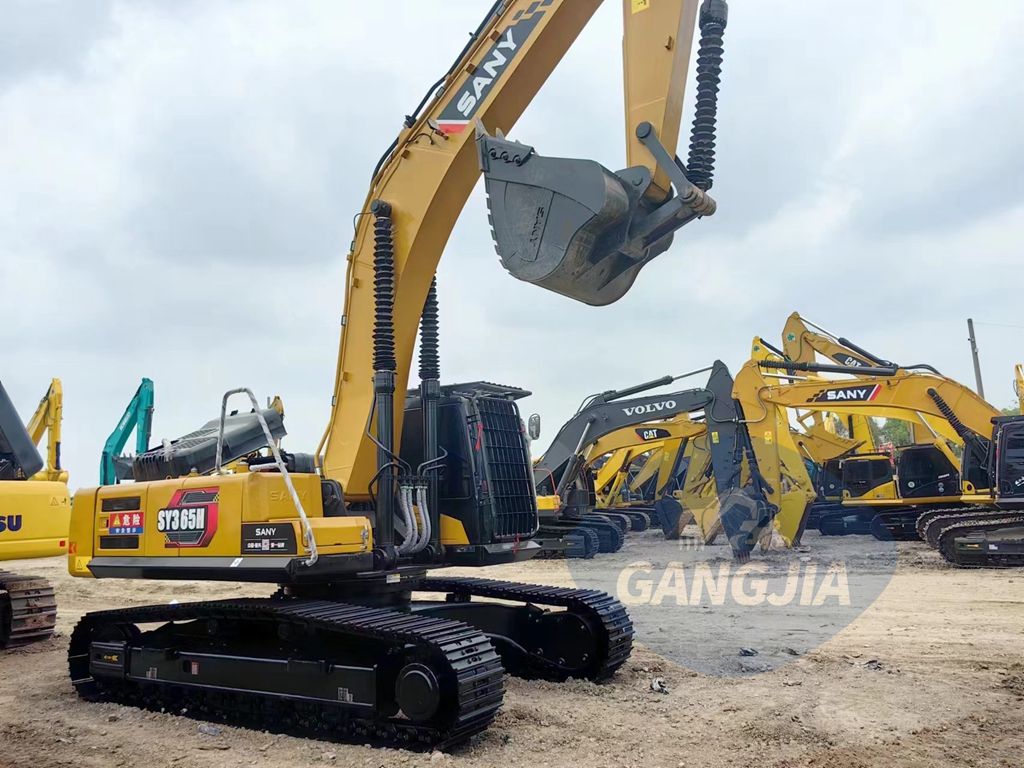

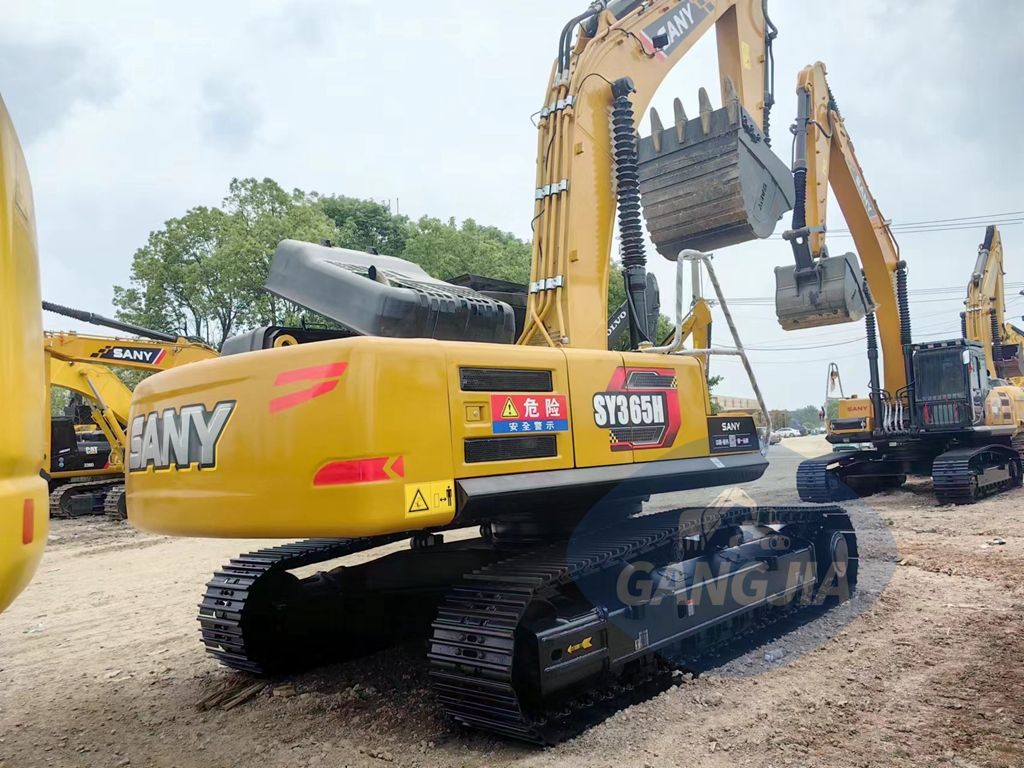

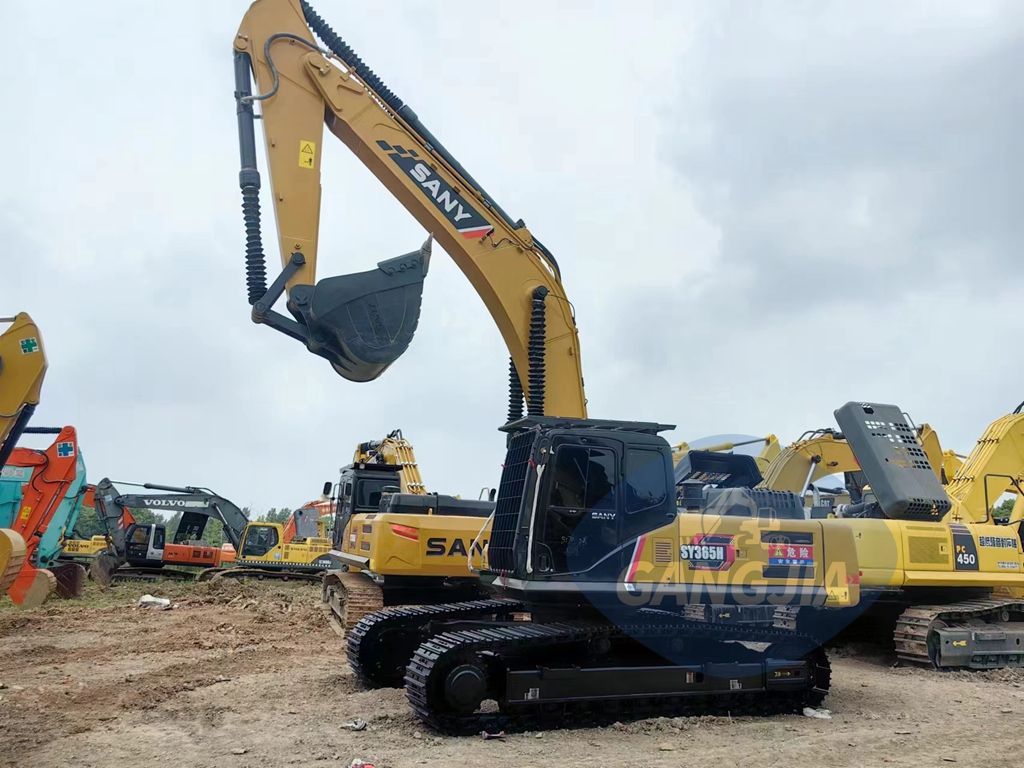

Sany Heavy Industry SY365H excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Domestic

Bucket backhoe

Tonnage (tons) 36

Operating weight of the whole machine (kg) 36000

Bucket capacity (m³) 1.6~2.32

Performance

Slewing speed (rpm) 9.5

Travel speed (km/h) 5.5/3.5

Gradability (%) 70% (35°)

Ground pressure (Kpa) 65

Bucket digging force (kN) 235

Arm digging force (kN) 180

Power system

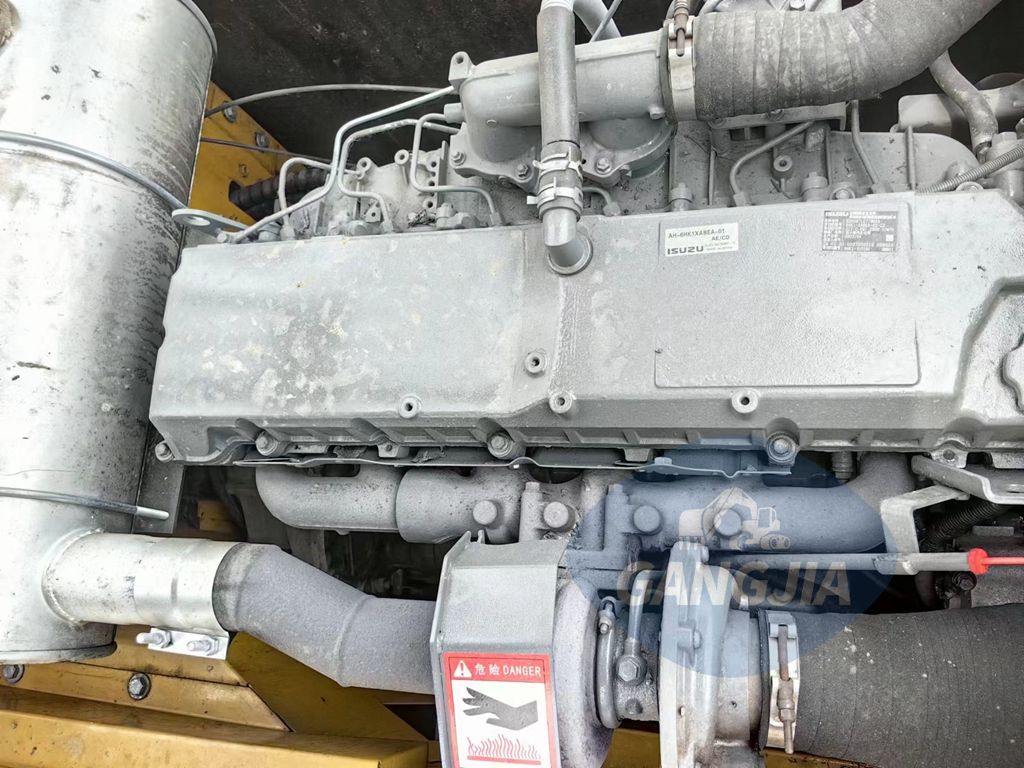

Engine model GH-6HK1XKSC

Rated power (kw/rpm) 212/2000

Maximum torque (N.m )1080/1500

Displacement (L)7.79

Cooling methodWater cooling

Oil capacity

Fuel tank (L)690

Hydraulic oil tank (L)380

Engine oil change volume (L)36

Main body dimensions

Total length for transportation (mm)11530

Total width for transportation (mm)3190

Total height for transportation (mm)3545

Total height of cab (mm)3320

Onboard width (mm)3150

Track ground length (mm)4140

Total length of crawler (mm)5065

Track shoe width (mm)600

Track gauge (mm)2590

Minimum ground clearance (mm )550

Minimum turning radius of front working device (mm)4495

Rear end turning radius (mm)3560

Maximum height at minimum turning radius (mm)8600

Number of chain rollers (single side) (pcs)2

Number of track shoes (single side) (pcs)49

Number of supporting rollers (single side) (pcs)9

Operating range

Maximum digging radius (mm)10780

Maximum digging depth (mm)7050

Maximum digging height (mm)9890

Maximum unloading height (mm)6920

Maximum vertical digging depth (mm)3970
