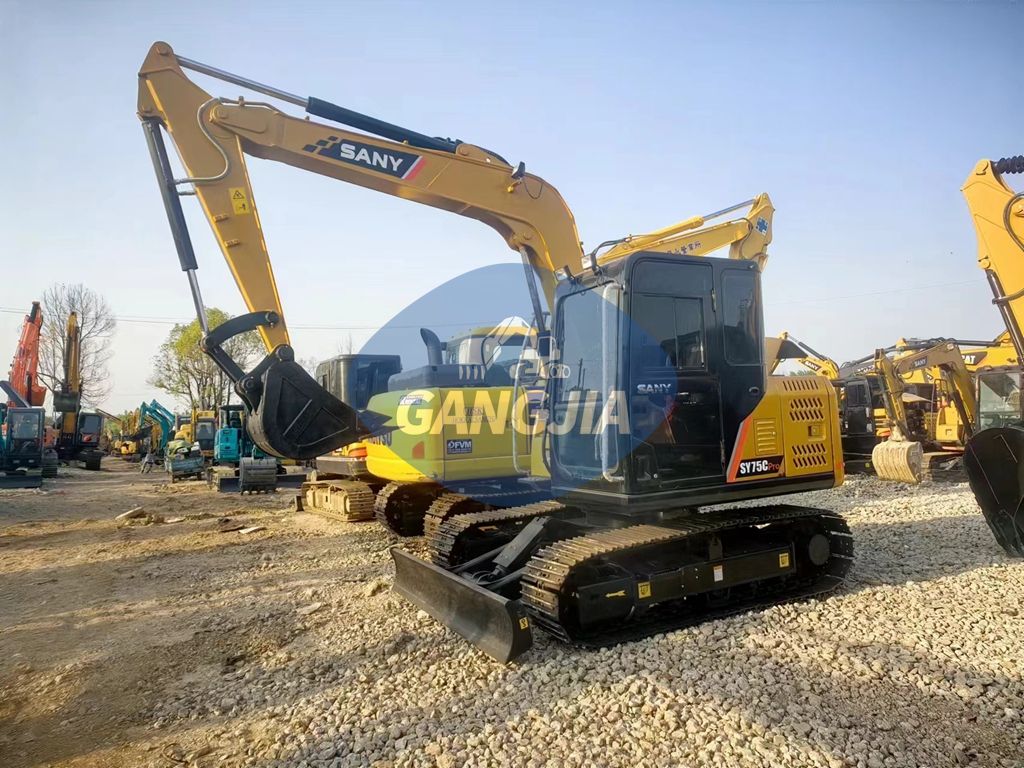

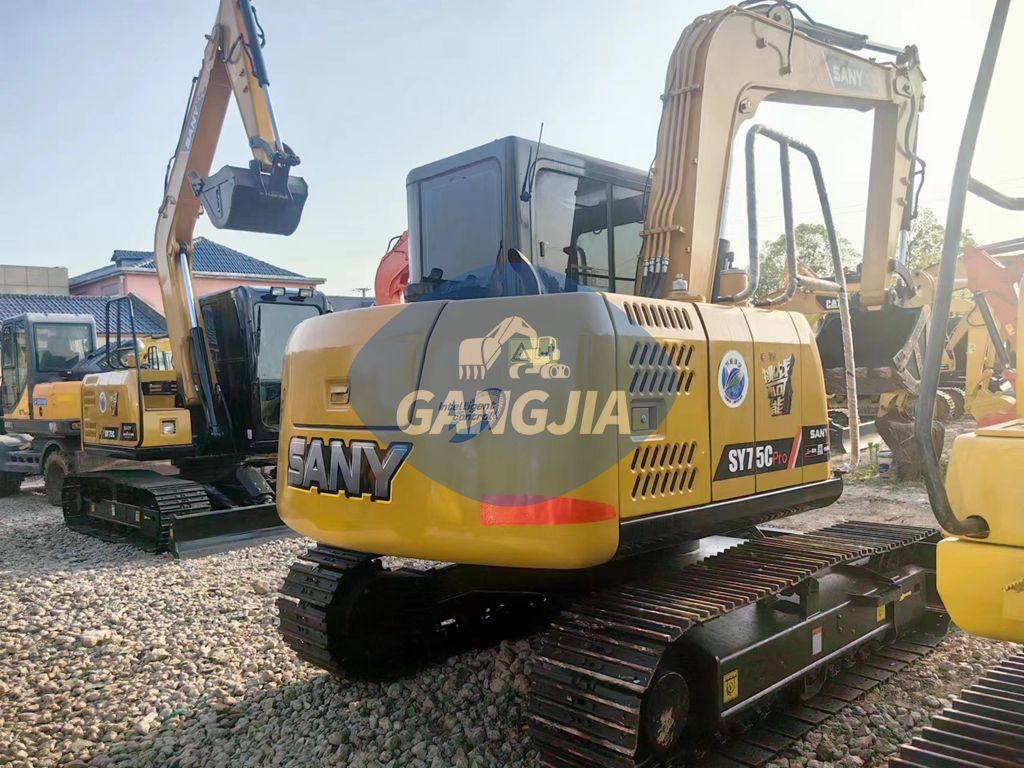

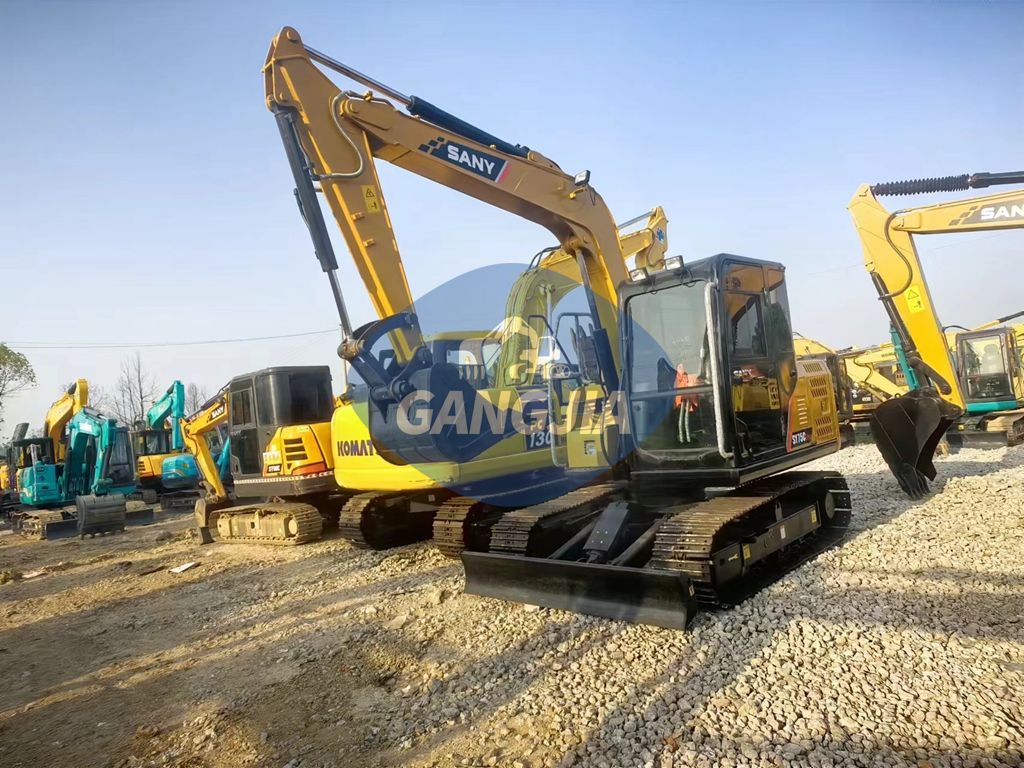

Sany Heavy Industry SY75C excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Domestic

Bucket backhoe

Tonnage (tons) 7

Machine working weight (kg) 7280

Bucket capacity (m³) 0.12~0.32

Performance

Slewing speed (rpm) 11.5

Travel speed (km/h) 4.4/2.4

Gradability (%) 70% (35°)

Ground pressure (Kpa) 33

Bucket digging force (kN) 56

Arm digging force (kN) 38

Power system

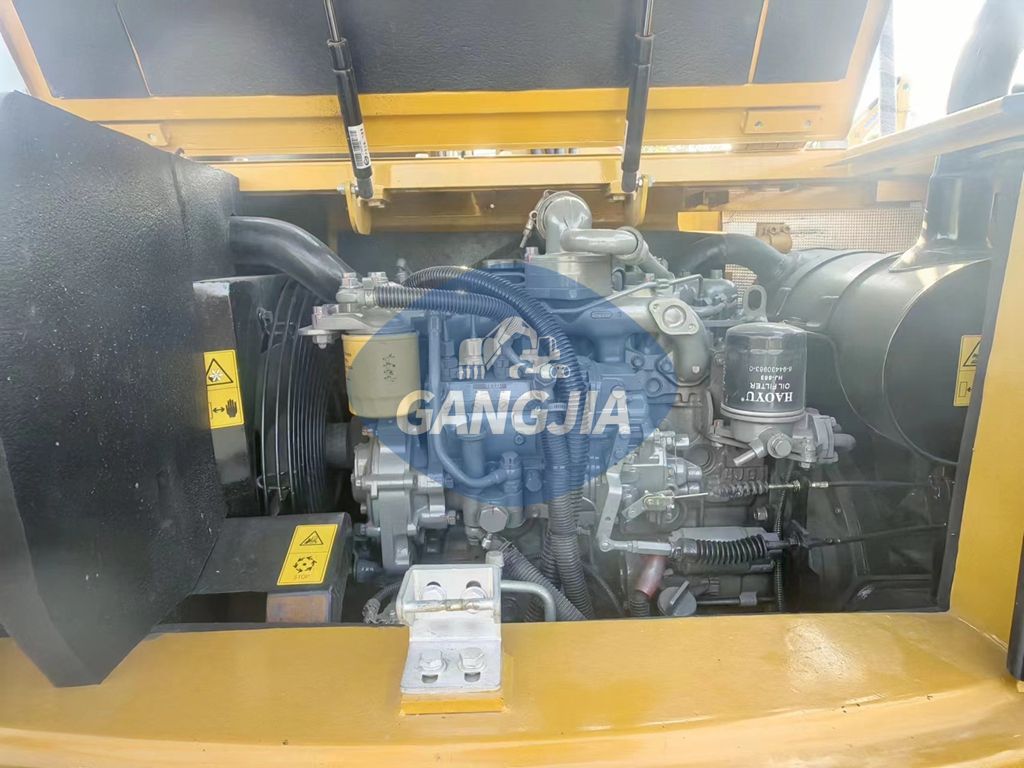

Engine model Isuzu AU-4LE2X

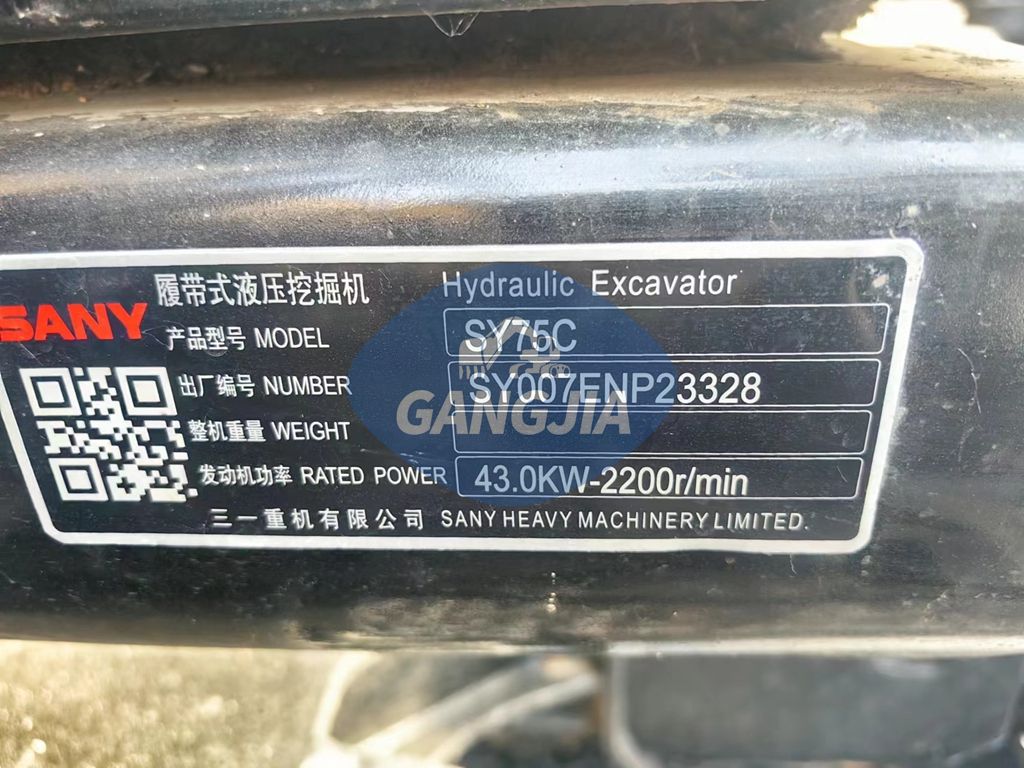

Rated power (kw/rpm) 43/2200

Maximum torque (N.m) 200/1600

Displacement (L) 2.179

Number of cylinders (pieces) 4

Cooling method Water cooling

Oil capacity

Fuel tank (L) 150

Hydraulic oil tank (L) 120

Engine oil change volume (L) 9.5

Main body dimensions

Total transport length (mm) 6120

Total transport width (mm) 2220

Total transport height (mm) 2720

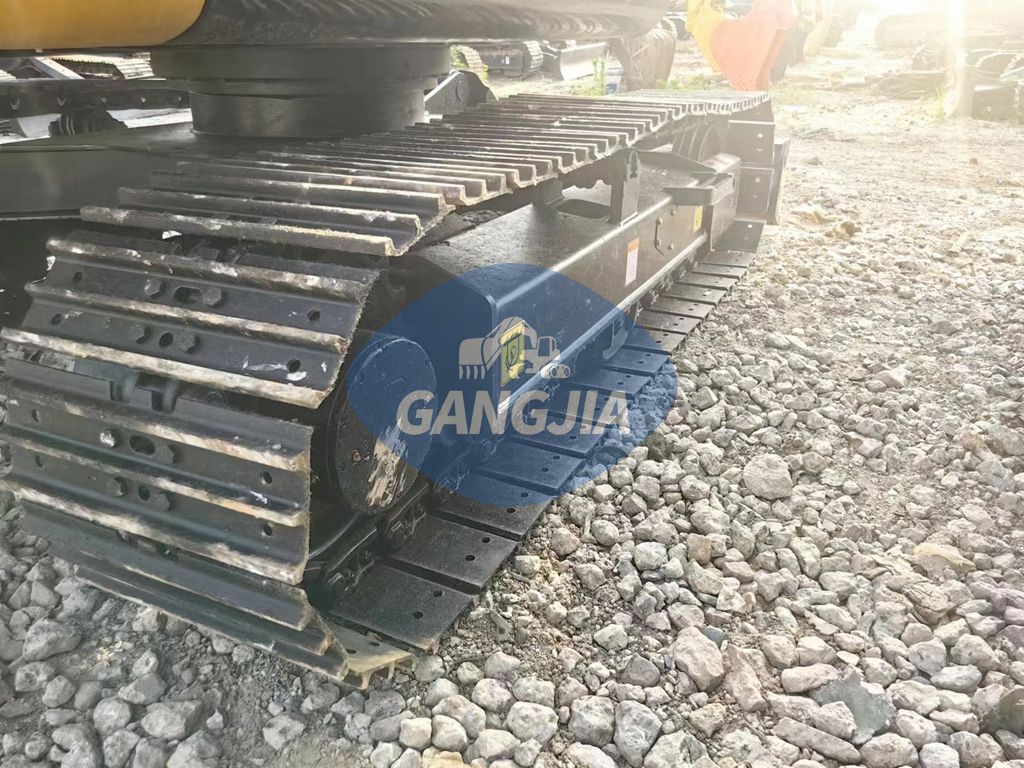

Track ground length (mm) 2195

Total track length (mm) 2820

Track shoe width (mm) 450

Track gauge (mm) 1750

Minimum ground clearance (mm) )380

Rear end turning radius (mm) 1800

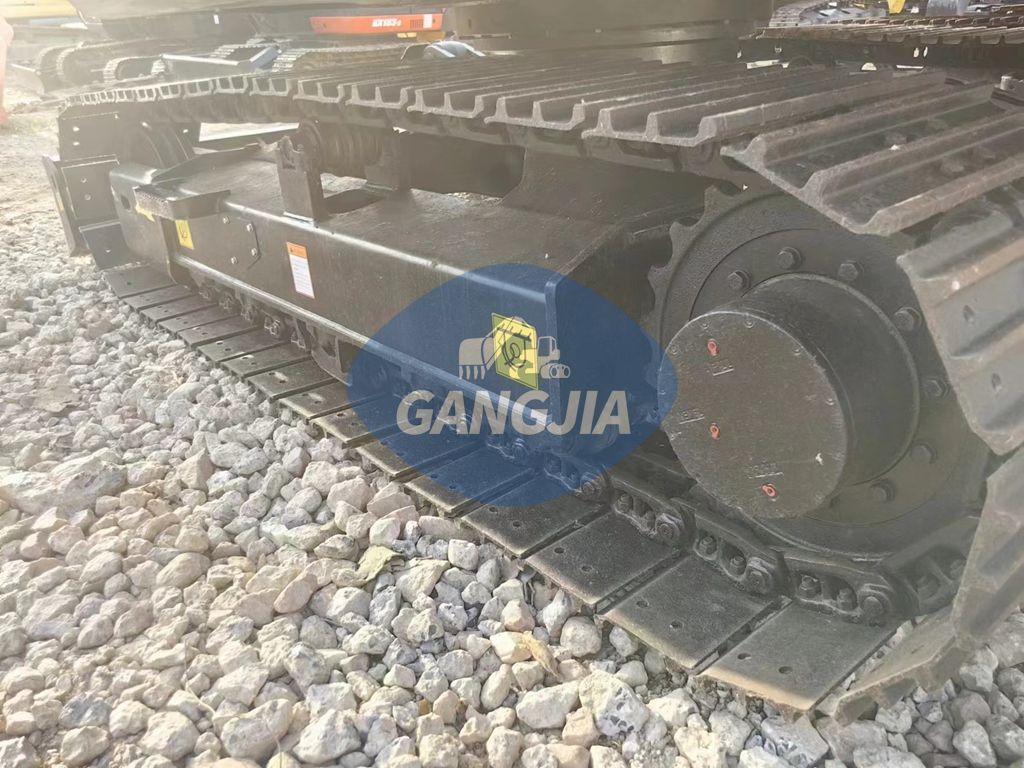

Number of sprocket wheels (single side) (pcs) 1

Number of track shoes (single side) (pcs) 39

Number of supporting wheels (single side) (pcs) 5

Operating range

Maximum digging radius (mm) 6240

Maximum digging depth (mm) 4020

Maximum digging height (mm) 7060

Maximum unloading height (mm) 5155

Maximum vertical digging depth (mm) 3290

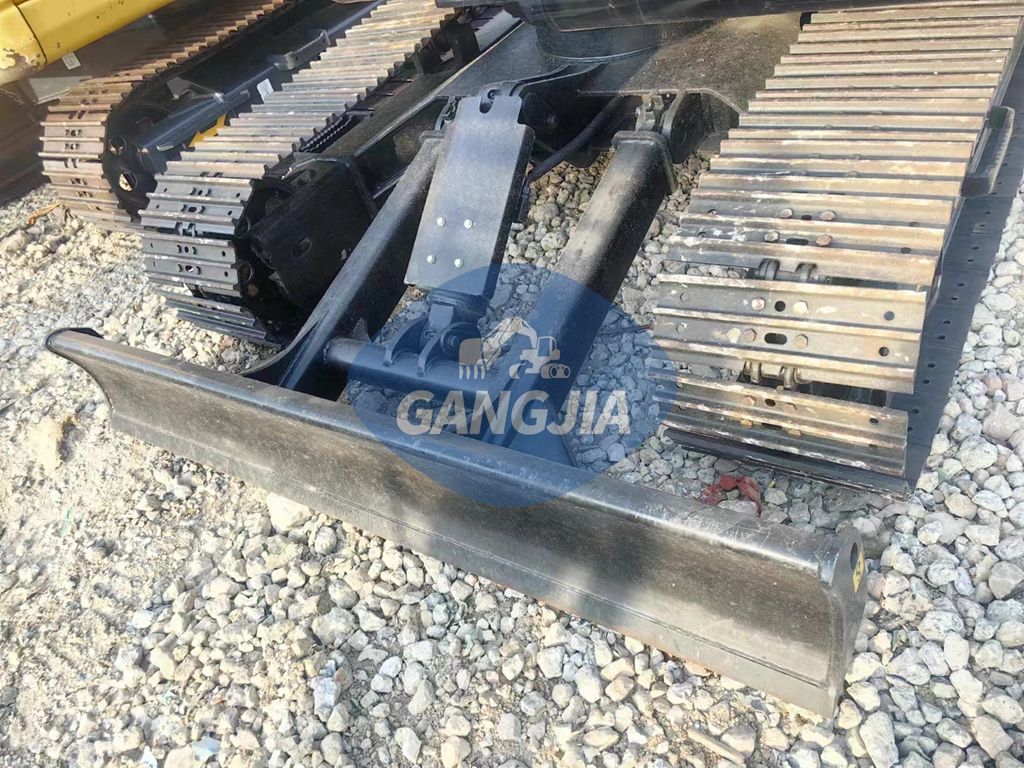

Bulldozer lifting or pushing depth (mm) 350/360
