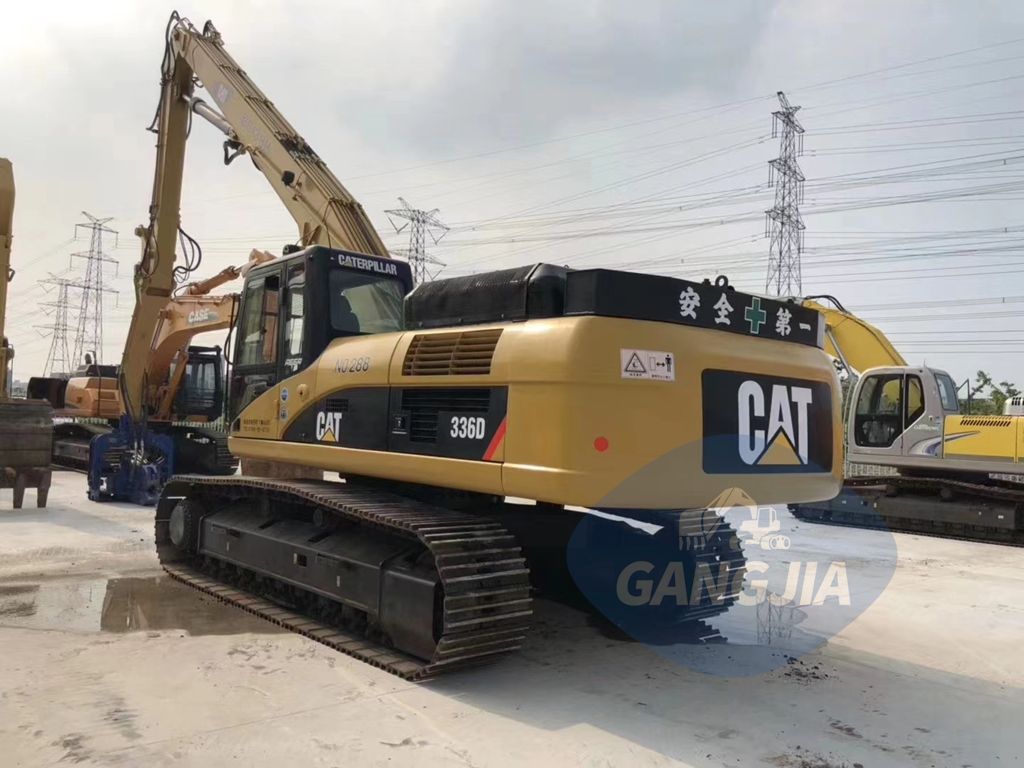

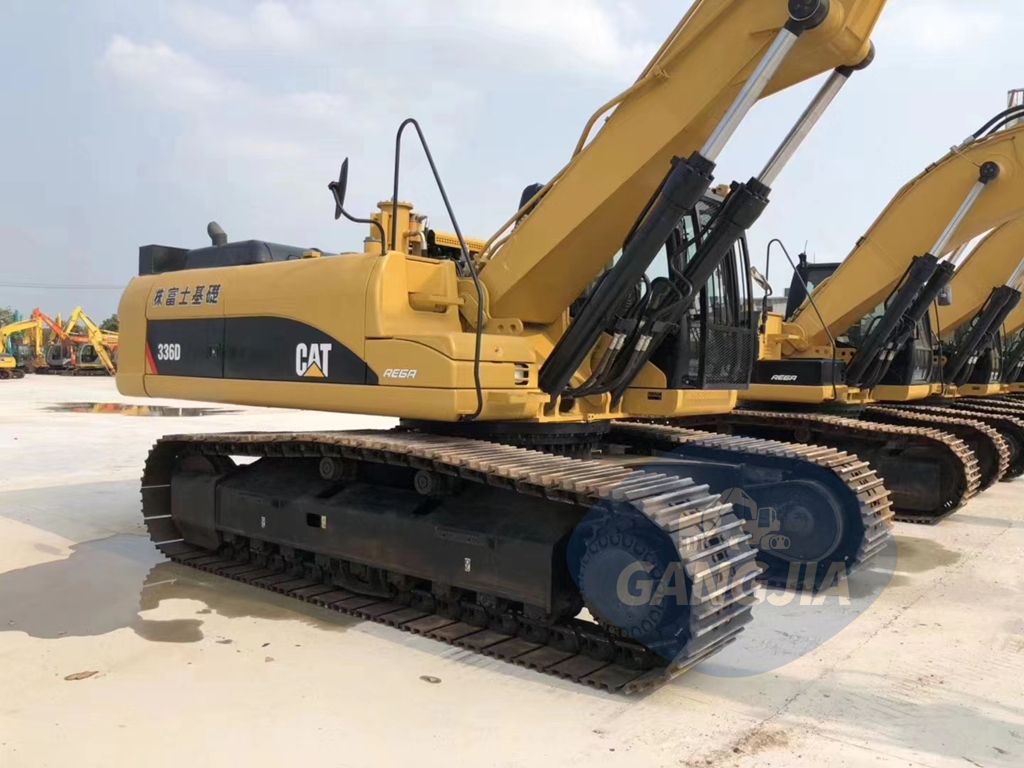

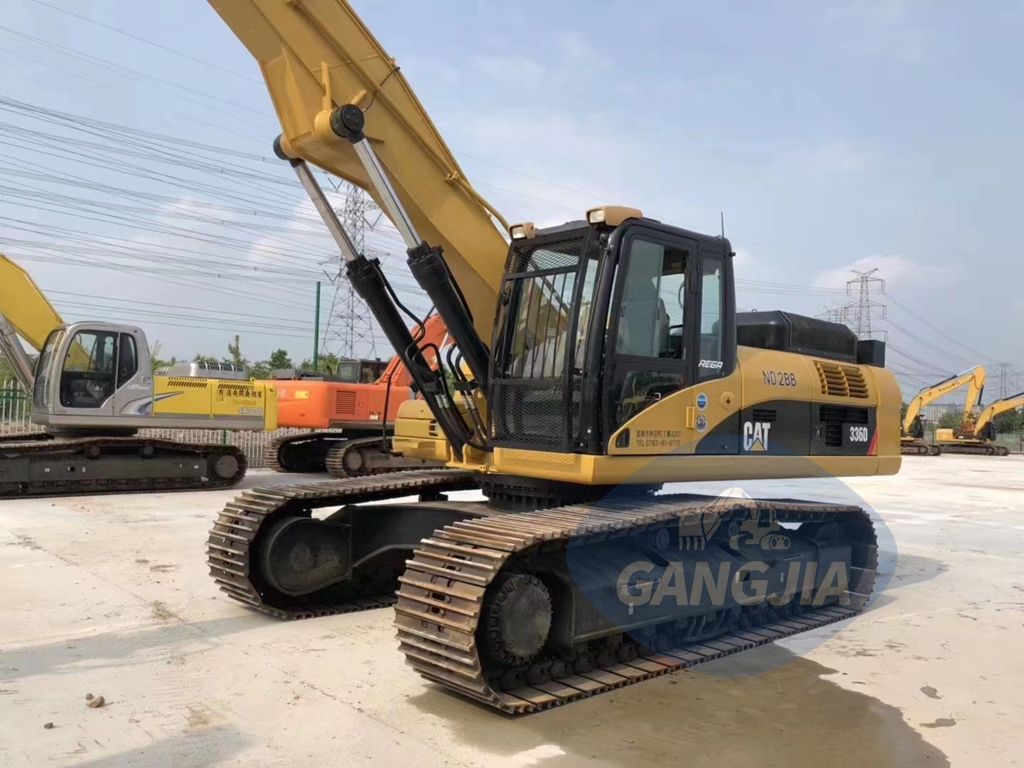

Caterpillar's new generation CAT®336 hydraulic excavator parameter configuration

Specification

Power traditional power

Domestic manufacturer

bucket backhoe

Tonnage (tons) 36

Machine working weight (kg) 37100

Bucket capacity (m³)2.12 (rock bucket)

Boom length (mm) 6500

Dipper length (mm) 3200

performance

Rotation speed (rpm)8.84

Rotary torque (Nm) 143k

Walking speed (km/h)4.7

Bucket digging force (kN) 209

Digging force of stick (kN) 166

Maximum traction force (kN)302.5

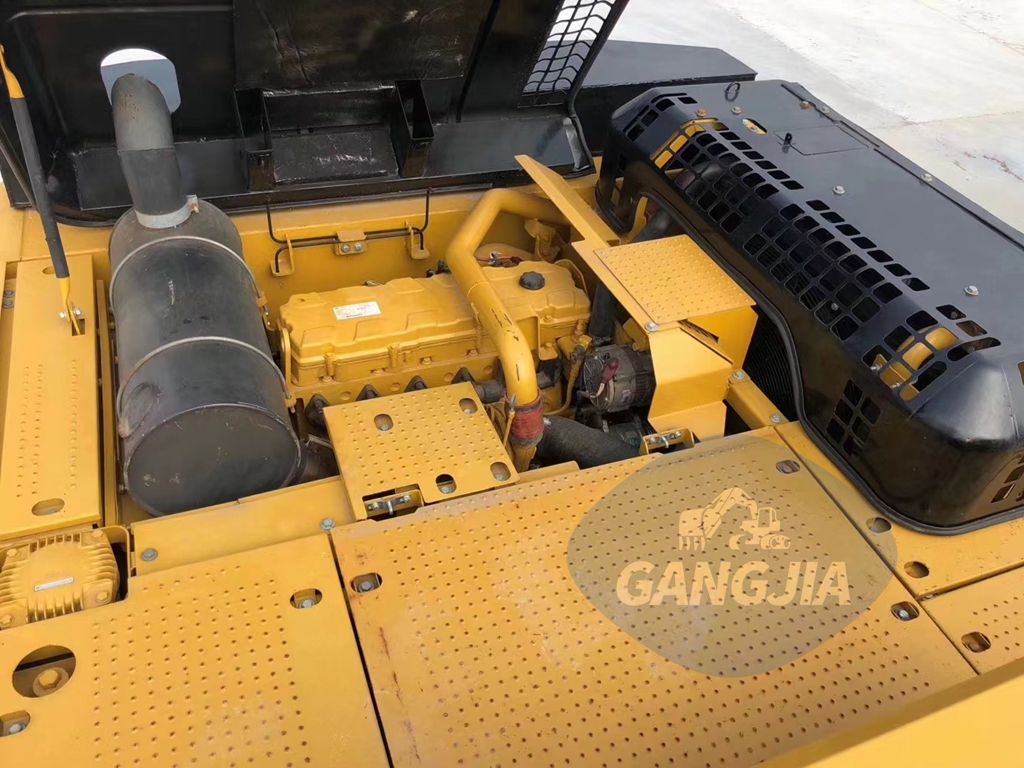

power system

Engine model C7.1 TTA

Rated power (kw/rpm)225/2000

Displacement(L)7.01

Bore size × stroke (mm) 105*135

Emission Standard Country IV

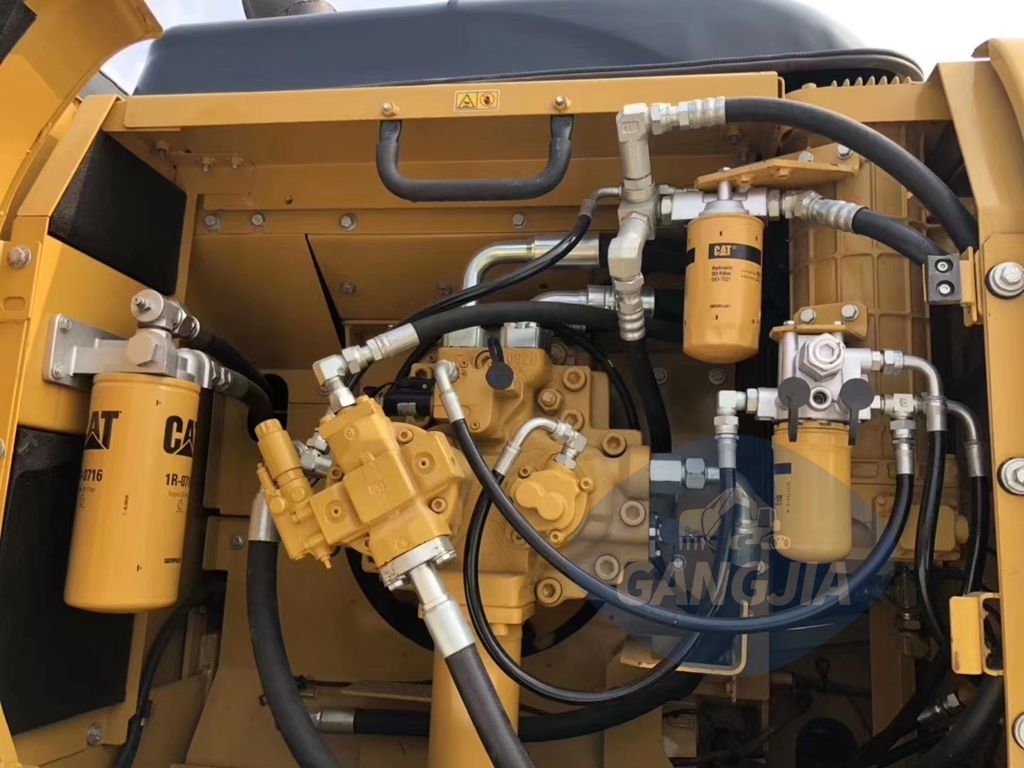

Hydraulic system

Maximum flow rate of main pump (l/min) 560

Working hydraulic oil circuit (Mpa) 35

Travel hydraulic circuit (Mpa) 35

Rotary hydraulic circuit (Mpa) 29.4

oil capacity

Fuel tank (L) 600

Hydraulic oil tank (L)161

Hydraulic system(L)373

Engine oil replacement volume (L) 25

Coolant (L) 39

Body size

Total transportation length (mm) 11170

Total transportation width (mm) 3340

Total transportation height (mm) 3180

Total track length (mm) 5030

Track shoe width (mm) 600

Track gauge (mm) 2740

Counterweight ground clearance (mm) 1260

Minimum ground clearance (mm) 510

Rear end turning radius (mm) 3530

Scope of work

Maximum excavation radius (mm) 11110

Maximum digging depth (mm) 7560

Maximum digging height (mm) 10340

Maximum unloading height (mm) 7040

Maximum vertical excavation depth (mm) 5860
