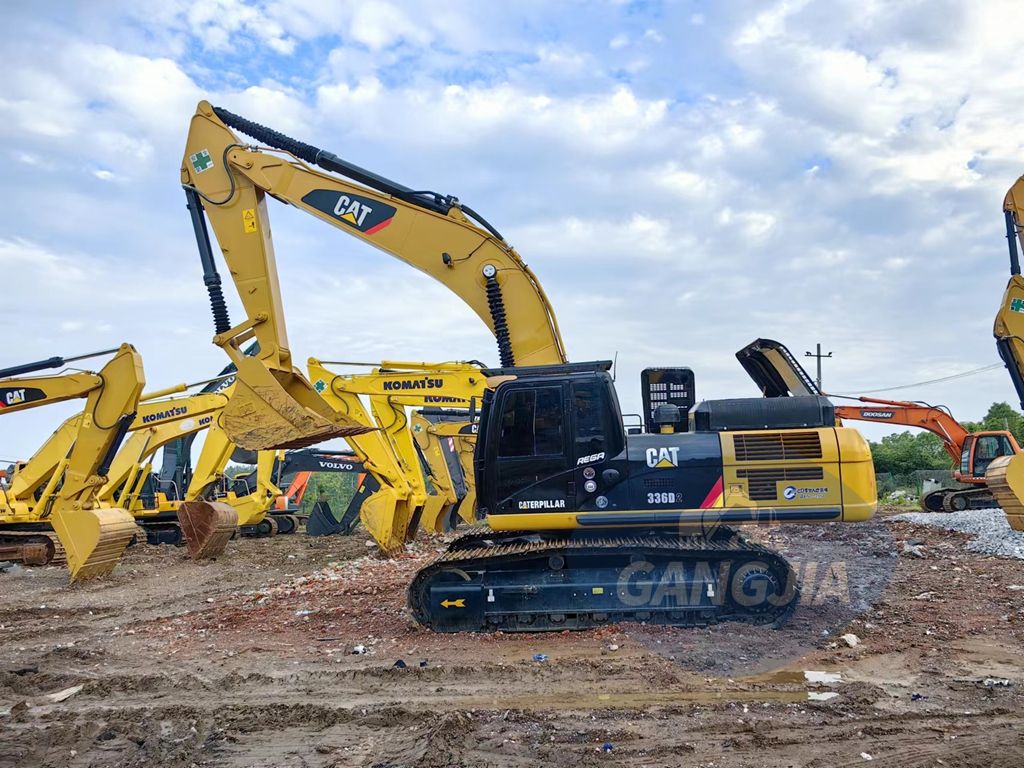

Caterpillar's new generation CAT®336 hydraulic excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Domestic

Bucket backhoe

Tonnage (tons) 36

Machine operating weight (kg) 37100

Bucket capacity (m³) 2.12 (rock bucket)

Boom length (mm) 6500

Arm length (mm) 3200

Performance

Slewing speed (rpm) 8.84

Slewing torque (Nm) 143k

Travel speed (km/h) 4.7

Bucket digging force (kN) 209

Arm digging force (kN) 166

Maximum traction force (kN) 302.5

Power system

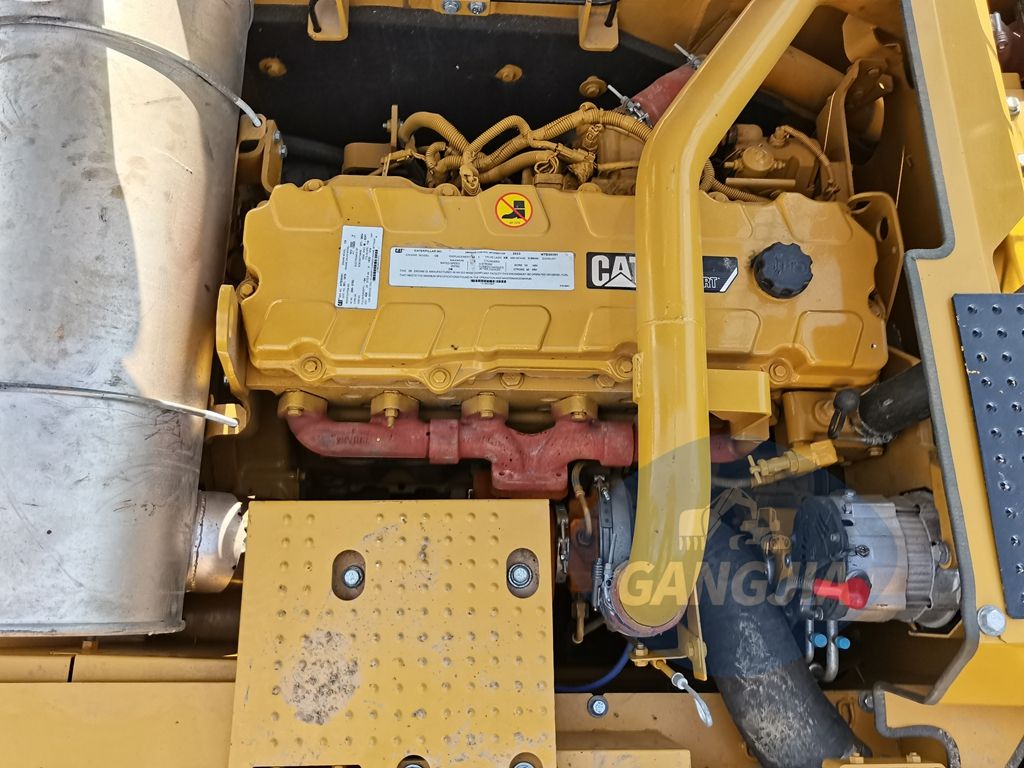

Engine model C7.1 TTA

Rated power (kw/rpm) 225/2000

Displacement (L) 7.01

Cylinder diameter × stroke (mm) 105*135

Emission standard National IV

Hydraulic system

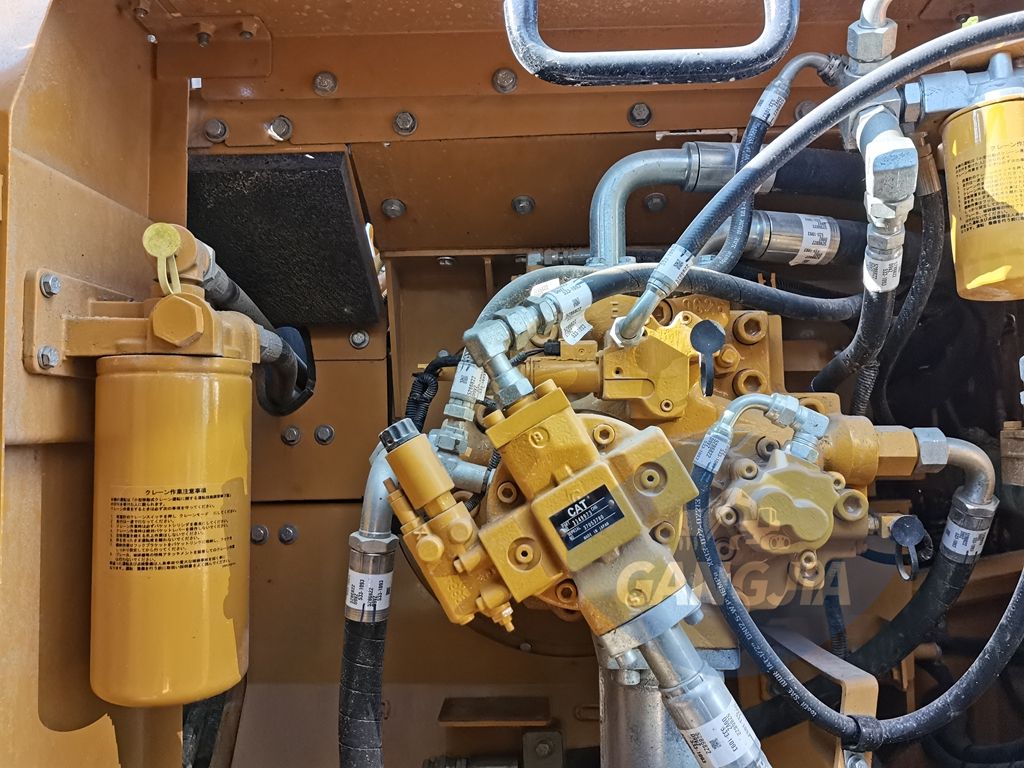

Maximum flow of main pump (l/min) 560

Working hydraulic oil circuit (Mpa) 35

Travel hydraulic circuit (Mpa) 35

Slewing hydraulic circuit (Mpa) 29.4

Oil capacity

Fuel tank (L) 600

Hydraulic oil tank (L) 161

Hydraulic system (L) 373

Engine oil replacement amount (L) 25

Coolant (L) 39

Main body dimensions

Total transport length (mm) 11170

Total transport width (mm) 3340

Total transport height (mm) 3180

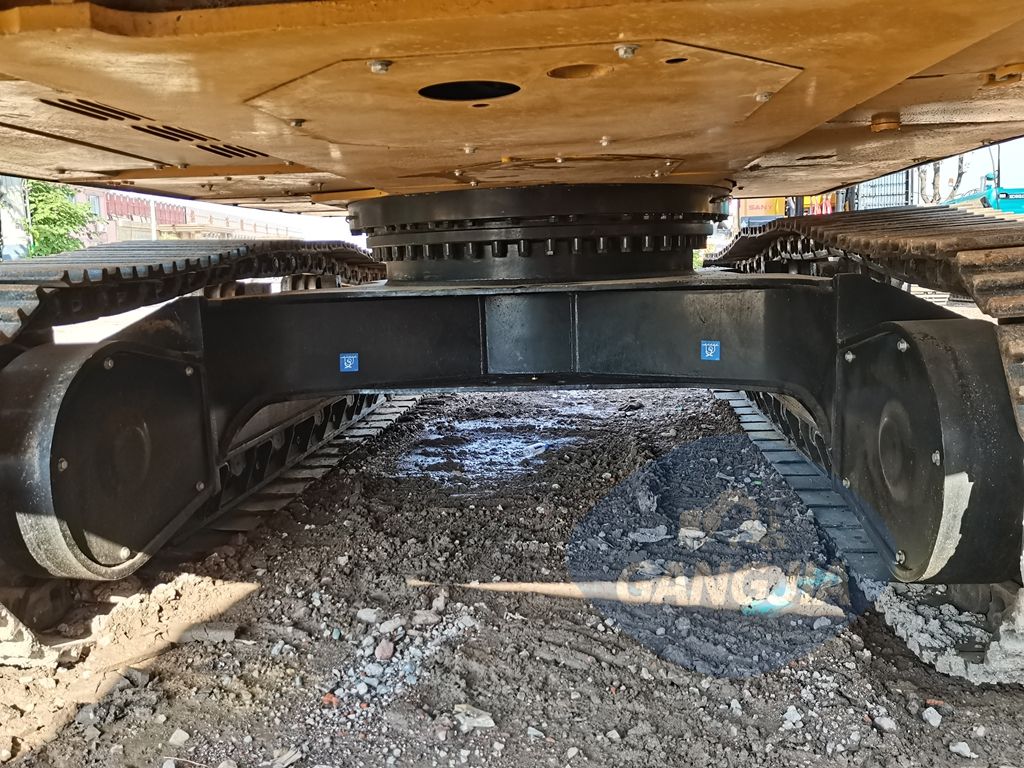

Total track length (mm) 5030

Track shoe width (mm) 600

Track gauge (mm) 2740

Counterweight ground clearance (mm) 1260

Minimum ground clearance (mm )510

Rear end turning radius (mm) 3530

Operating range

Maximum digging radius (mm) 11110

Maximum digging depth (mm) 7560

Maximum digging height (mm) 10340

Maximum unloading height (mm) 7040

Maximum vertical digging depth (mm) 5860
