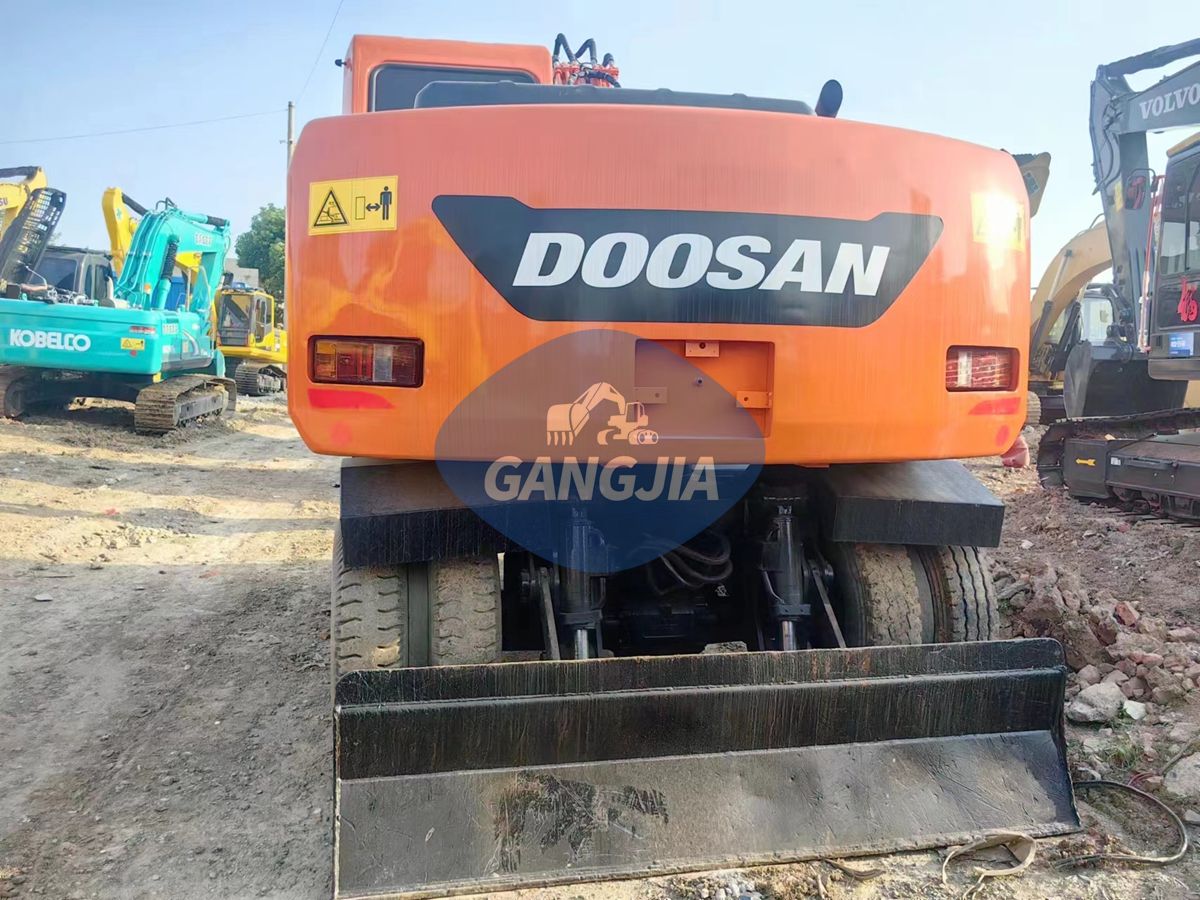

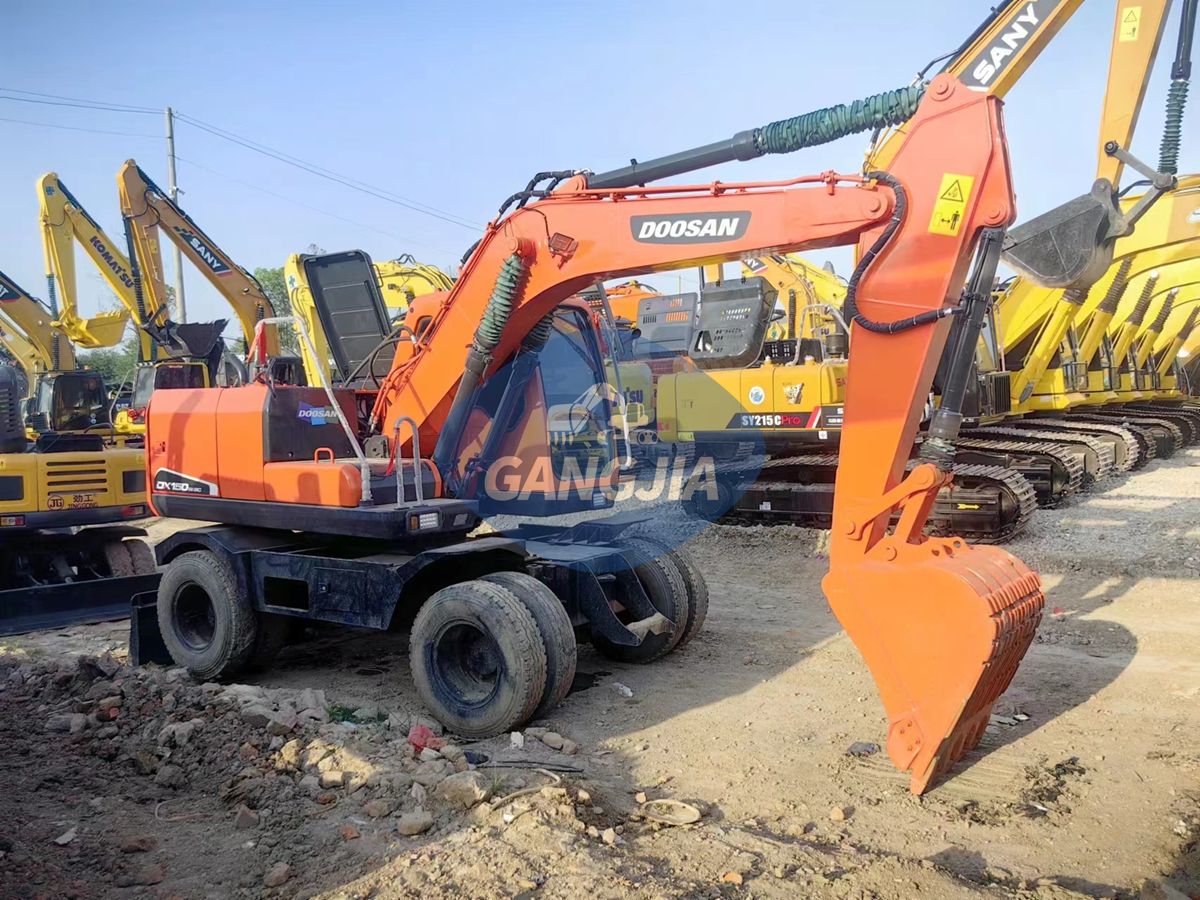

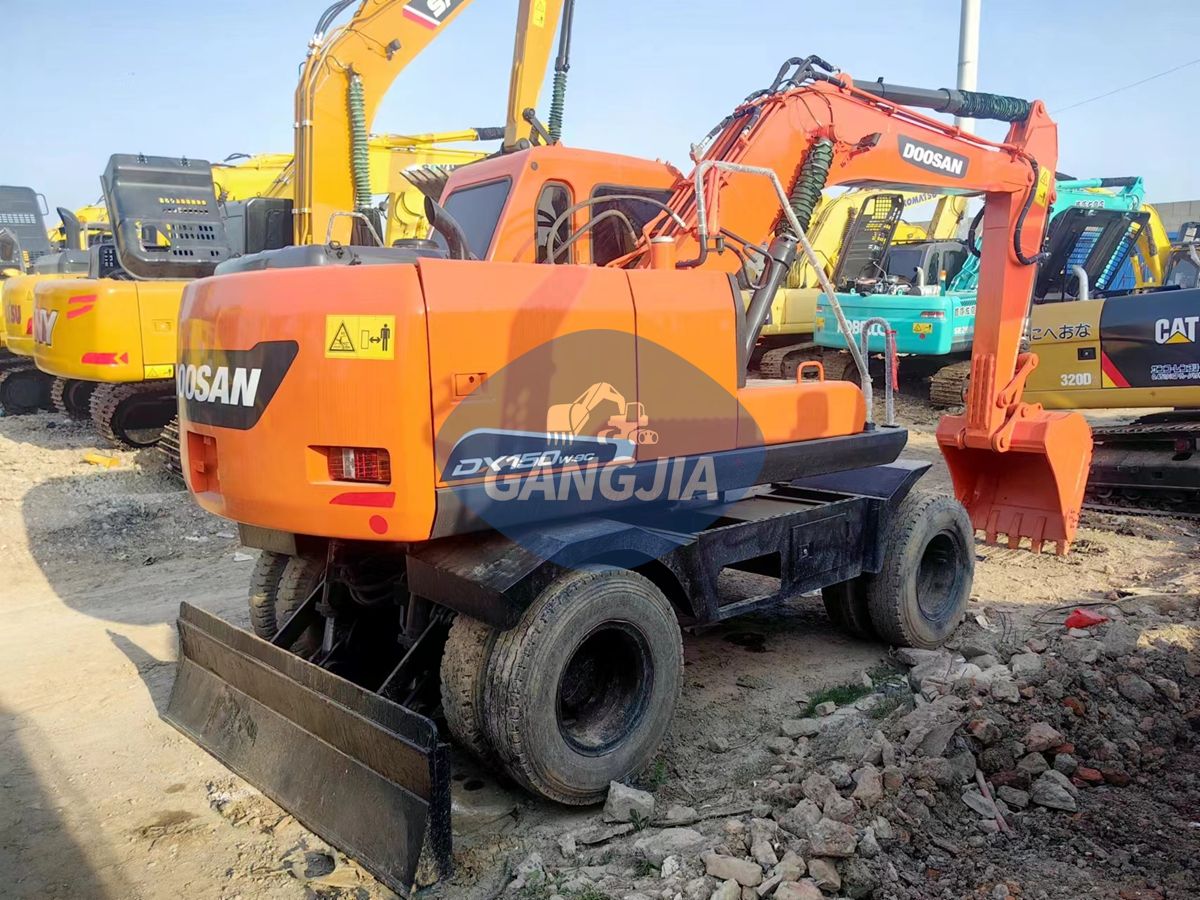

Doosan DH150W-7 excavator parameter configuration

Specifications

Machine operating weight (kg) 12900

Bucket capacity (m³) 0.57

Boom length (mm) 4300

Arm length (mm) 2100/2500

Place of origin Yantai

Tonnage (tons) 15

Manufacturer joint venture/imported

Bucket backhoe

Manufacturer joint venture/imported

Power conventional power

Performance

Drive type hydraulic drive

Forward speed (Km/h) 10-37

Minimum turning radius (m) 77

Slewing speed (rpm) 12.5

Gradability (%) 70

Bucket digging force (kN) 94. 1

Bucket digging force (kN) 68.6

Maximum traction force (kN) 62

Power system

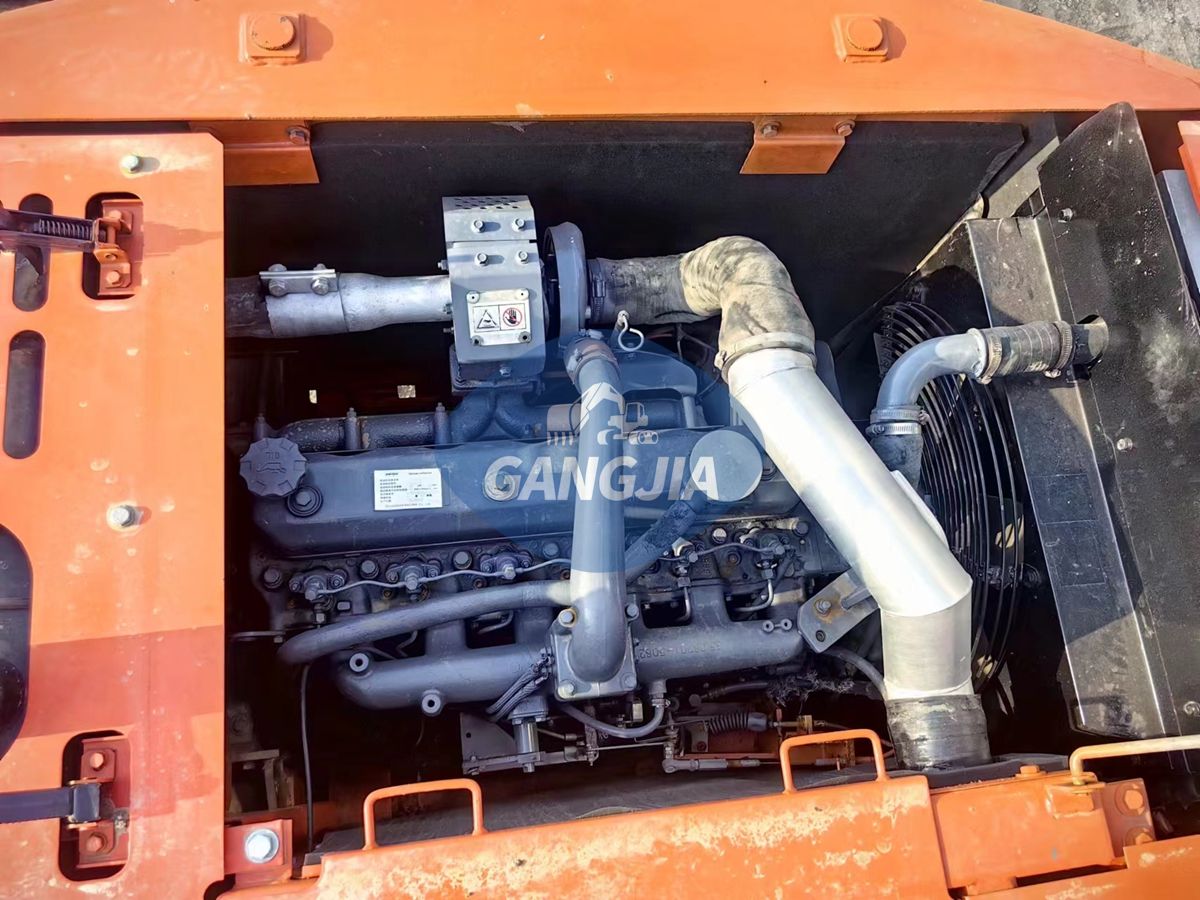

Engine model DB58TIS

Rated power (kw/rpm) 96/2200

Number of cylinders (pieces) 6

Cylinder diameter × stroke (mm) 102 × 118

Cooling method Air cooling

Hydraulic system

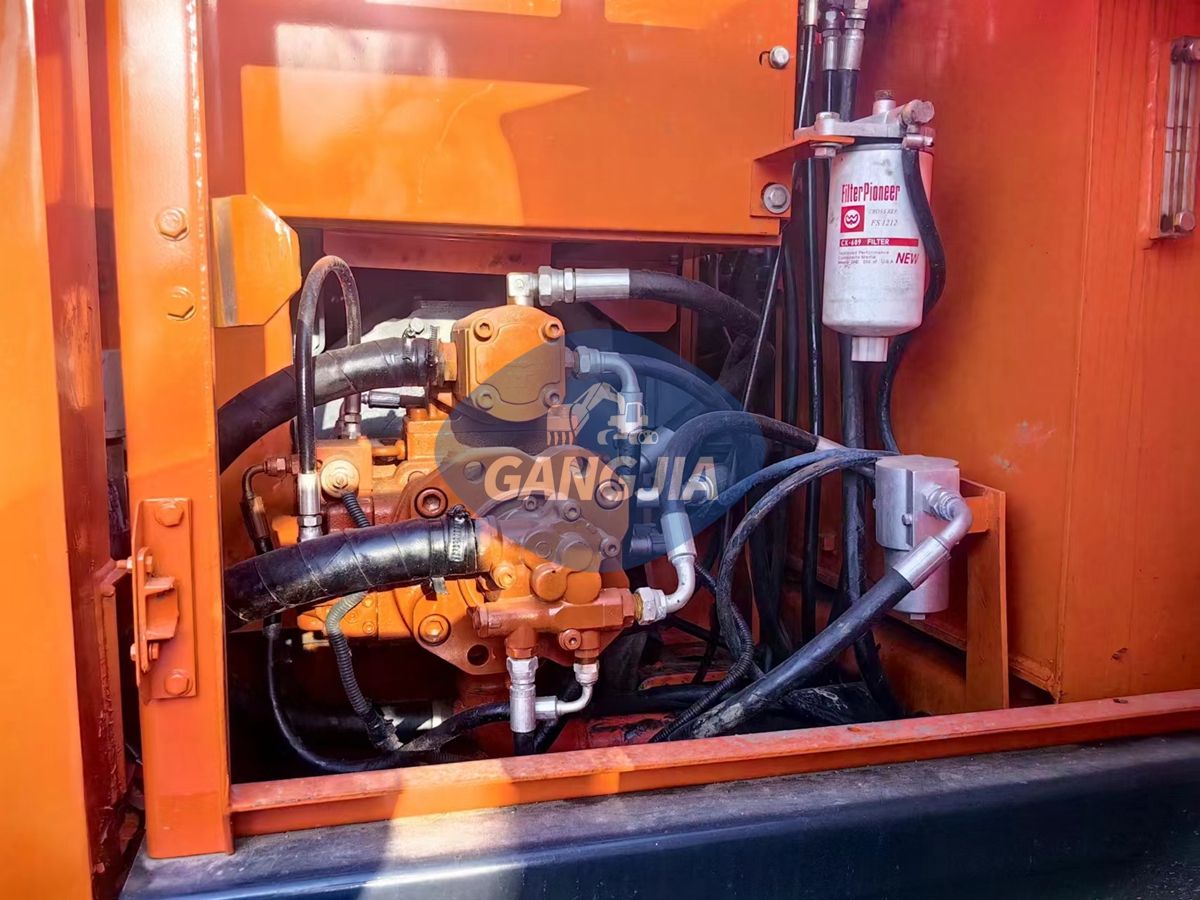

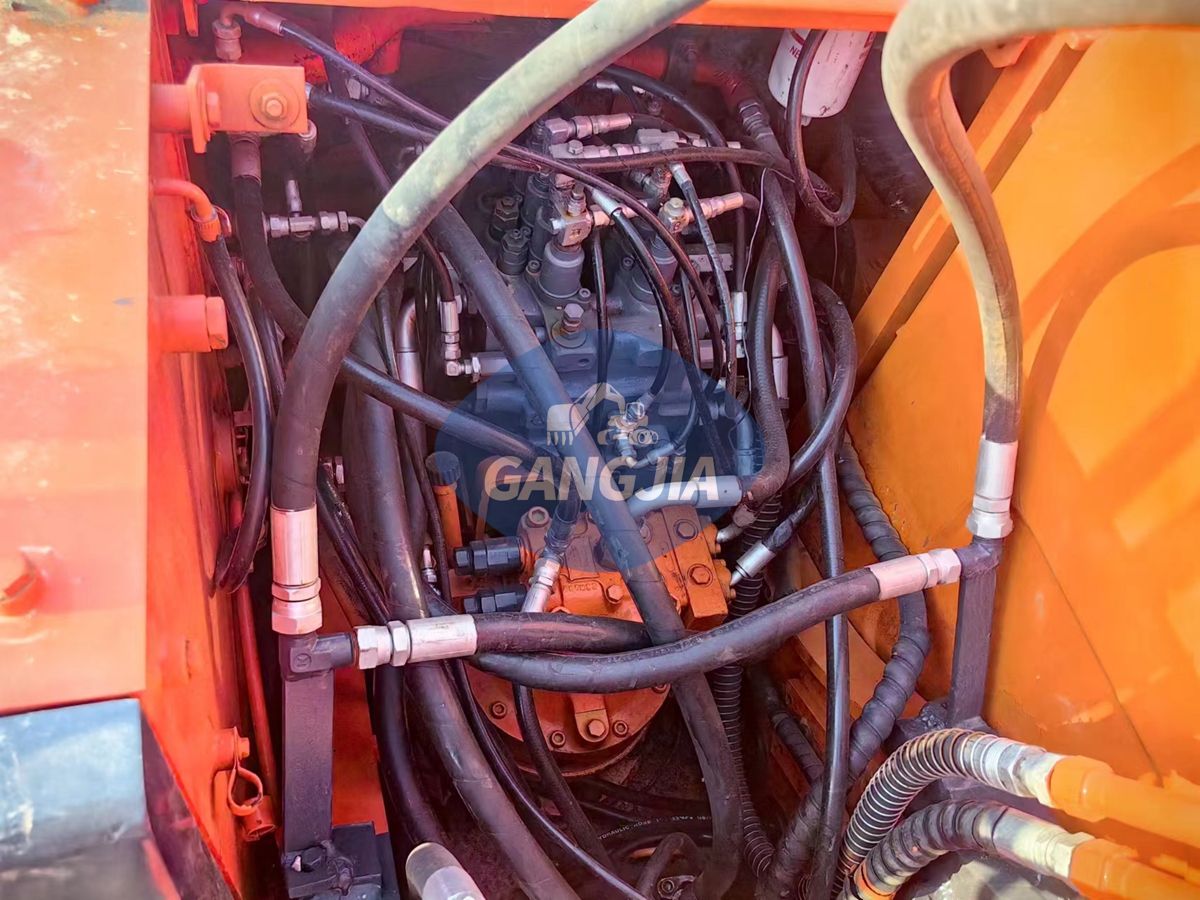

Main pump type Variable axial piston pump

Main pump maximum flow (l/min) 2 × 162

Working hydraulic oil circuit (Mpa) Standard 22.7 / Boost 34.3

Travel hydraulic circuit (Mpa) 34.3

Slewing hydraulic circuit (Mpa )26.5

Boom cylinder - bore × stroke (mm) 2-110 × 1030

Arm cylinder - bore × stroke (mm) 1-110 × 1085

Bucket cylinder - bore × stroke (mm) 1-95 × 885

Oil capacity

Fuel tank (L) 280

Hydraulic tank (L) 95

Main body dimensions

Total length for transport (mm) 7250

Total width for transport (mm) 2495

Total height for transport (mm) 3125 (to the top of the cab)

Total height of the cab (mm) 3116

Wheelbase (mm) 2800

Tread (mm) 1914

Single tire width (mm) 582

Total width outside the tire (mm )2496

Counterweight ground clearance (mm) 1241

Minimum ground clearance (mm )350

Rear end turning radius (mm )2210

Operating range

Maximum digging radius (mm) 7530

Maximum digging radius on the ground (mm) 7295/7728

Maximum digging depth (mm) 4615

Maximum vertical digging depth (mm) 4086/4675

Maximum digging height (mm) 8015

Maximum unloading height (mm) 5630

Minimum turning radius (mm) 2210
