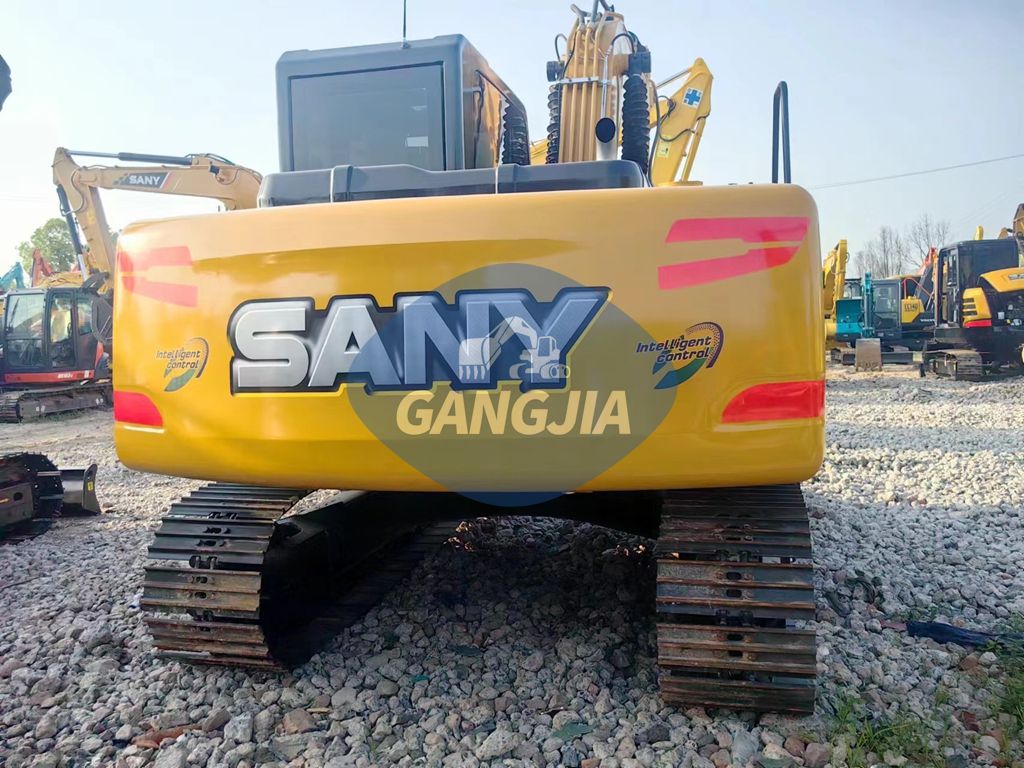

Sany Heavy Industry SY135C excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Domestic

Bucket backhoe

Tonnage (tons) 13

Machine working weight (kg) 13500

Bucket capacity (m³) 0.22-0.7 (0.6)

Performance

Slewing speed (rpm) 12

Travel speed (km/h) 5.5/3.5

Gradability (%) 70% (35°)

Ground pressure (Kpa) 41.7

Bucket digging force (kN) 92.7

Arm digging force (kN) 66.13

Power system

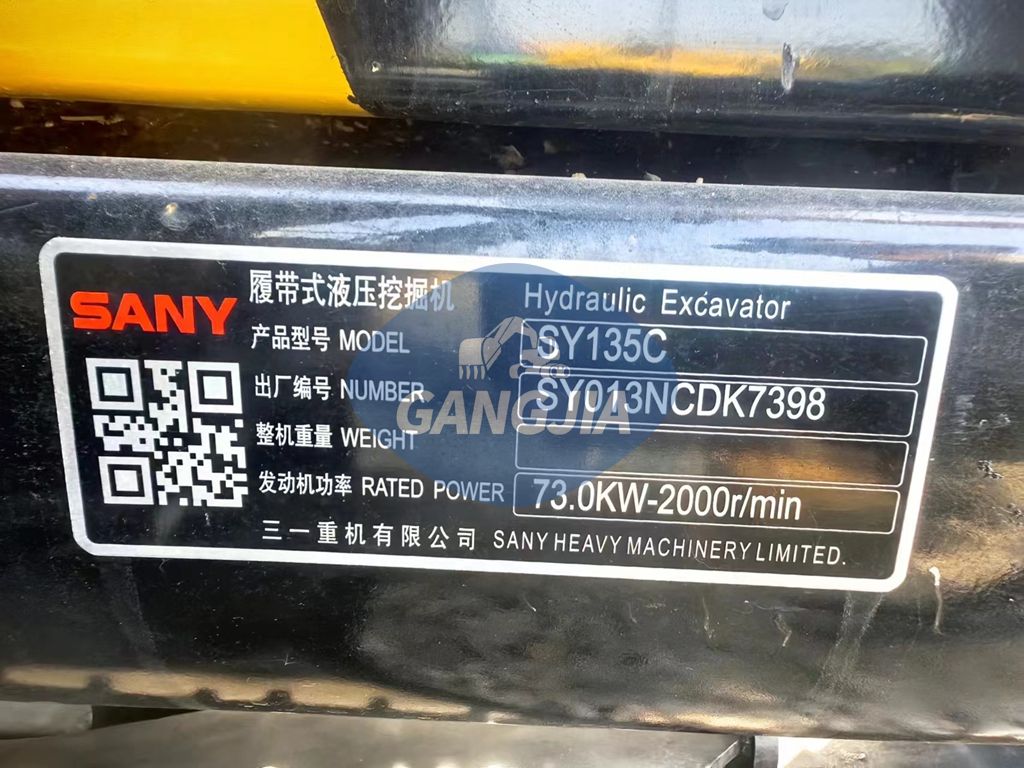

Engine model Isuzu 4JJ1-XDJAG-01-C3

Rated power (kw/rpm) 73/2000

Maximum torque (N.m) 365/1600

Displacement (L) 2.999

Cooling method Water cooling

Oil capacity

Fuel tank (L) 240

Hydraulic oil tank (L) 150

Engine oil change volume (L) 15

Main body dimensions

Total length for transportation (mm) 7700

Total width for transportation (mm) 2550

Total height for transportation (mm) 2815

Total height of cab (mm) 2740

Onboard width (mm) 2490

Track ground length (mm) 2930

Total length of track (mm) 3665

Track shoe width (mm) 500

Track gauge (mm) 1990

Minimum ground clearance (mm )425

Minimum turning radius of front working device (mm) 2500

Rear end turning radius (mm) 2240

Maximum height at minimum turning radius (mm) 6500

Number of chain rollers (single side) (pcs) 1

Number of track shoes (single side) (pcs) 44

Number of supporting rollers (single side) (pcs) 7

Operating range

Maximum digging radius (mm) 8290

Maximum digging depth (mm) 5510

Maximum digging height (mm) 8685

Maximum unloading height (mm) 6180

Maximum vertical digging depth (mm) 4890
