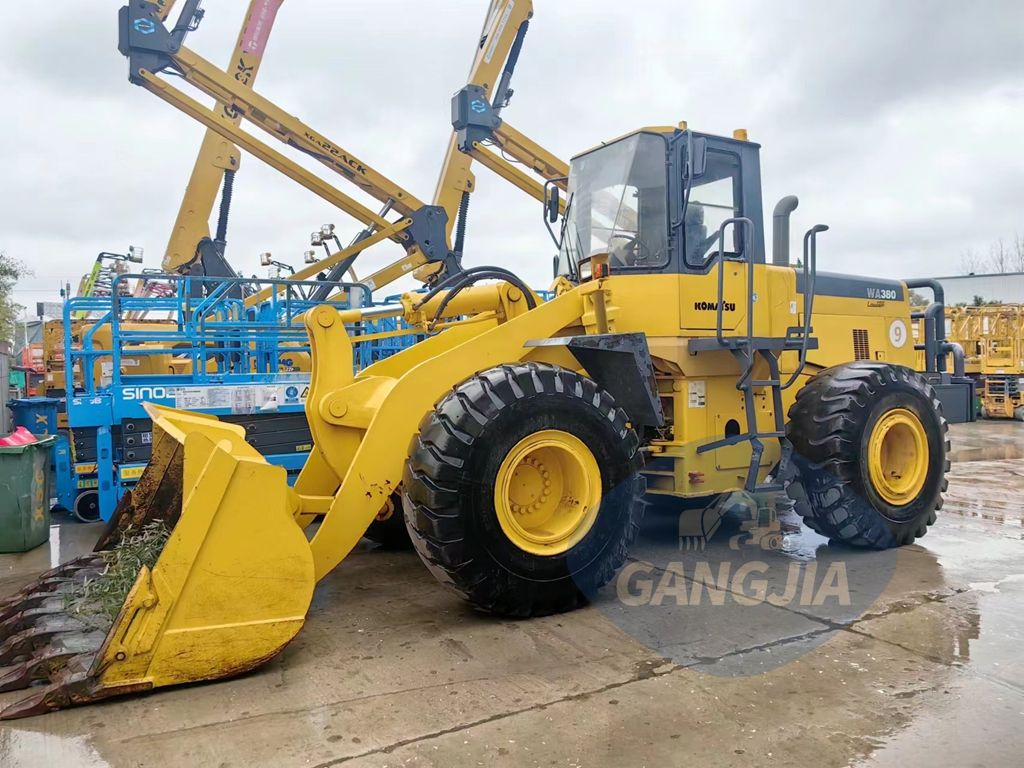

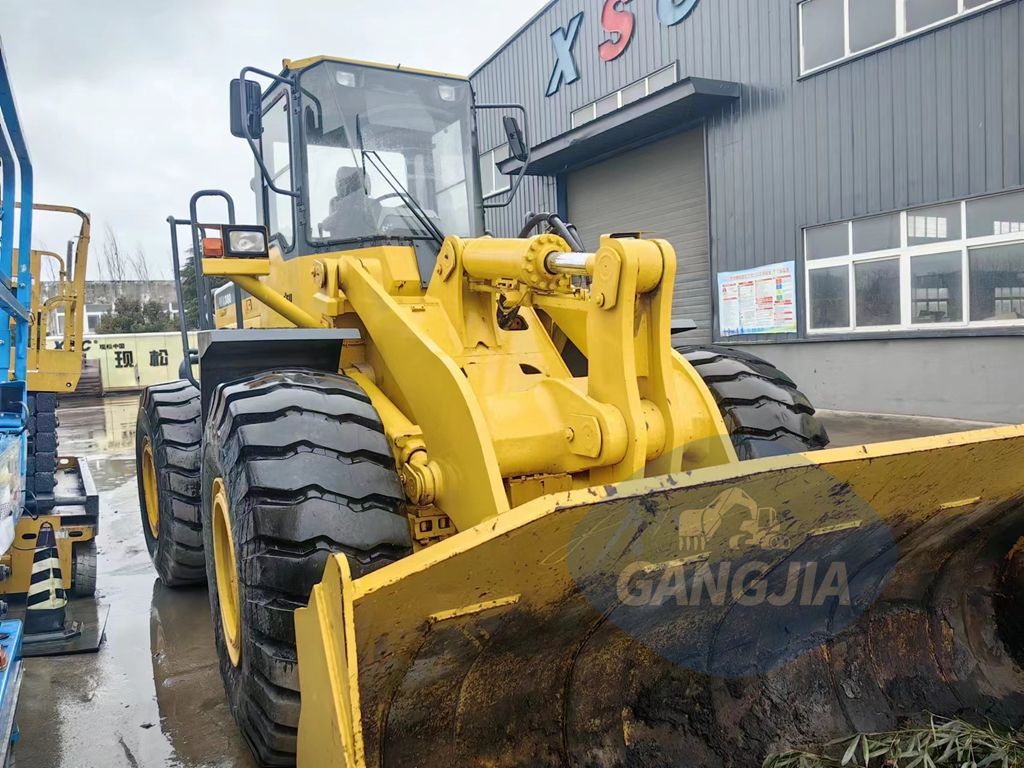

Komatsu WA380-3 loader parameter configuration
Basic performance
Operating weight of the whole machine (kg) 16360
Rated load (kg) 5000

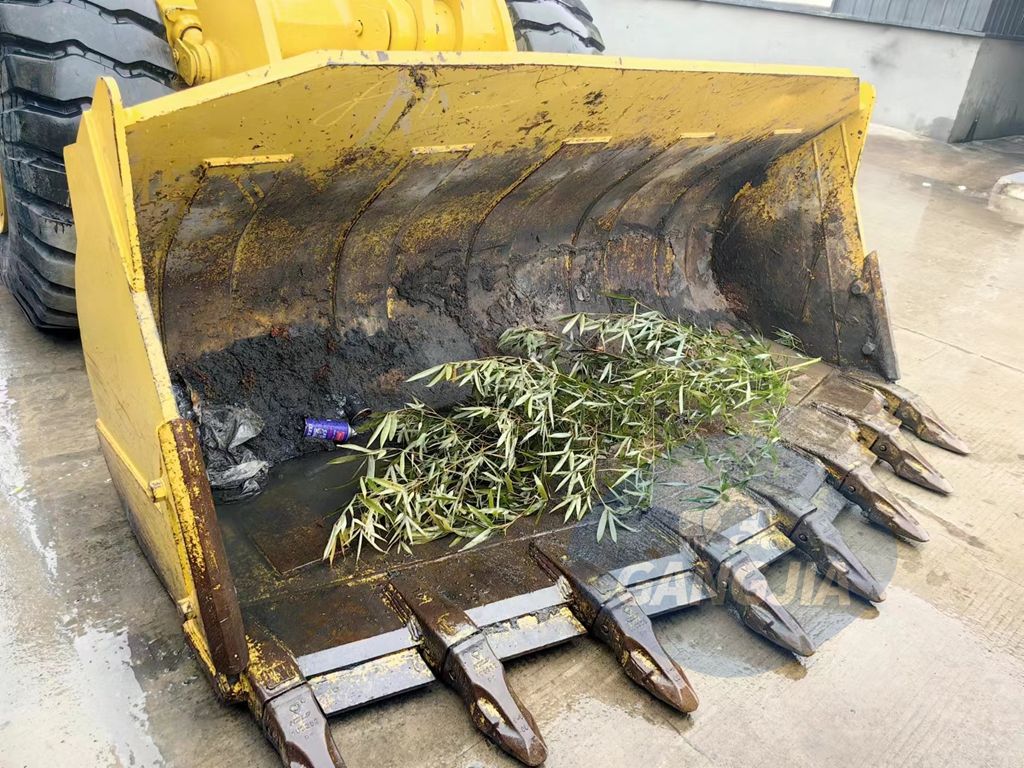

Bucket capacity (m³) 3
Maximum-unloading height (mm) 2900
Unloading distance (mm) 1170
Digging force (digging force) (kN) 168
Rated load (tons) 5-6 tons

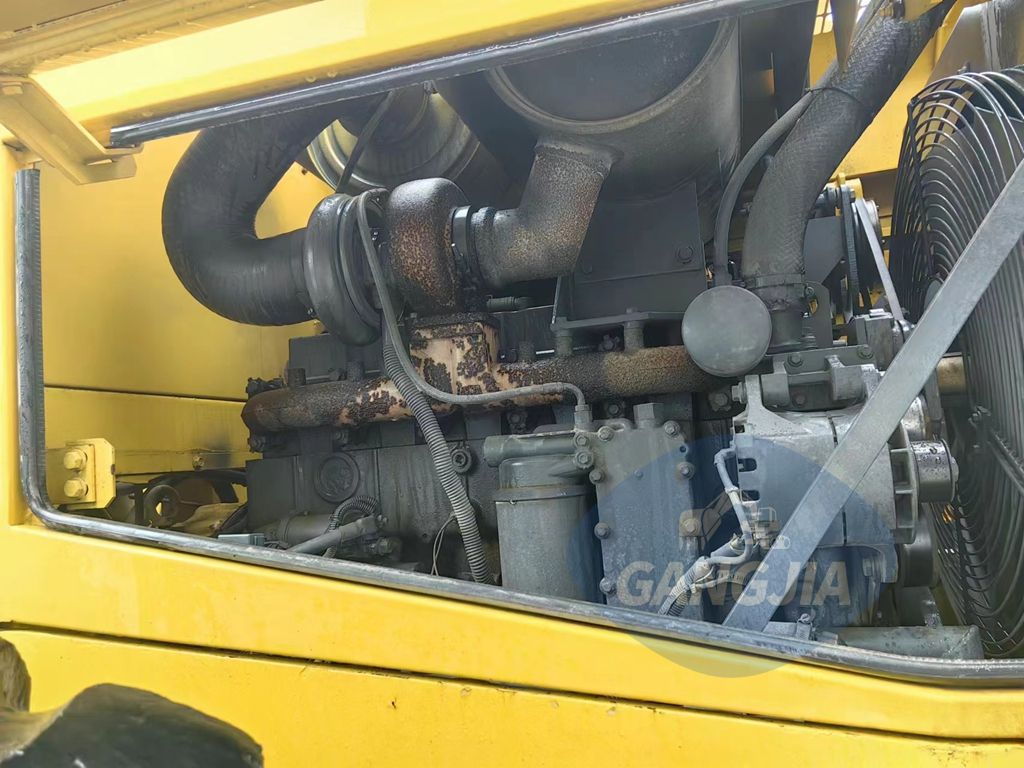

Engine
Engine model Komatsu SA6D114
Working mode 4-stroke 6-cylinder in-line turbocharged intercooled direct injection
Displacement (L) 8.27
Rated power (kw/rpm) 146/2200
Oil capacity
Fuel tank (L) 285
Engine oil (L) 19
Gearbox
Driving speed 1st gear (km/h) 7.7/8.0
Driving speed 2nd gear (km/h) 12.3/12.8
Driving speed 3rd gear (km/h) 21.4/22.6
Driving speed 4th gear (km/h) 34.0/35.0

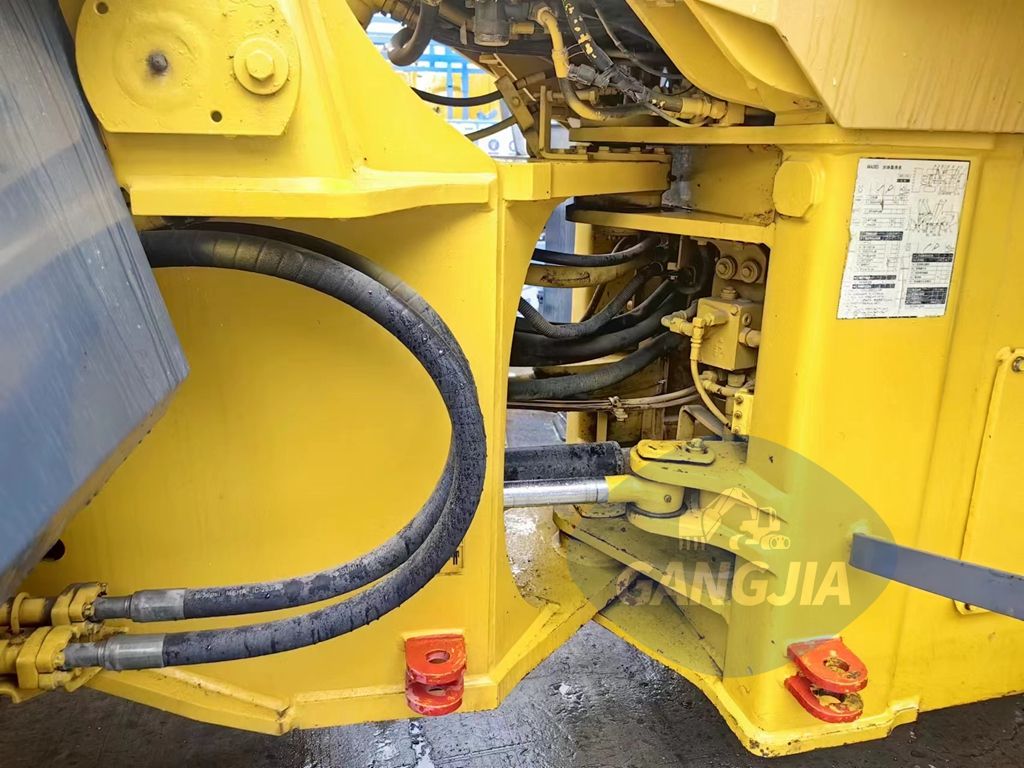

Steering system
Steering angle 40°
Minimum turning radius of outer wheel centerline 5475
Technical parameters
Maximum traction (kN) 147
Maximum gradeability (°) 25°
Overall machine size
Minimum ground clearance (mm )455
Overall length (mm)7965
Overall width (mm)2780
Overall height (mm)3380
Wheelbase (mm)3200
