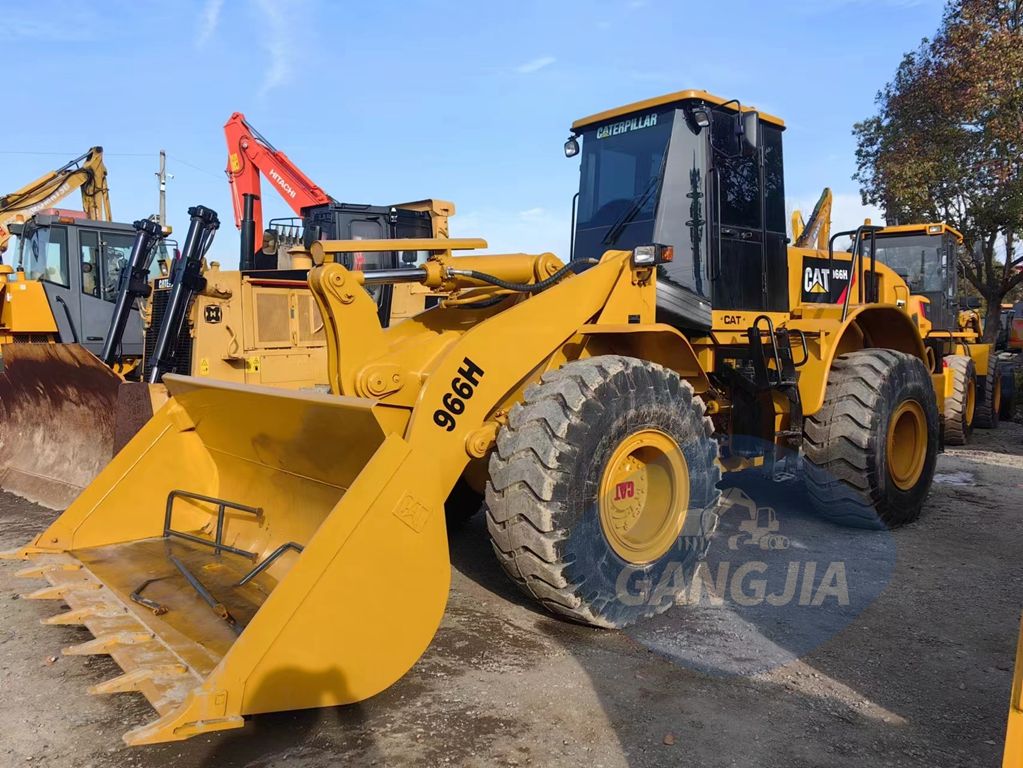

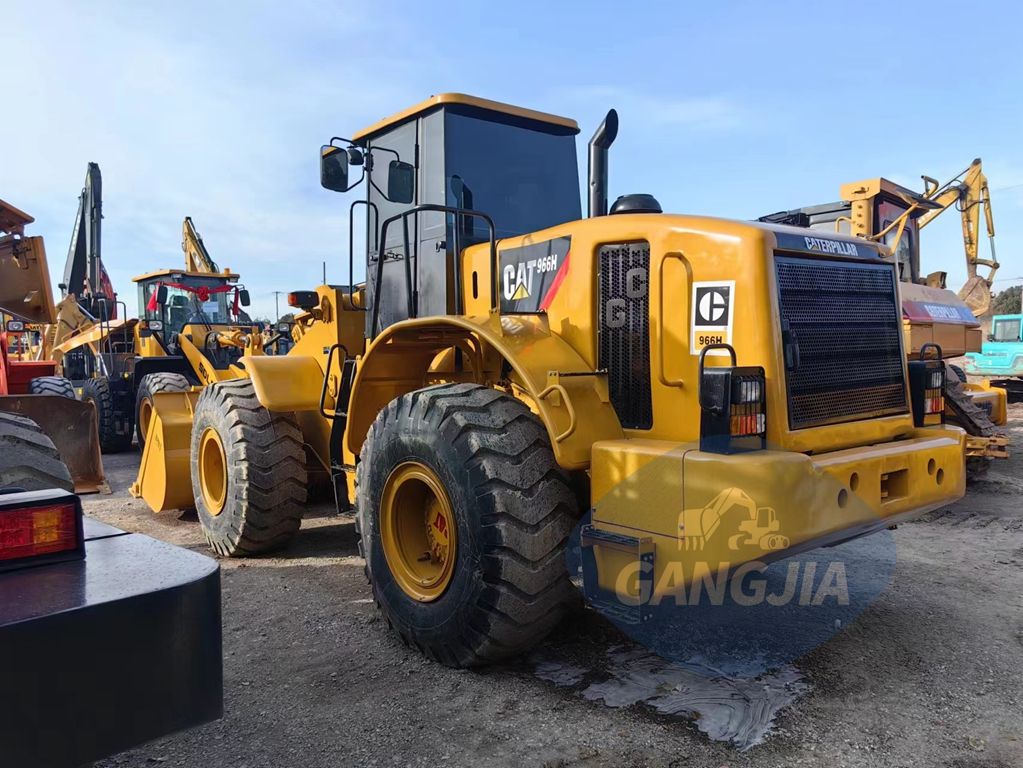

Caterpillar 966H loader parameter configuration

Basic performance

Operating weight of the whole machine (kg) 23698

Bucket capacity (m³) 3.4-4.2

Maximum-unloading height (mm) 3005

Rated load (tons) 6 tons or more

Engine

Engine model Caterpillar Cat C11 ACERT

Displacement (L) 11.1

Rated power (kw/rpm) 195kw

Cylinder diameter × stroke (mm) 130 × 140

Oil capacity

Fuel tank (L) 380

Hydraulic oil tank (L) 110

Coolant (L) 39

Gearbox

Travel speed 1st gear (km/h) 6.7/7.4

Travel speed 2nd gear (km/h) 12.6/13.9

Travel speed 3rd gear (km/h) 22.1/24.3

Travel speed 4th gear (km/h) 37.4

Hydraulic system

Flow Rated speed (l/min) 305

Working device action time

Lifting (s) 5.9

Unloading (s) 1.6

Lowering empty bucket (s) 2.4

Three items and (s) 9.9

Technical parameters

Distance from rear axle to hinge point (mm) 1725

Tipping load (kg) 15474

Machine size

Minimum ground clearance (mm) 496

Bucket width (mm) 3145

Wheelbase (mm) 3450
