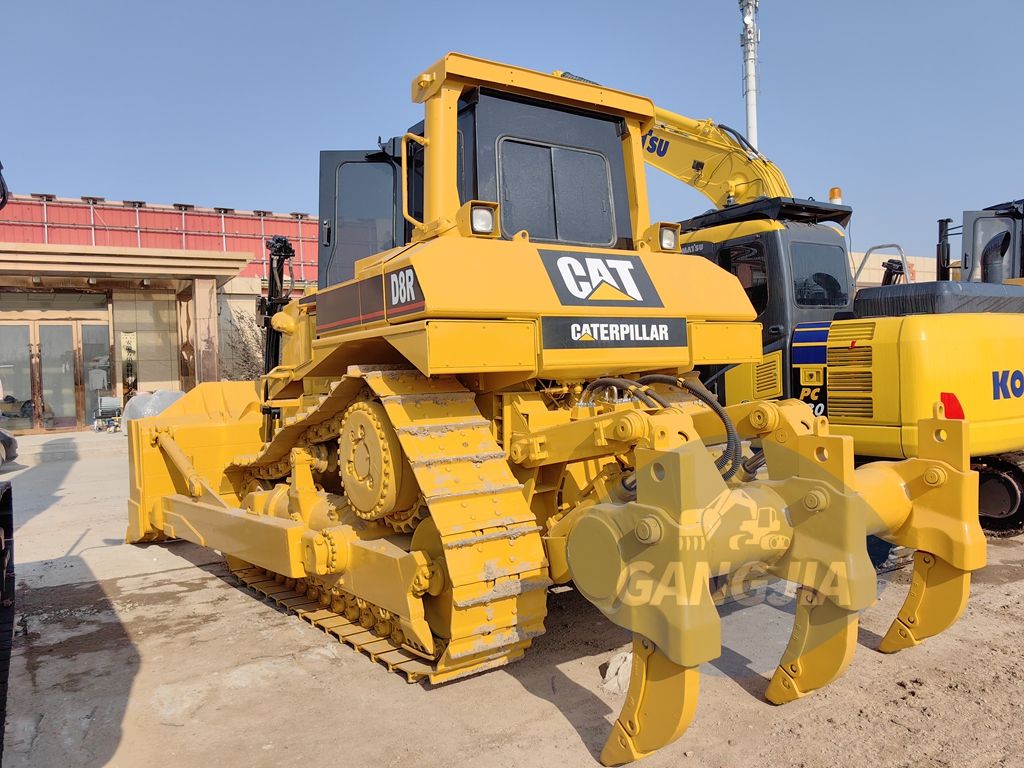

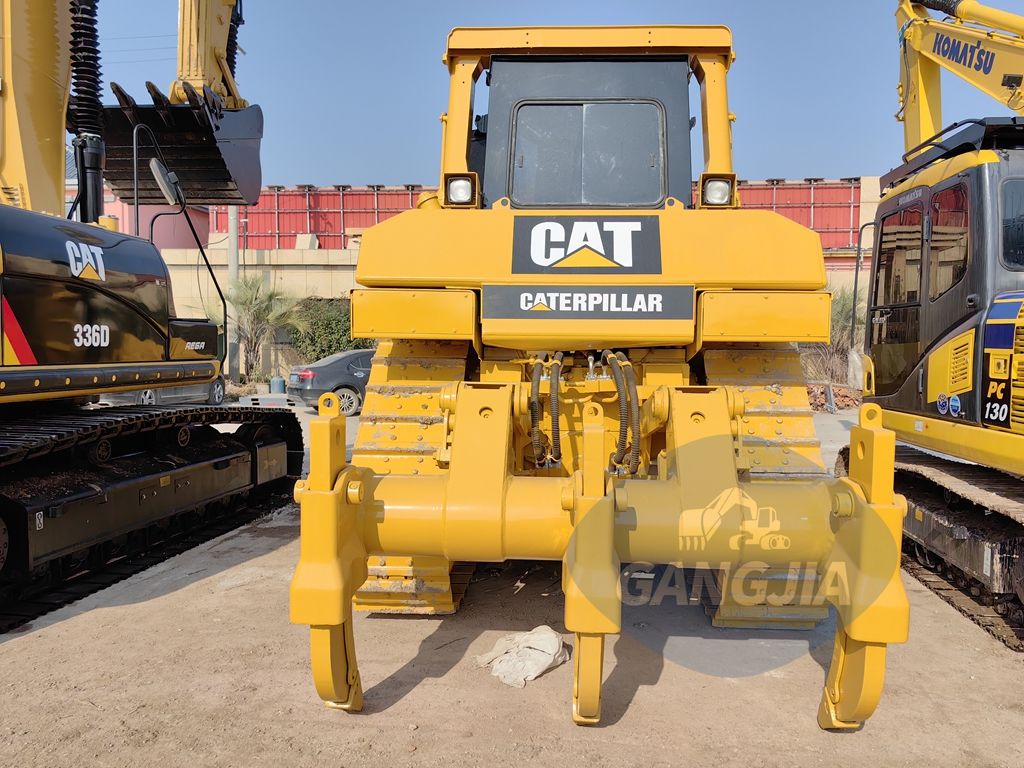

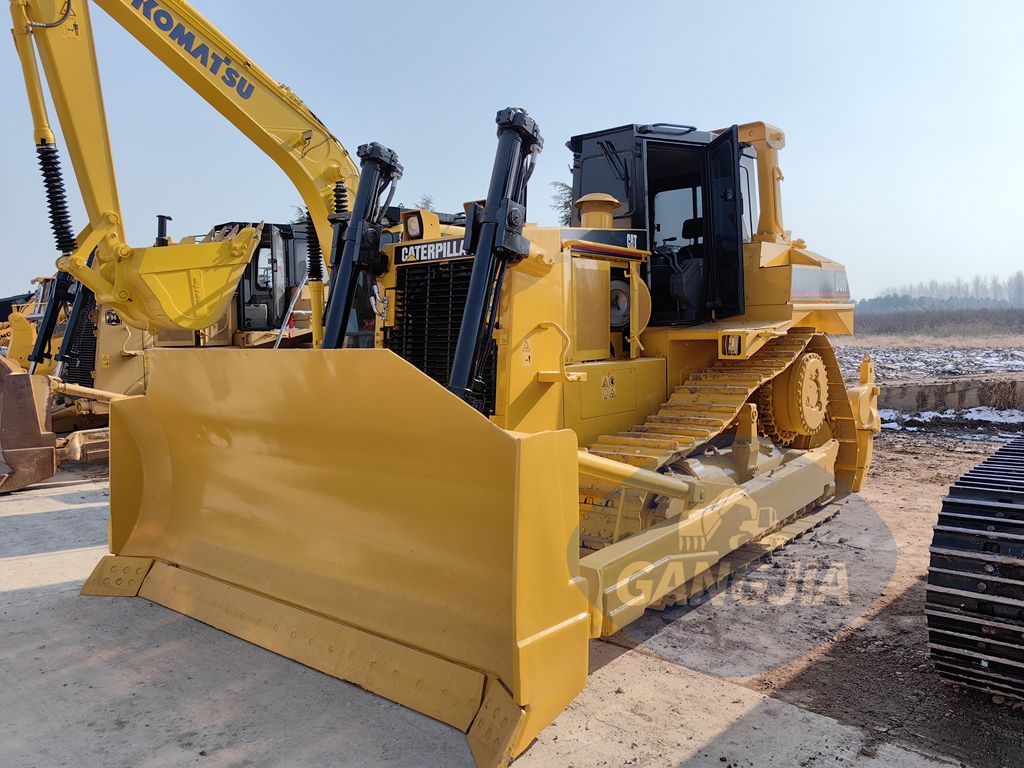

Caterpillar D8R bulldozer parameter configuration

Specifications

Machine operating weight (kg) 37771

Net power (kW/rpm) 228

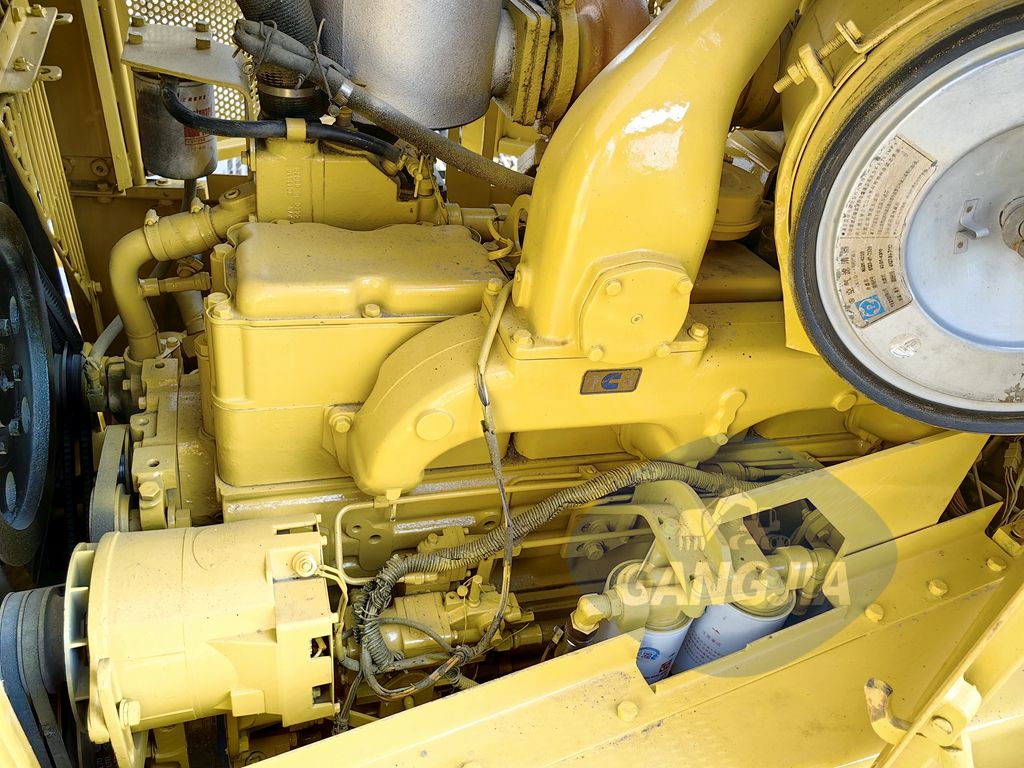

Engine

Engine model Caterpillar CAT 3406C TA

Power 228

Displacement (L) 14.6

Number of cylinders - cylinder bore × stroke (n-mm × mm) 137 × 165

Transmission system

1st gear travel speed (km/h) 0-3.5

2nd gear travel speed (km/h) 0-6.2

3rd gear travel speed (km/h) 0-10.8

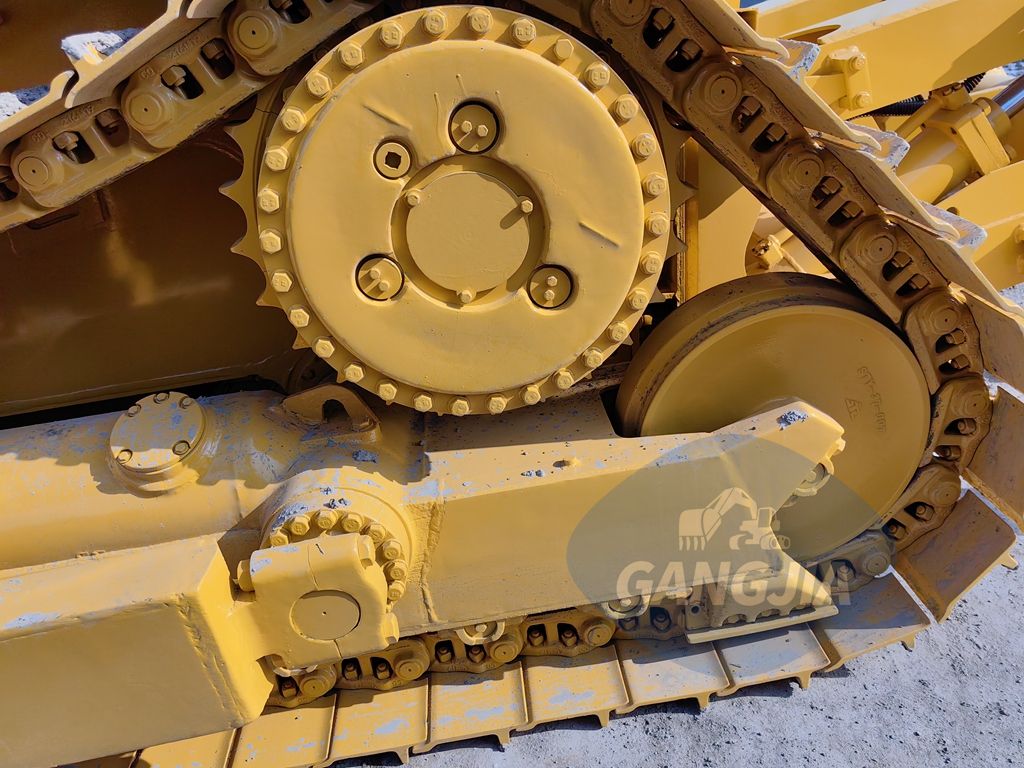

Travel mechanism

Track ground length (mm) 3206

Oil capacity

Fuel tank (L) 625

Hydraulic system (L) 72

Engine oil (L) 144

Coolant (L) 92

Overall dimensions

Machine length (mm) 4554

Machine width (mm) 2642

Minimum ground clearance (mm) 528
