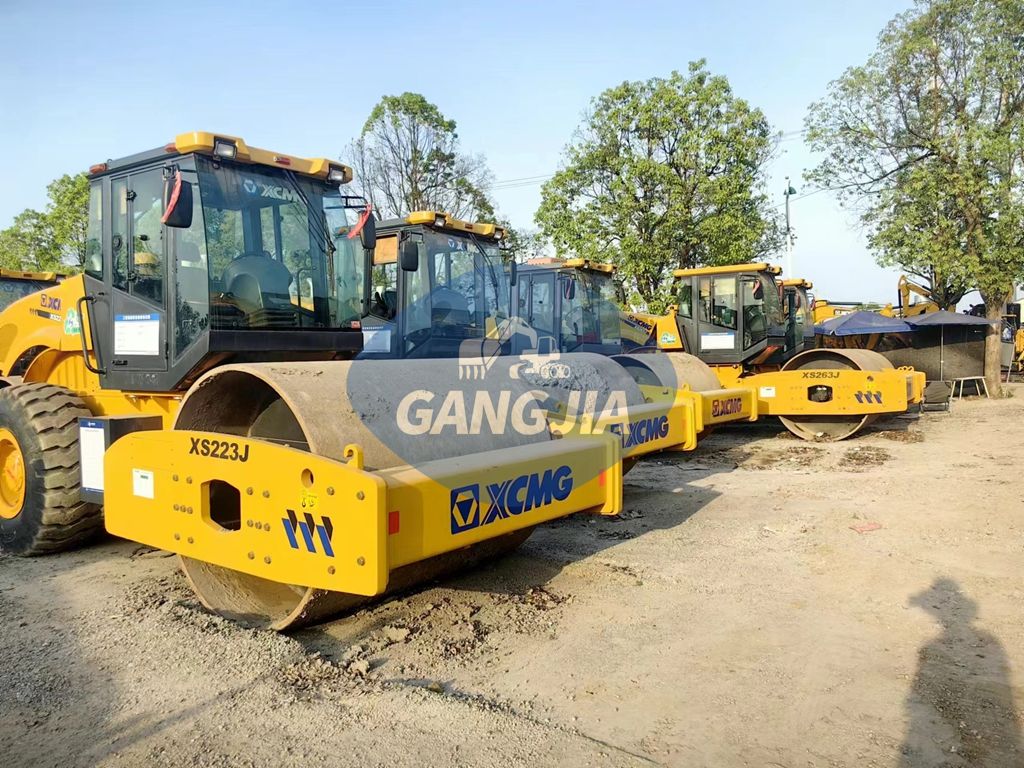

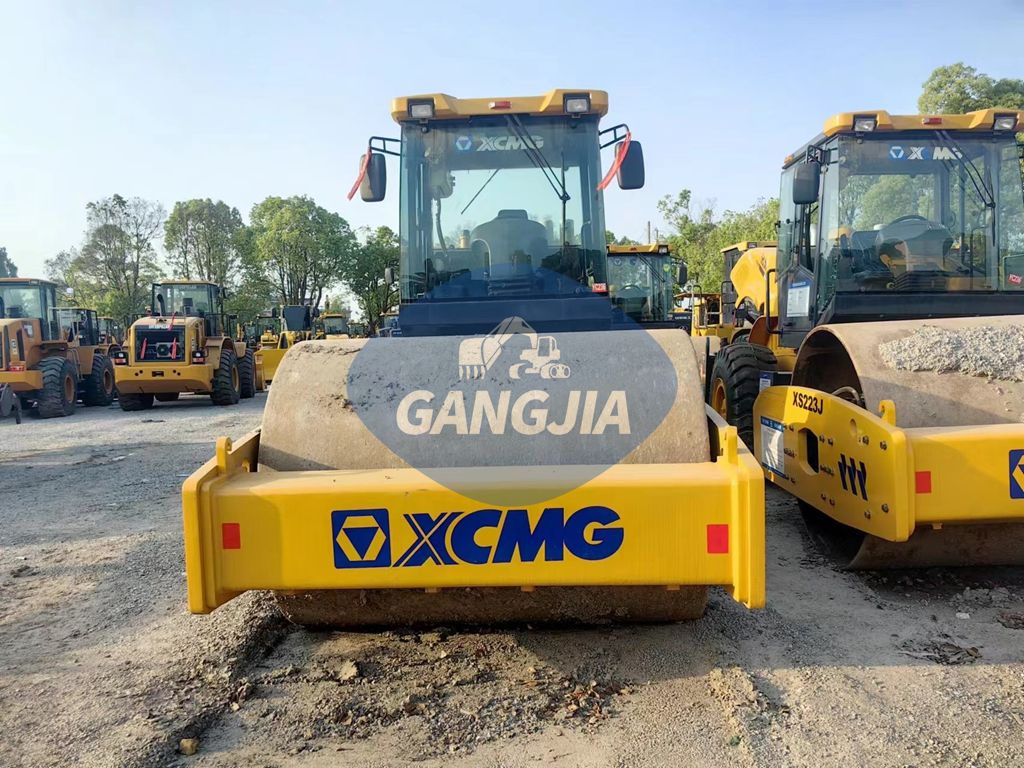

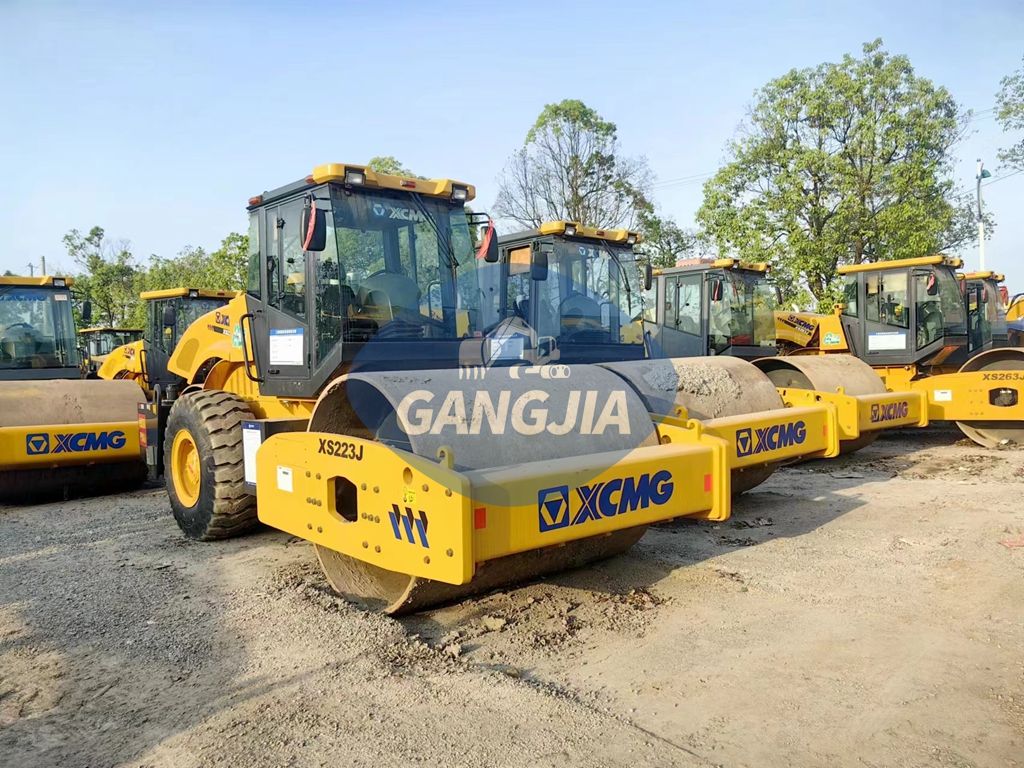

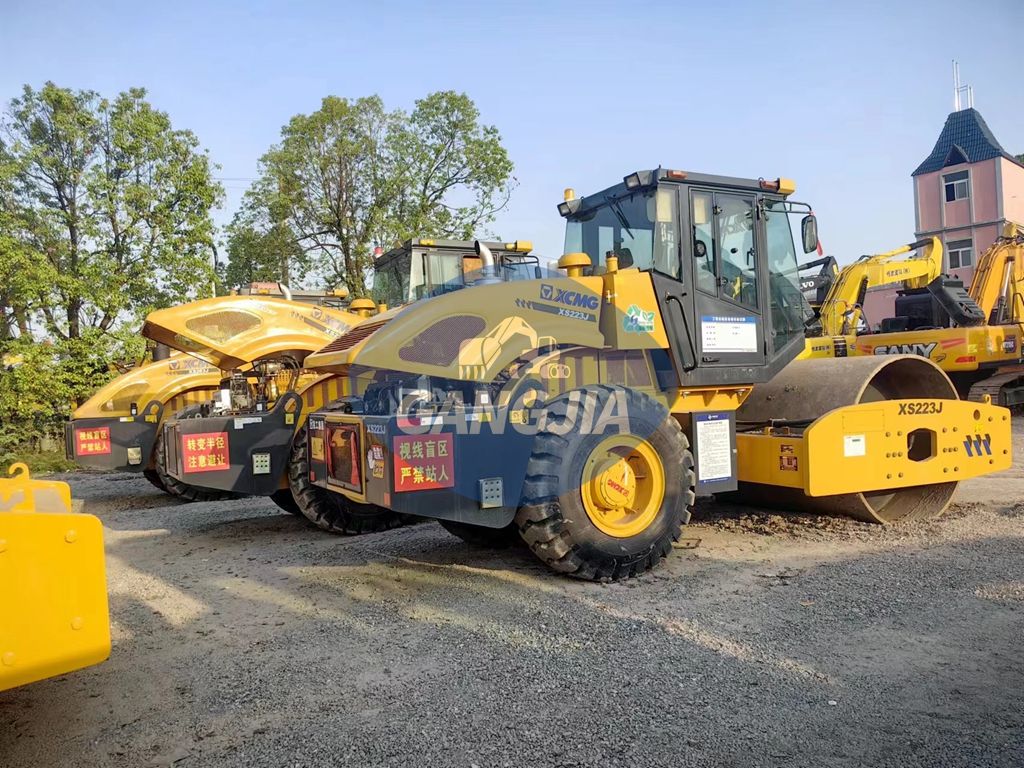

XCMG XS223J roller parameter configuration

Mass load parameters

Working mass with cab (kg) 22000

Front wheel distribution mass (kg) 11000

Rear wheel distribution mass (kg) 11000

Front wheel static linear load (N/cm) 516

Operation weight (kg) 20 tons or more

Compacting mechanism parameters

Vibration frequency (Hz) 28/33

Nominal amplitude (mm) 1.86/0.93

Excitation force (kN) 374/290

Working width/vibration wheel width (mm) 2130

Vibration wheel diameter (m m)1600

Mobility performance parameters

High-speed driving speed (km/h) 9.4

Low-speed driving speed (km/h) 2.95

Theoretical climbing ability during vibration (%) 30

Minimum turning radius (mm) 6500

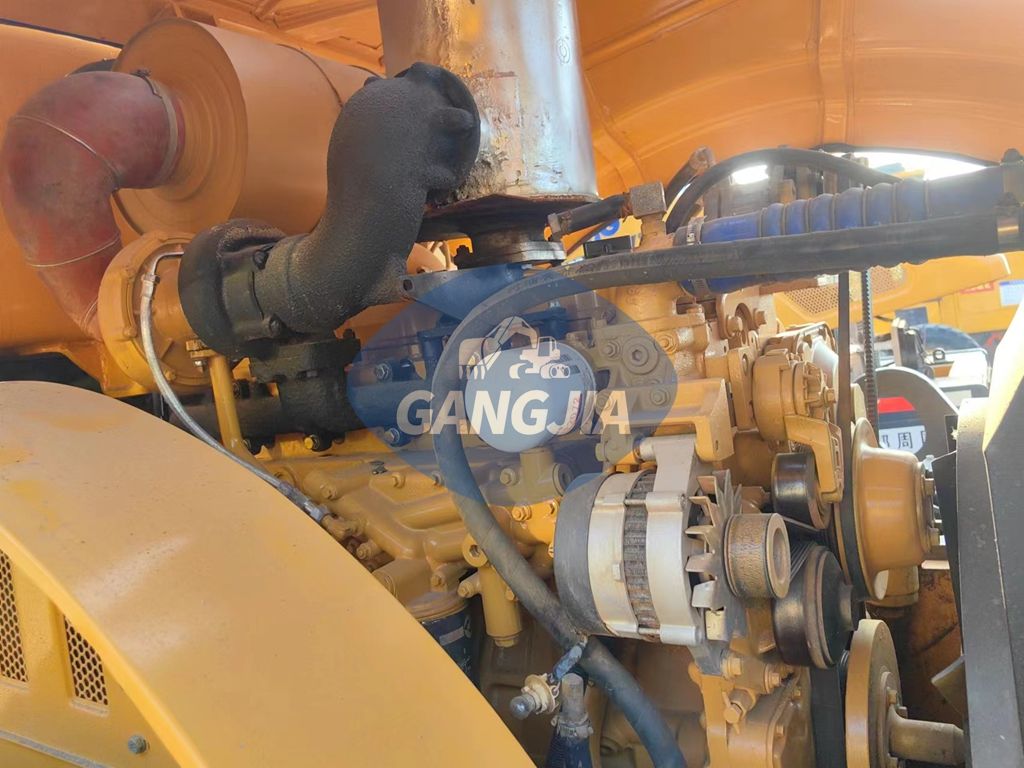

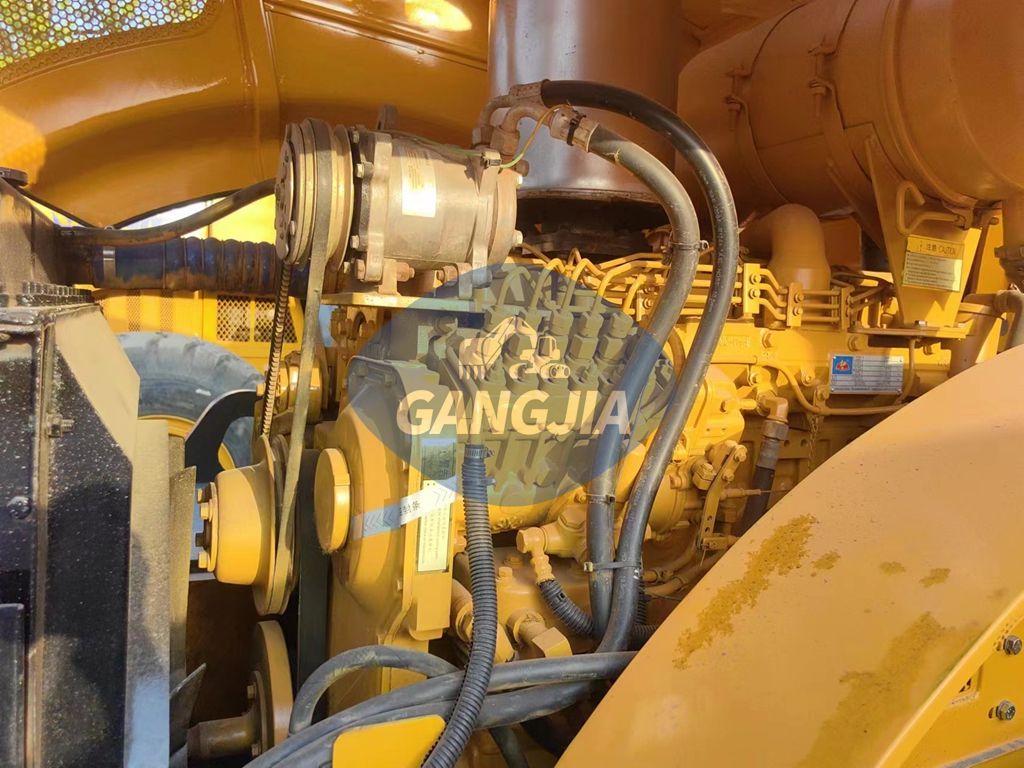

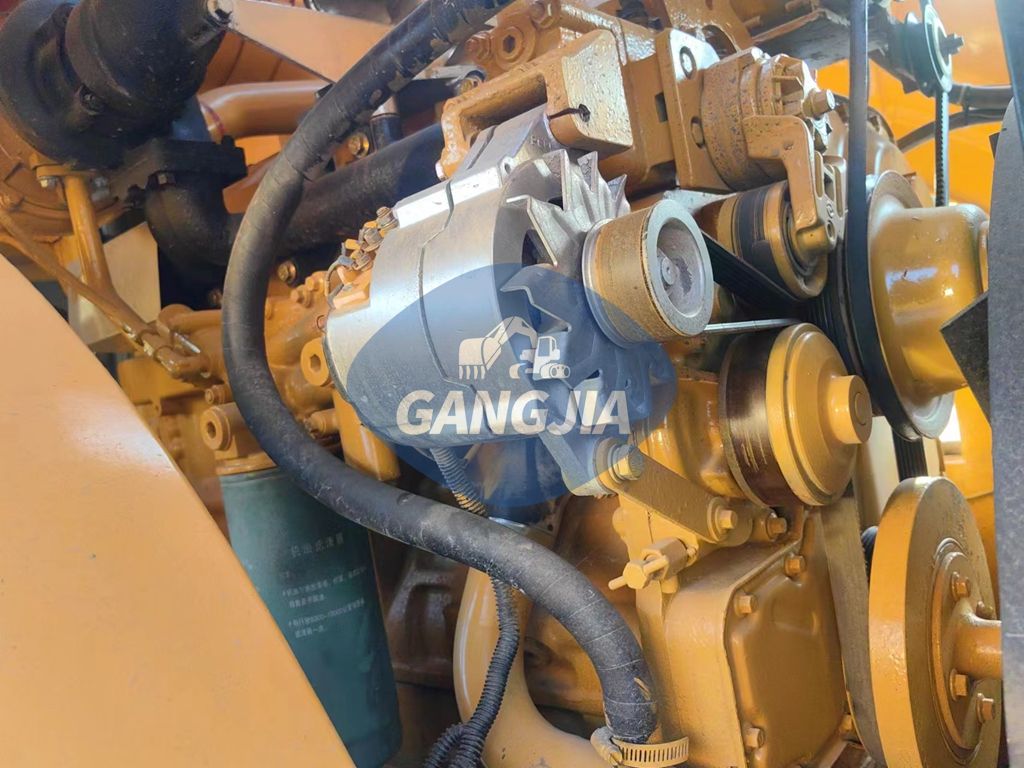

Engine

Model SC7H190.2G3

Rated power (kw/rpm) 140/1800

Overall machine size

Length (mm) 6320

Width (mm) 2390

Height (mm) 3200

Wheelbase (mm) 3230

Minimum ground clearance (mm) 440
