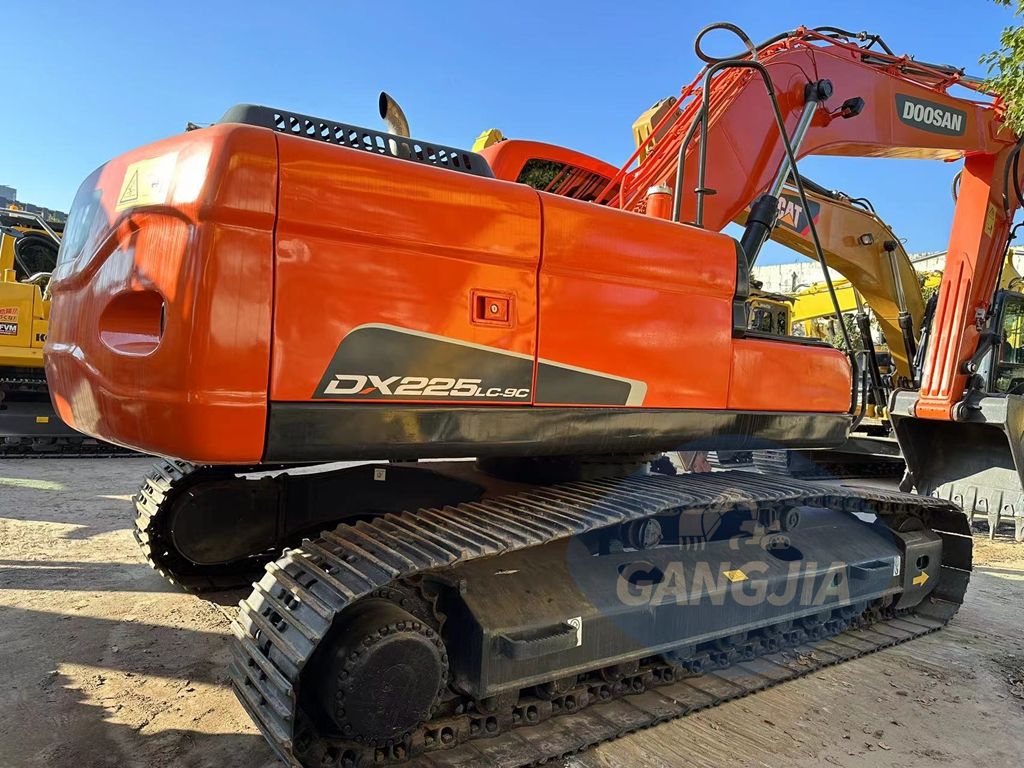

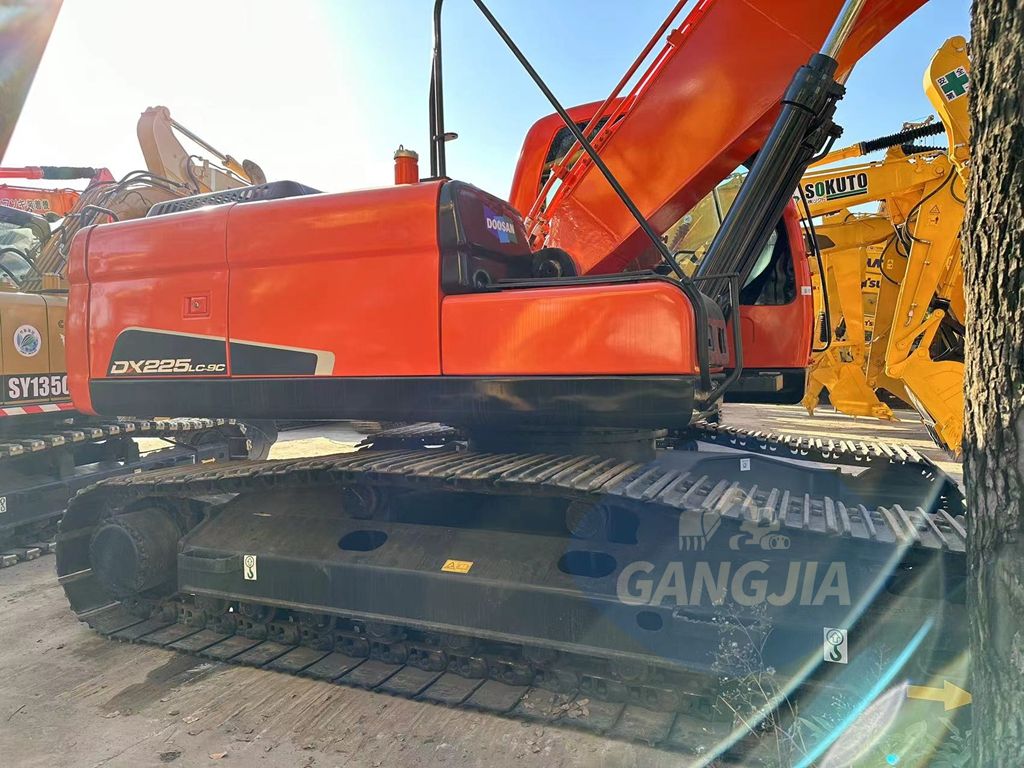

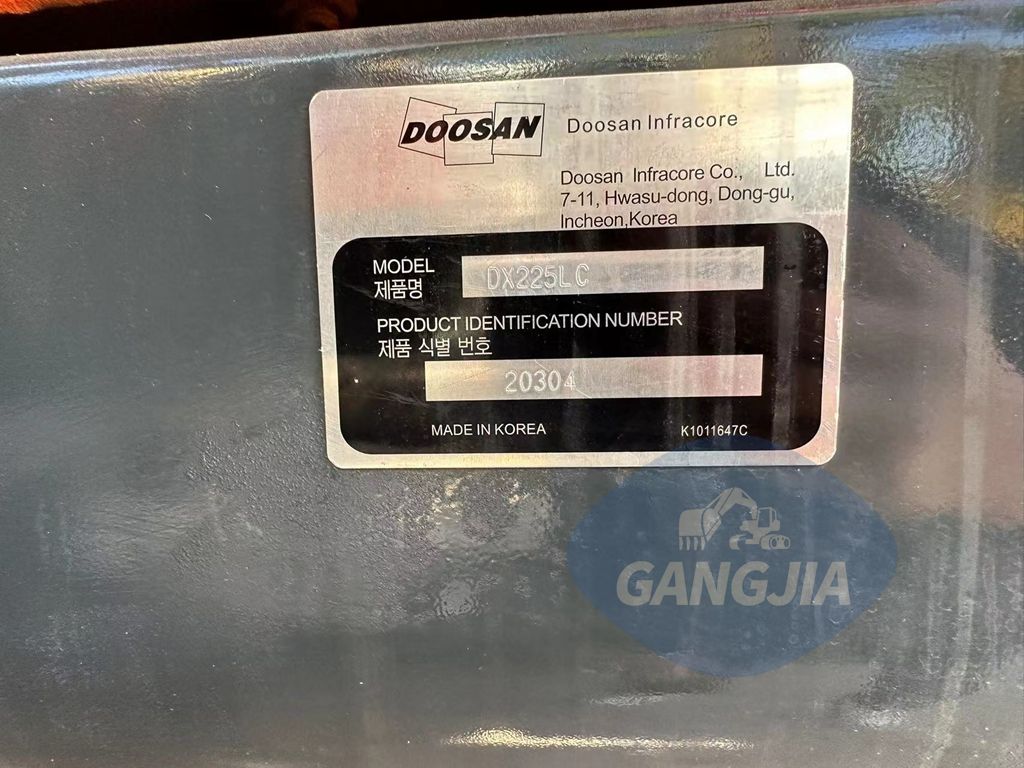

Doosan DX225LC excavator parameter configuration

Specifications

Machine operating weight (kg) 21500

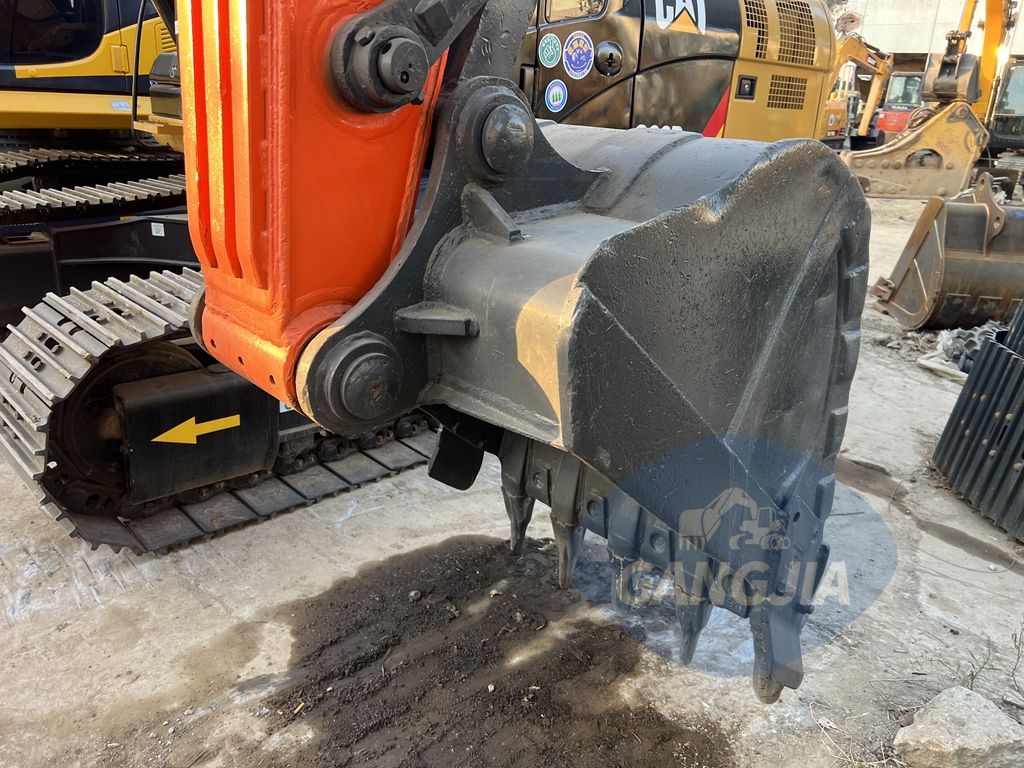

Bucket capacity (m³) 1.05

Boom length (mm) 5700

Arm length (mm) 2900 (2400, 3500 optional)

Tonnage (tons) 22

Power Traditional power

Bucket backhoe

Manufacturer joint venture/imported

Power Traditional power

Performance

Ground pressure (Kpa) 0.45

Slewing speed (rpm) 11

Travel speed (km/h) 3.0/5.5

Climbing ability (%) 35 degrees

Bucket digging force (kN) 136.2 (144.1)

Arm digging force (kN) 102.9 (116.6/94.1)

Power system

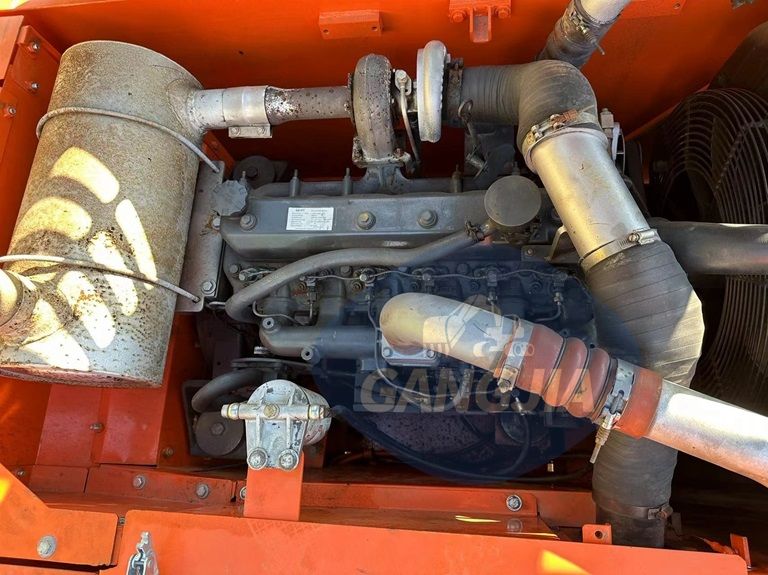

Engine model Doosan DL06

Rated power (kw/rpm) 157/1900

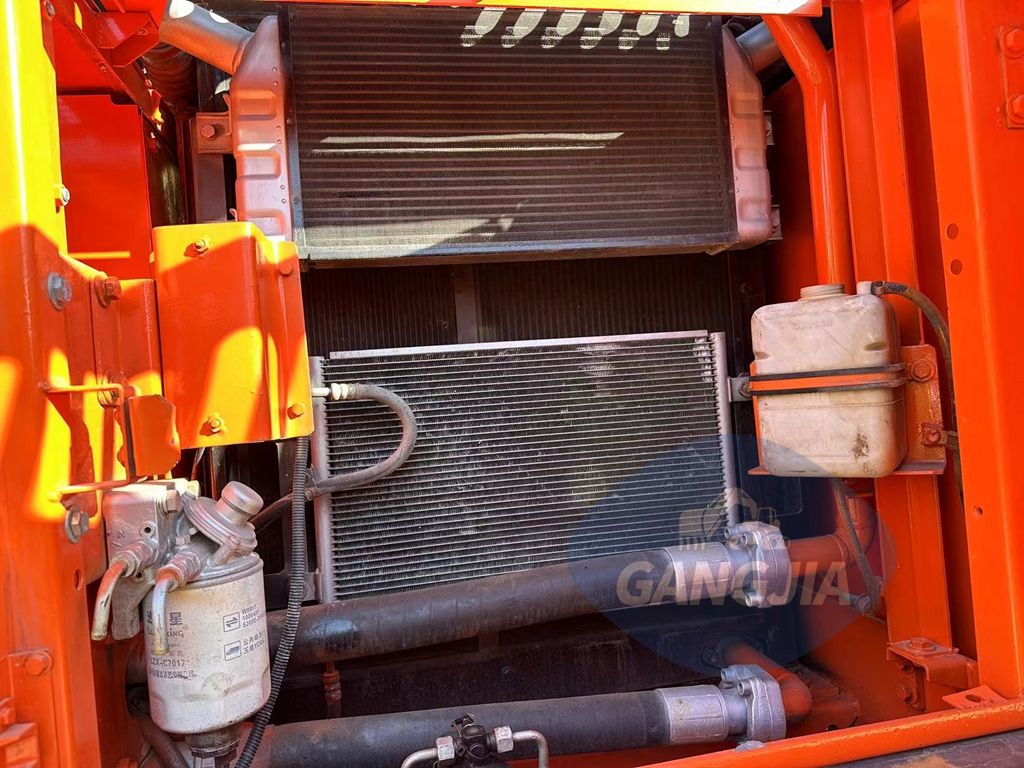

Cooling method Water cooling

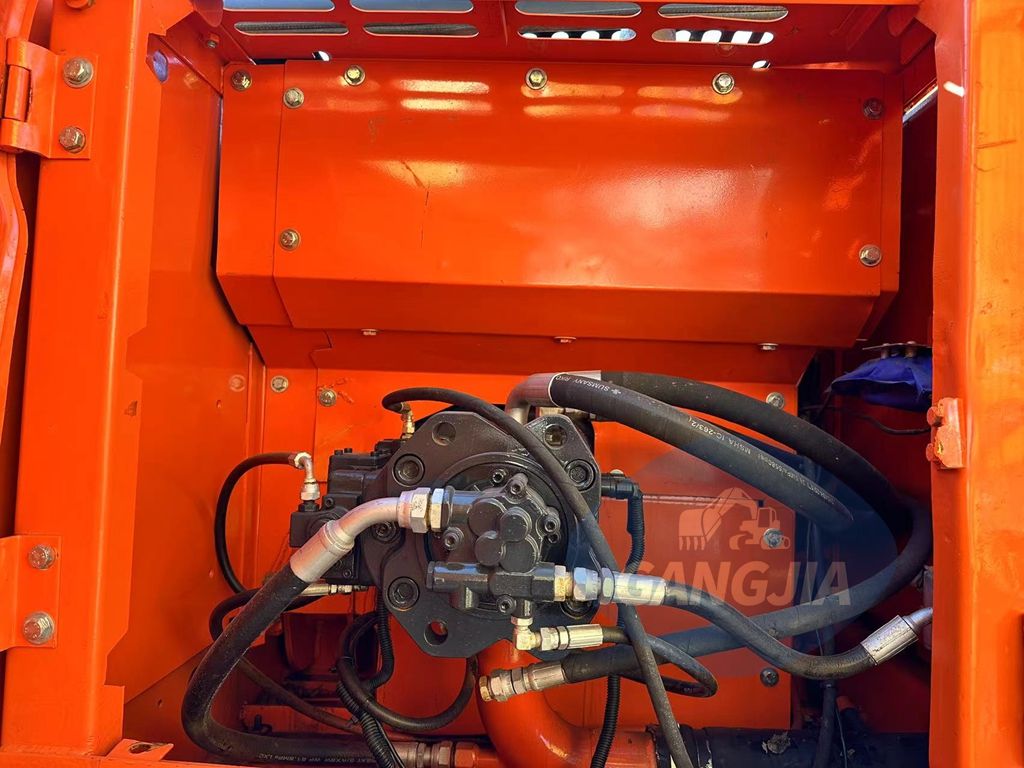

Hydraulic system

Main pump type Variable axial piston pump × 2 + gear pump

Main overflow set pressure (Mpa) 330

Main pump maximum flow (l/min) 215×2

Swing hydraulic circuit (Mpa) 281

Oil capacity

Fuel tank (L) 400

Main body dimensions

Total length for transportation (mm) 9510

Total width for transportation (mm) 2990

Total height for transportation (mm) 3030

Total height of cab (mm) 3000

Counterweight ground clearance (mm) 1105

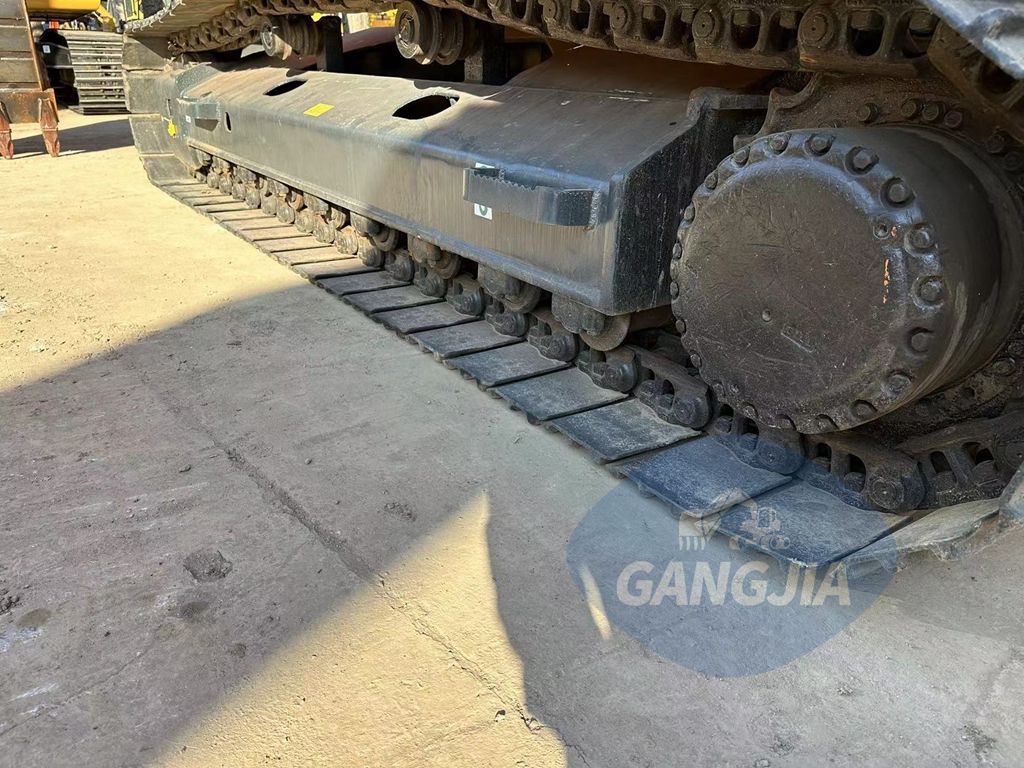

Track ground length (mm) 3645

Total length of crawler (mm) 4440

Track shoe width (mm) 600

Total width of crawler (mm) 2990

Track gauge (mm) 2390

Minimum ground clearance (mm) 480

Rear end turning radius (mm )2750

Operating range

Maximum digging radius (mm) 9910 (9580/10445)

Maximum digging radius of parking surface (mm) | 9735 (9400/10230)

Maximum digging depth (mm) 6630 (6125/7230)

Maximum digging height (mm) 9660 (9825/9870)

Maximum unloading height (mm) 6810 (6885/7020)

Maximum vertical digging depth (mm) 6045 (6035/6560)

Maximum effective digging depth (mm) | 6445 (5930/7070)

Bulldozer lifting or pushing depth (mm) without bulldozer blade
