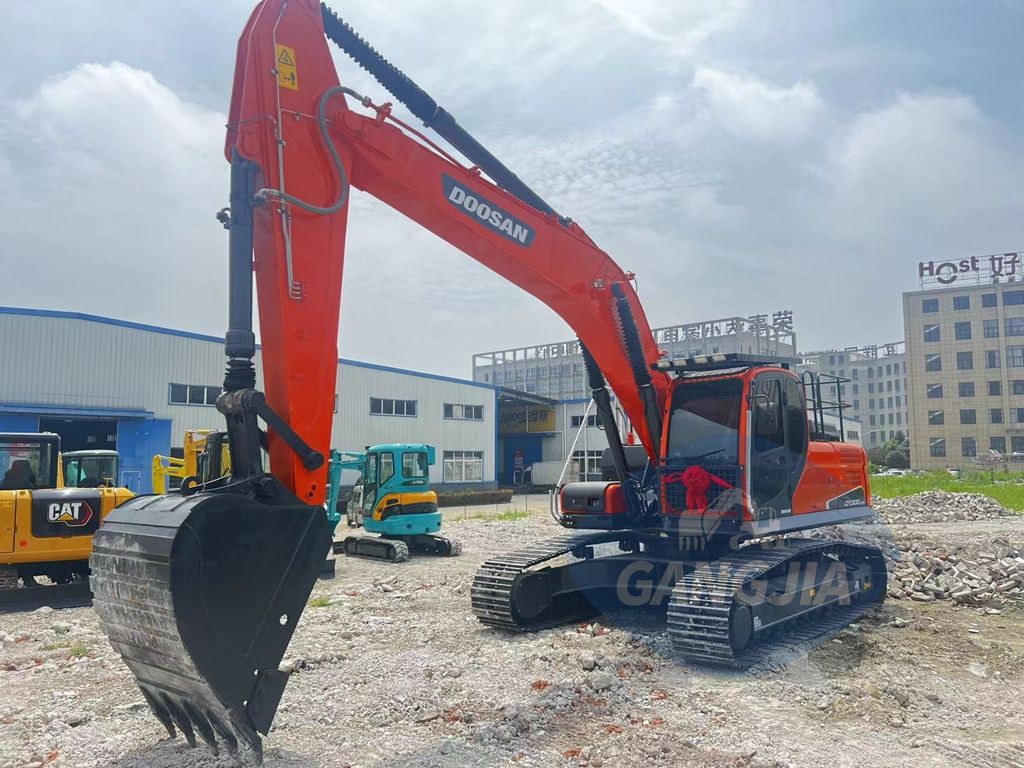

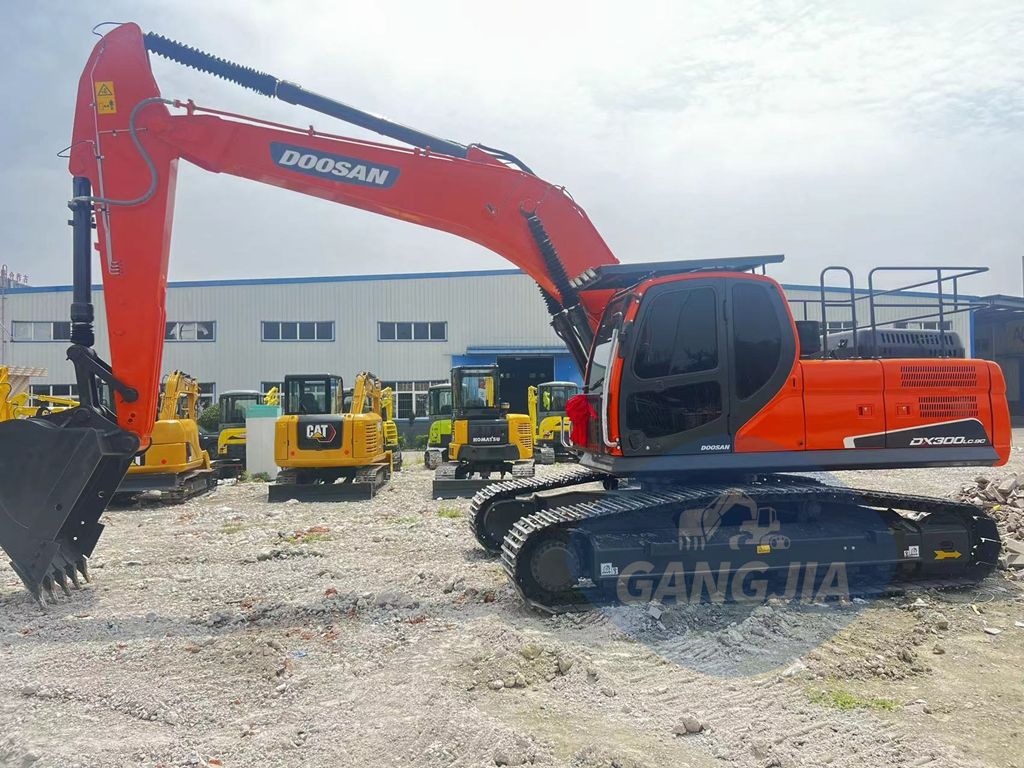

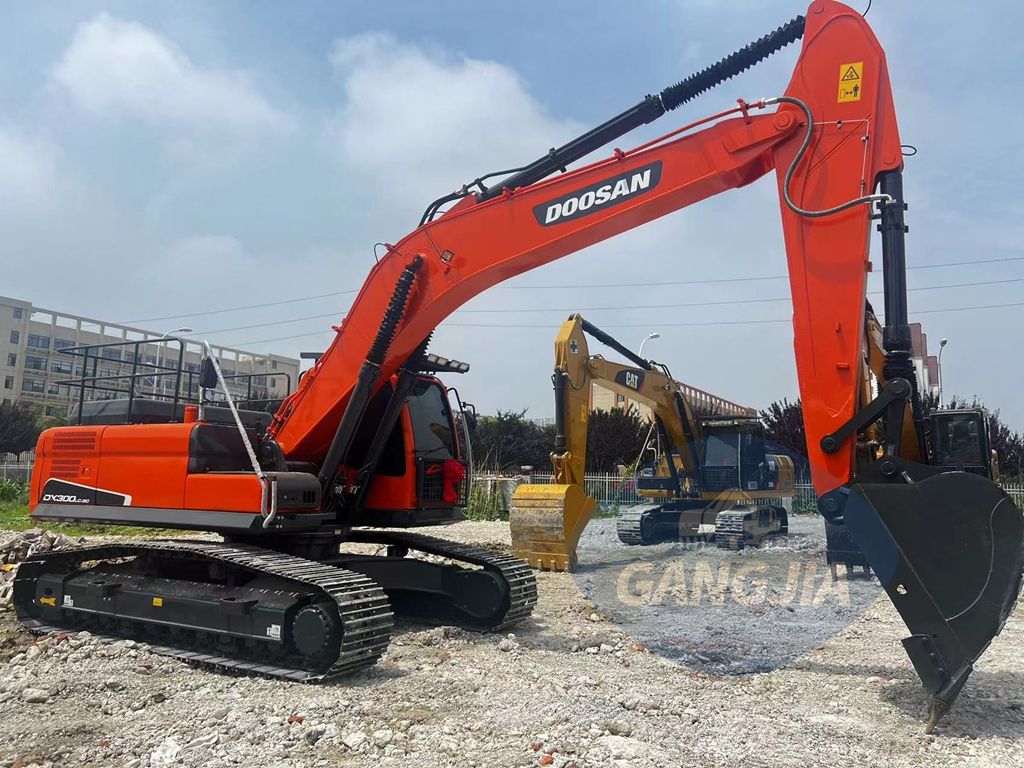

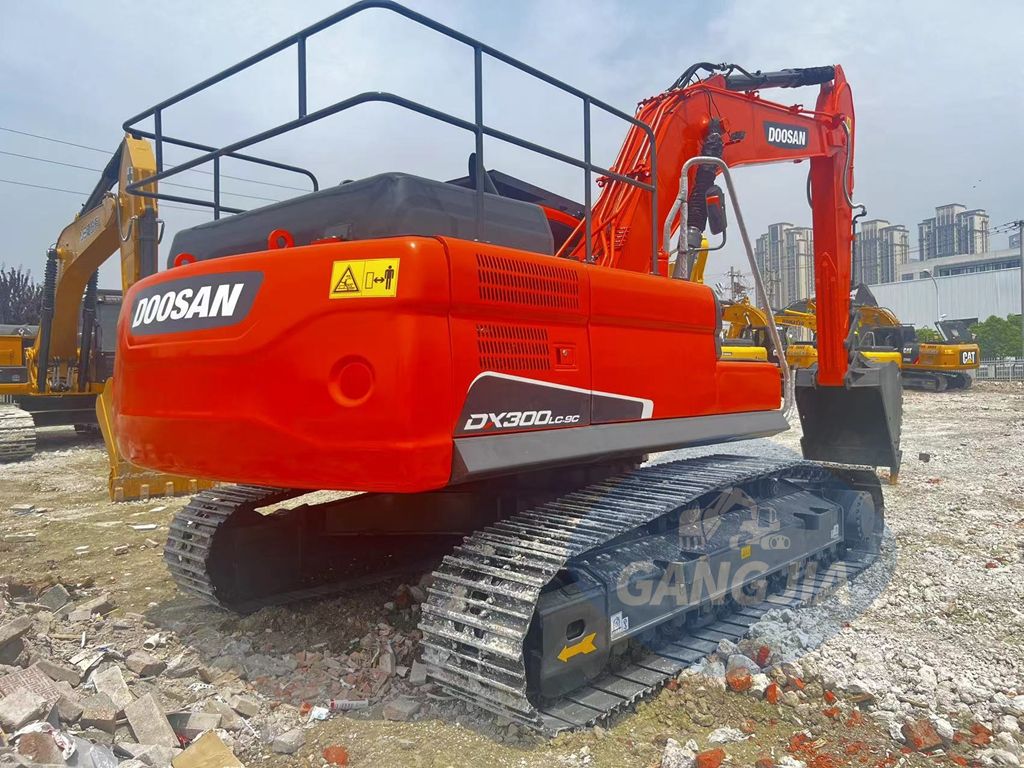

Doosan DX300LC excavator parameter configuration

Specifications

Machine operating weight (kg) 29300

Bucket capacity (m³) 1.27

Boom length (mm) 6245

Arm length (mm) 3100/2500/3750

Place of origin Yantai, China

Tonnage (tons) 30

Power Traditional power

Bucket backhoe

Manufacturer Joint venture/imported

Power Traditional power

Performance

Slewing speed (rpm) 9.9

Slewing torque (Nm) 92

Travel speed (km/h) 5.1 / 3.0

Ground pressure (Kpa) 55

Bucket digging force (kN) 188.3 / 200.0

Arm digging force (kN) 127.5 / 135.3

Power system

Engine model DE08TIS

Rated power (kw/rpm) 151 (200) / 1900

Displacement (L) 8.07

Number of cylinders (pcs) 6

Cylinder diameter × stroke (mm) 111 × 139

Working mode 4-stroke, water-cooled, direct injection

Hydraulic system

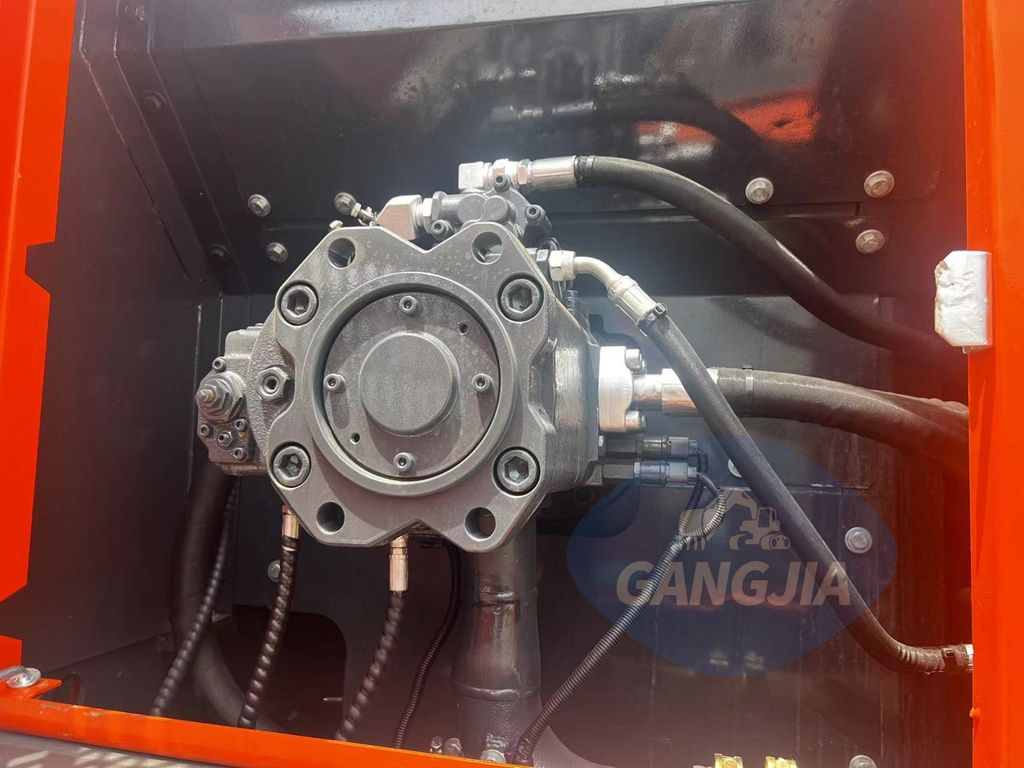

Main pump type variable piston pump

Main overflow set pressure (Mpa) standard 32.4/boost 34.3

Main pump maximum flow (l/min) 2 × 247

Travel hydraulic circuit (Mpa) 32.4

Slewing hydraulic circuit (Mpa )27

Pilot pump flow (L/min) 28.5

Is the hydraulic crushing pipeline standard?

Oil capacity

Fuel tank (L) 500

Hydraulic oil tank (L) 280

Main body size

Total length for transportation (mm) 10620

Total width for transportation (mm) 3200

Total height for transportation (mm) 3250 (to the top of the boom)

Total height of the cab (mm) 3065

Onboard width (mm) 2960

Counterweight ground clearance (mm) 1175

Track ground length (mm) 4010

Total track length (mm) 4930

Track shoe width (mm) 600

Total track width (mm) 3200

Track gauge (mm) 2600

Minimum ground clearance (mm) 500

Rear end turning radius (mm )3200

Operating range

Maximum digging radius (mm) 10745

Maximum digging depth (mm) 7365

Maximum digging height (mm) 10330

Maximum unloading height (mm) 7260

Maximum vertical digging depth (mm) 6180

Maximum effective digging depth (mm) 7180/6615/7895
