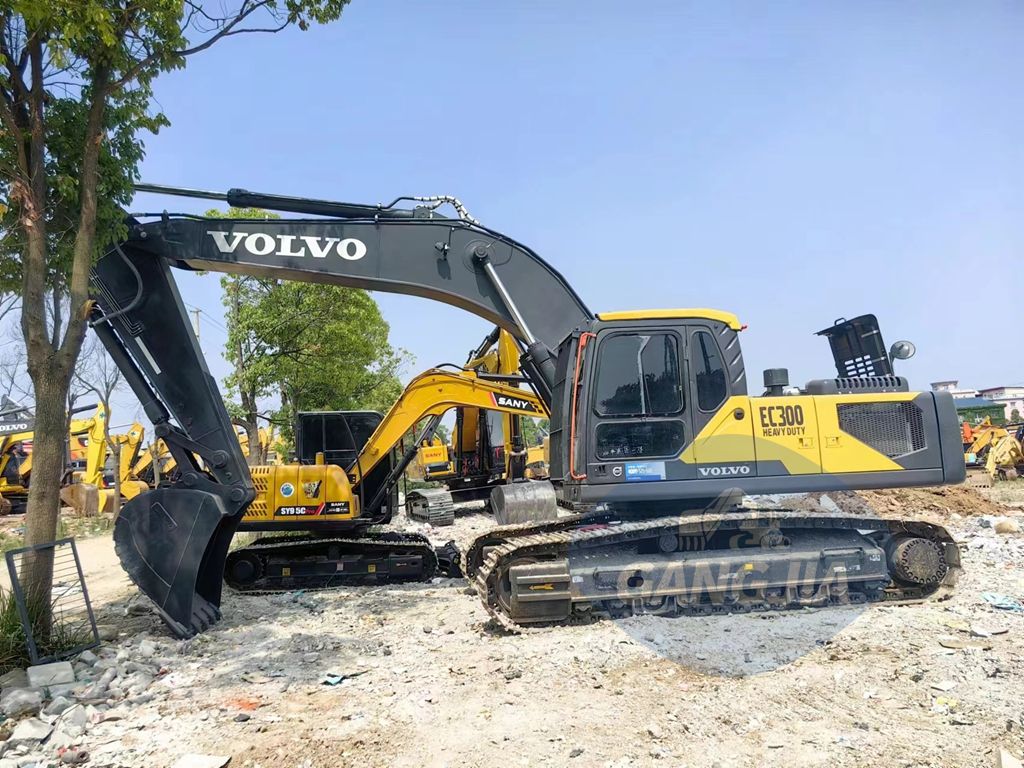

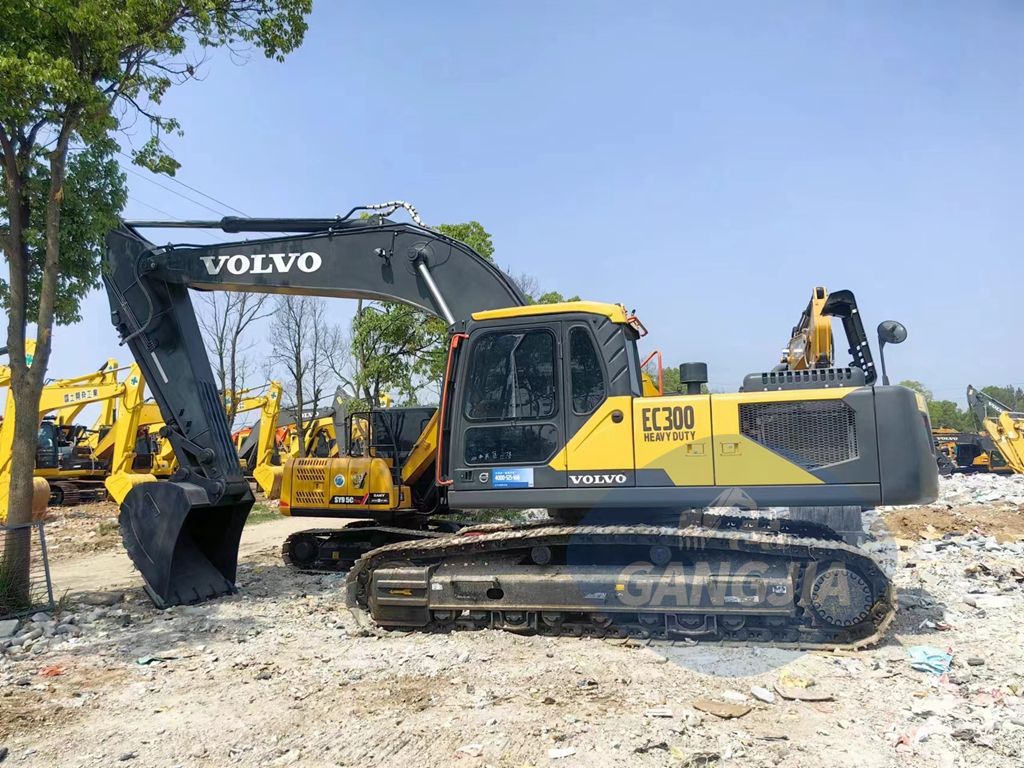

Volvo EC300DL excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Joint venture/Import

Bucket backhoe

Tonnage (tons) 30

Machine working weight (kg) 30040

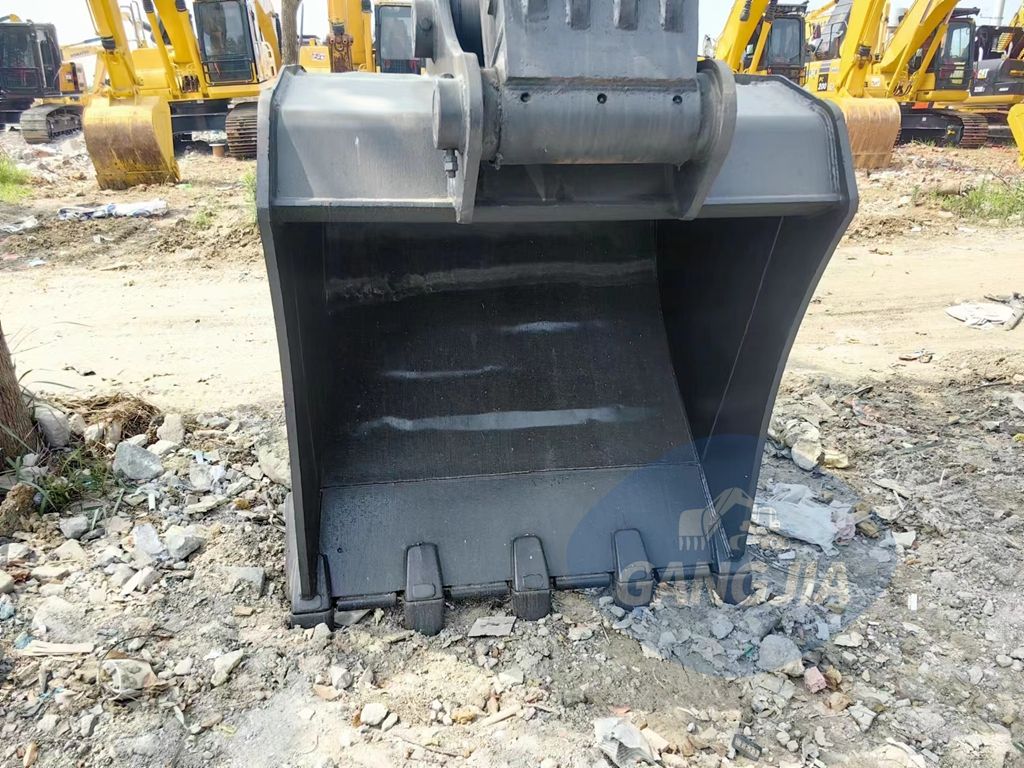

Bucket capacity (m³) 1.4

Boom length (mm) 6200

Arm length (mm) 2550

Performance

Slewing speed (rpm) 10.7

Slewing torque (Nm) 110.9

Travel speed (km/h) 3.4/5.4

Bucket digging force (kN) 186

Arm digging force (kN) 161

Maximum traction force (kN) 247

Power system

Engine model D7E

Rated power (kw/rpm) 170/1800

Maximum torque (N.m) 1080/1350

Displacement (L) 7.1

Number of cylinders (pieces) 6

Cylinder diameter × stroke (mm) 108X130

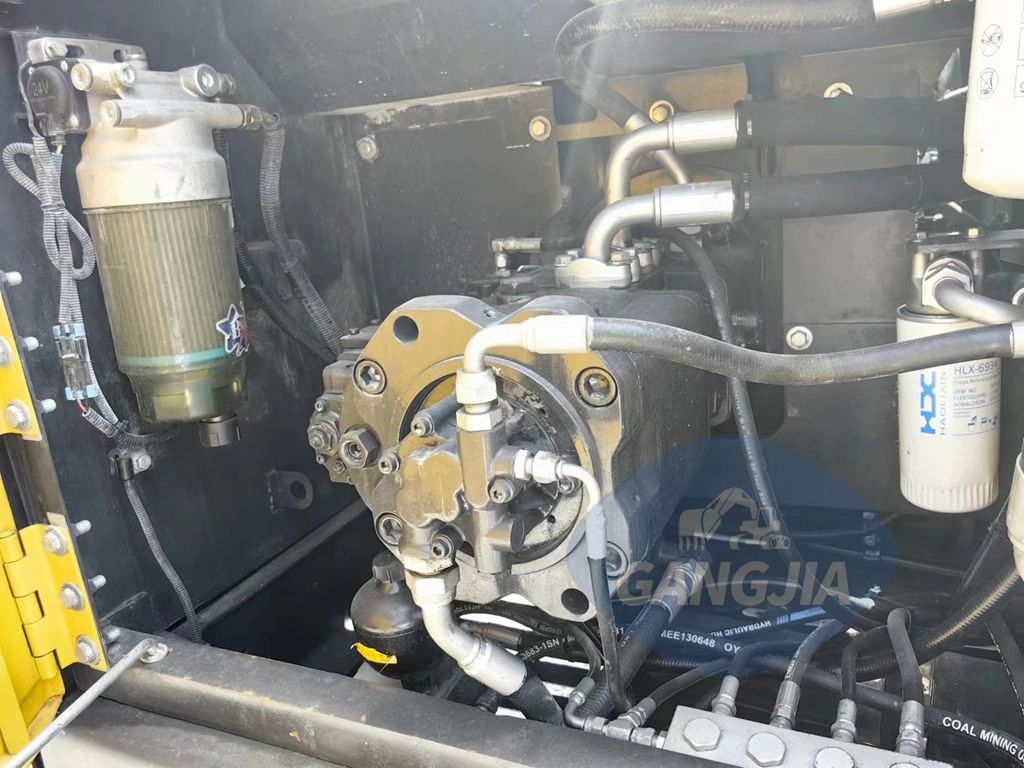

Hydraulic system

Maximum flow of main pump (l/min) 2 x 263

Pilot pump flow (L/min) 3.9

Working hydraulic circuit (Mpa) 33.3/36.3

Travel hydraulic circuit (Mpa) 36.3

Swing hydraulic circuit (Mpa) 27.9

Boom cylinder - number × cylinder diameter × stroke (mm) 2 × 140 x 1480

Arm cylinder - number × cylinder diameter × stroke (mm) 1 × 150 x 1745

Bucket cylinder - number × cylinder diameter × stroke (mm) 1 × 140 x 1140

Oil capacity

Fuel tank (L) 470

Hydraulic oil tank (L) 195

Hydraulic system (L) 400

Engine oil replacement amount (L) 32

Coolant (L )41

Main dimensions

Total transport length (mm) 10640

Total transport width (mm) 3190

Total cab height (mm) 3090

Onboard width (mm) 2890

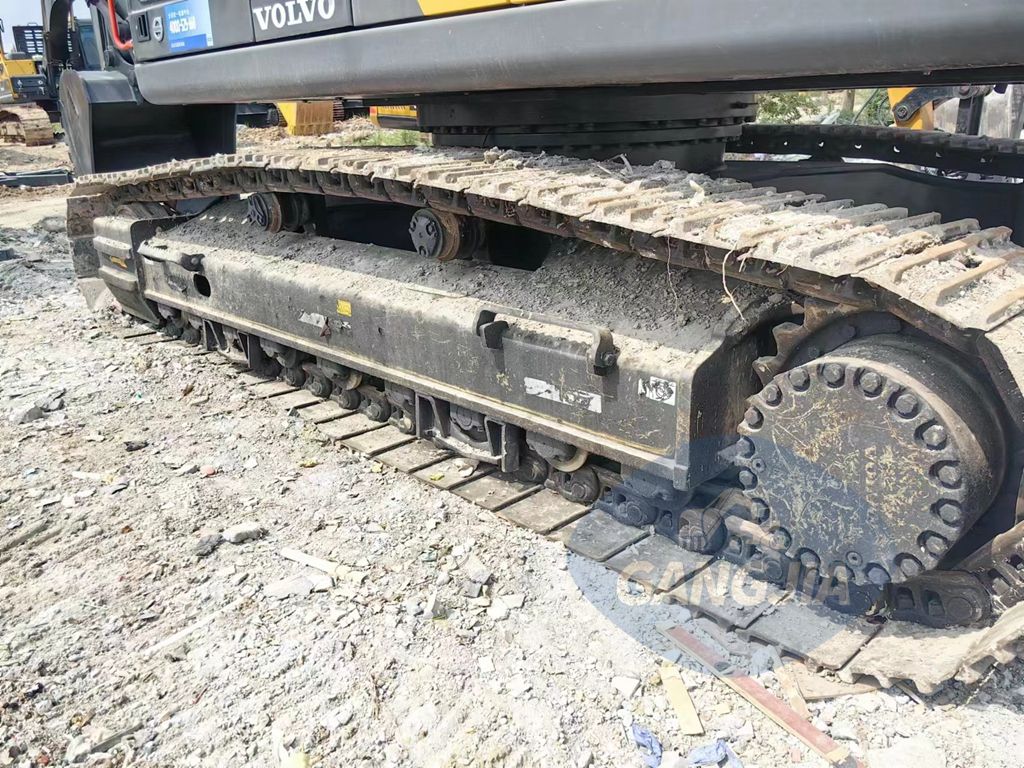

Track ground length (mm) 4015

Total track length (mm) 4870

Track shoe width (mm) 600

Track gauge (mm) 2590

Minimum ground clearance (mm) 480

Counterweight ground clearance (mm) 1135

Number of supporting wheels (single side) (pcs) 9

Number of chain wheels (single side) (pcs) 2

Number of track shoes (single side) (pcs) 50

Operating range

Maximum digging radius (mm) 10190

Maximum digging radius of parking surface (mm) 9980

Maximum digging depth (mm) 6850

Maximum digging height (mm) 9660

Maximum unloading height (mm) 6670

Maximum vertical digging depth (mm) 5730
