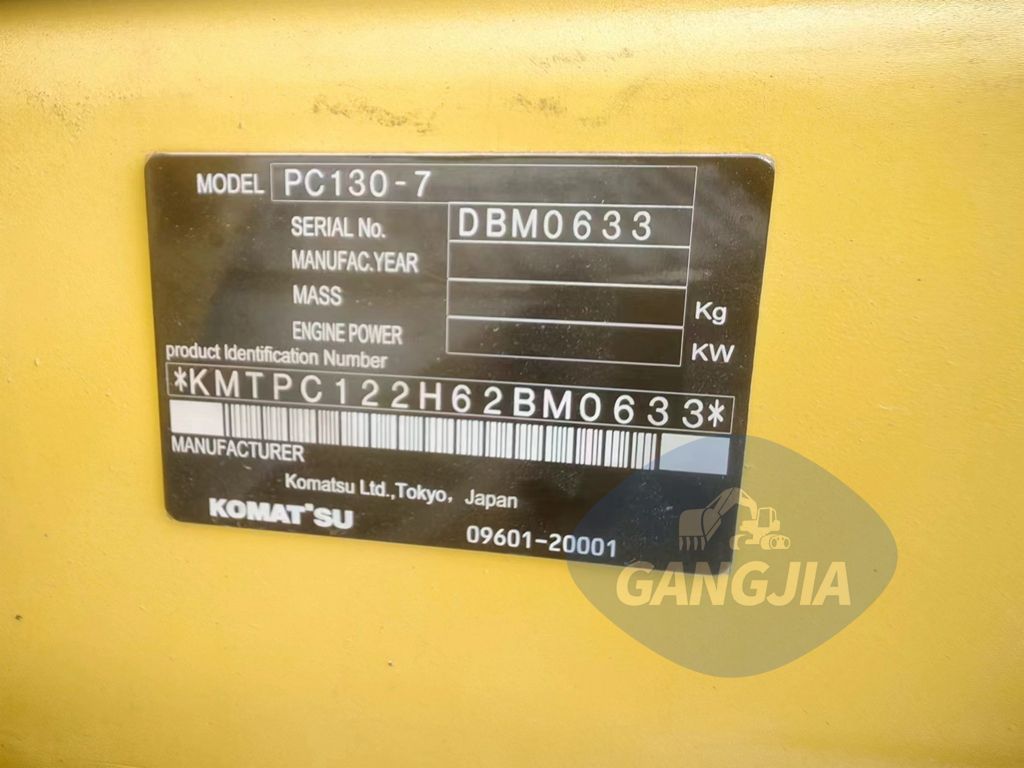

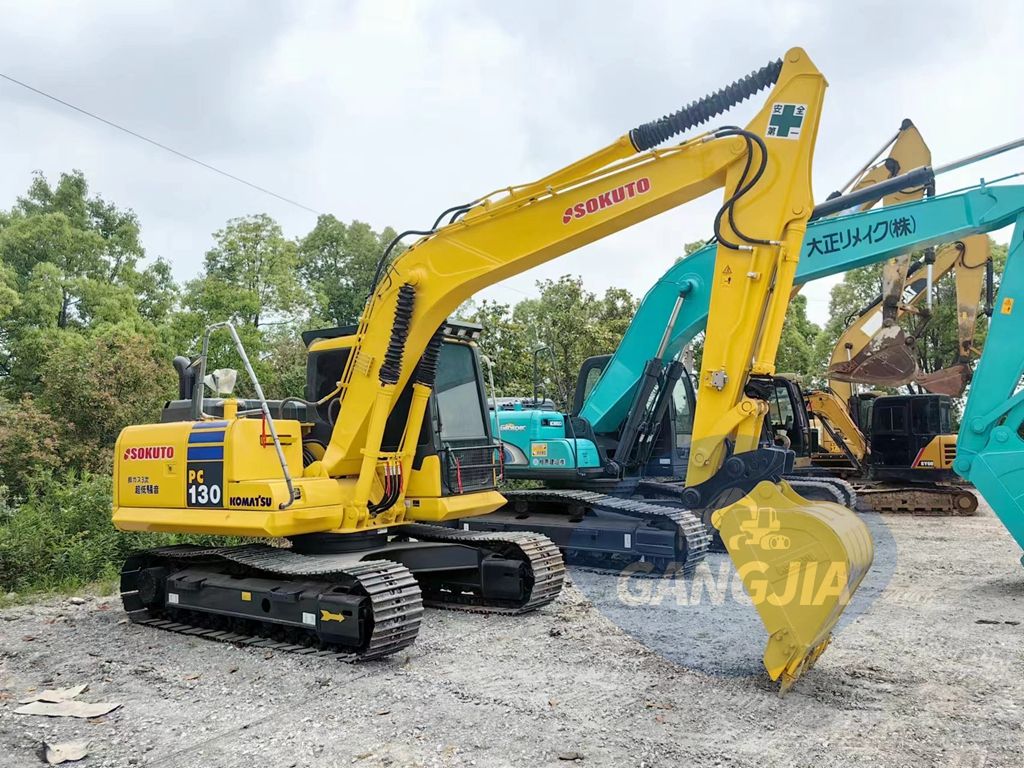

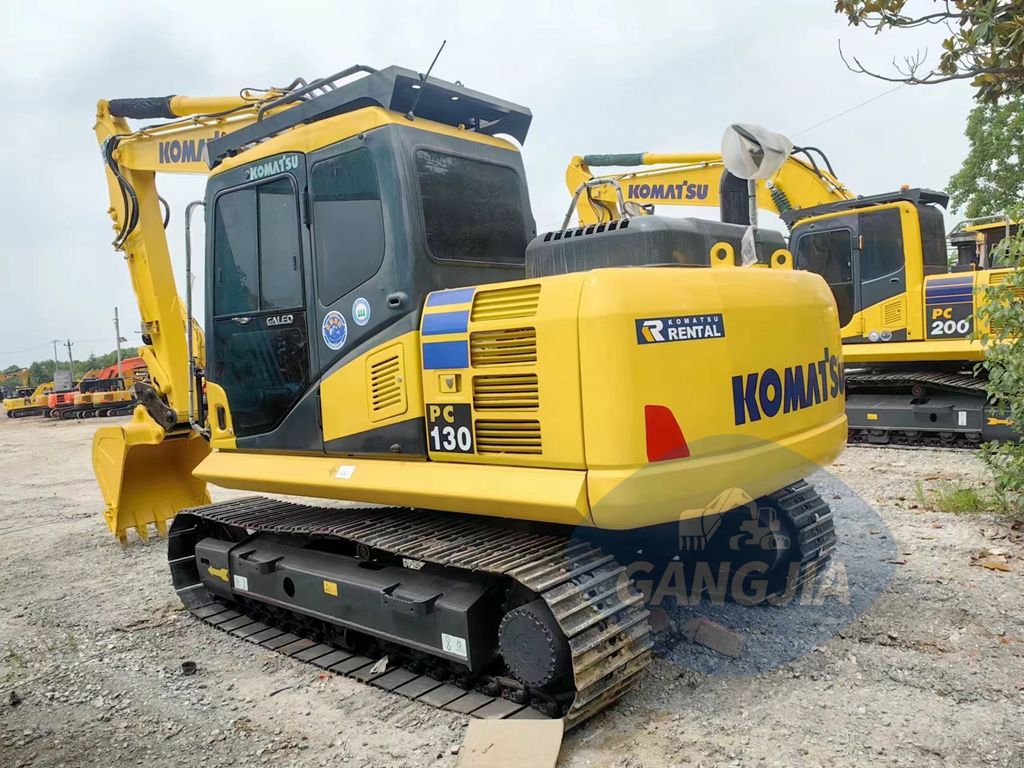

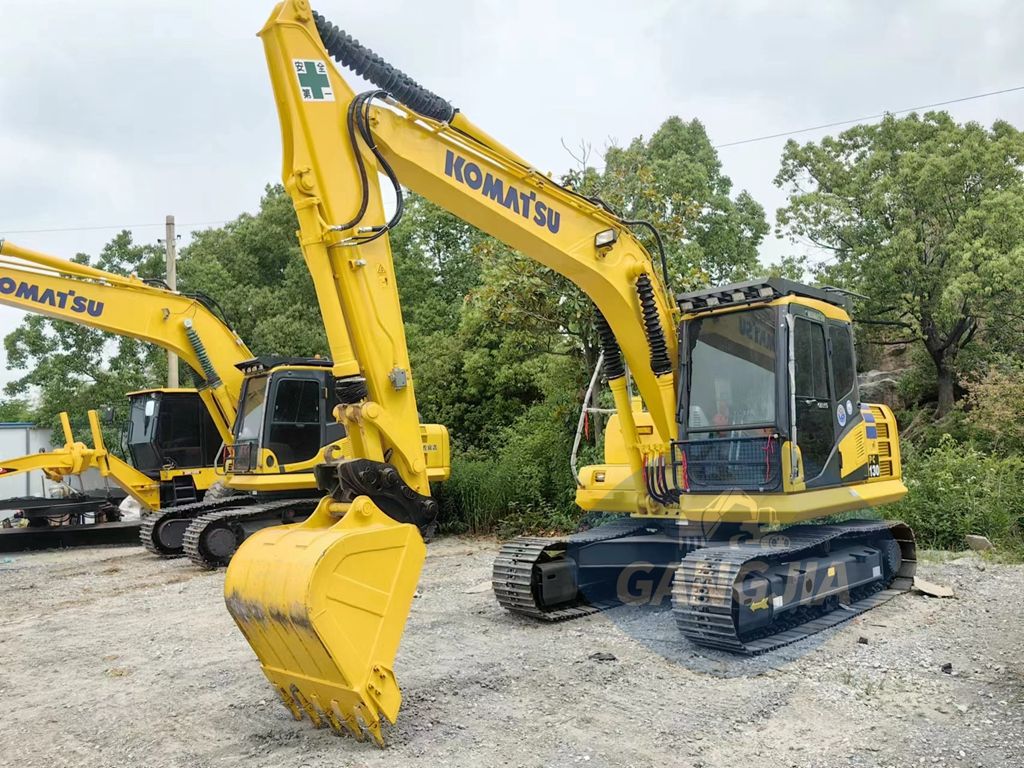

Komatsu PC130-7 excavator parameter configuration

Specifications

Machine operating weight (kg) 12600

Bucket capacity (m³) 0.53

Arm length (mm) 2100

Place of origin Jining, Shandong

Tonnage (tons) 13

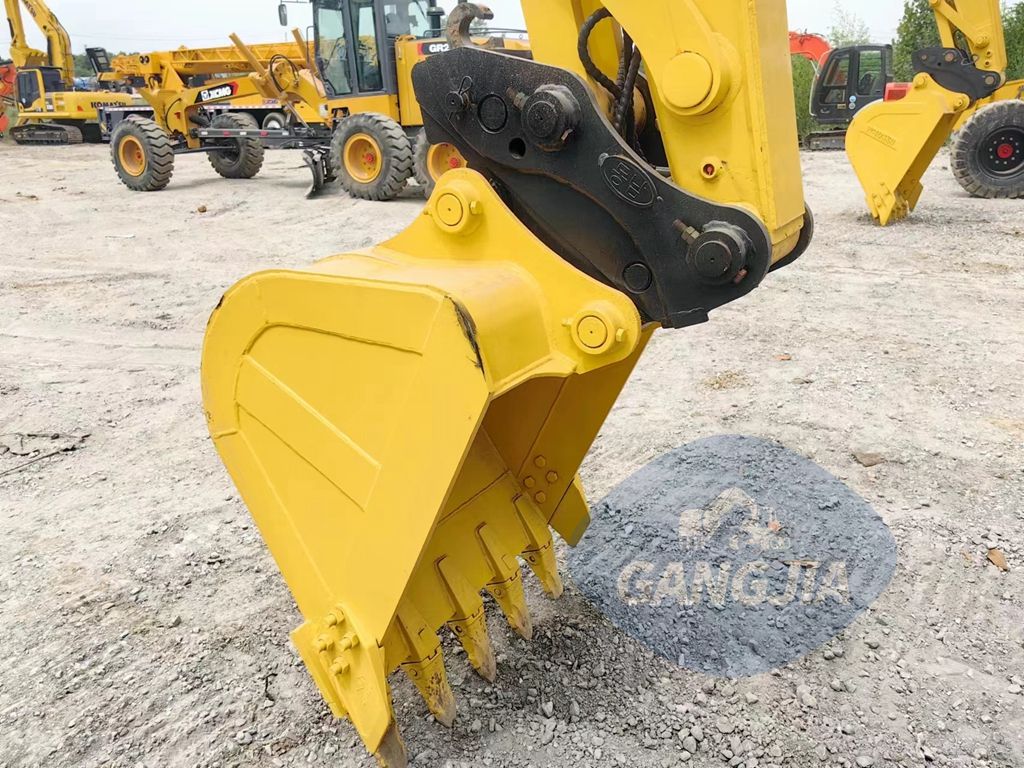

Bucket backhoe

Manufacturer joint venture/import

Power conventional power

Bucket backhoe

Manufacturer joint venture/import

Power conventional power

Performance

Slewing speed (rpm) 11

Travel speed (km/h) 2.7-5.5

Gradability (%) 70/30°

Ground pressure (Kpa) 38

Bucket digging force (kN) 93.2

Arm digging force (kN) 61.8

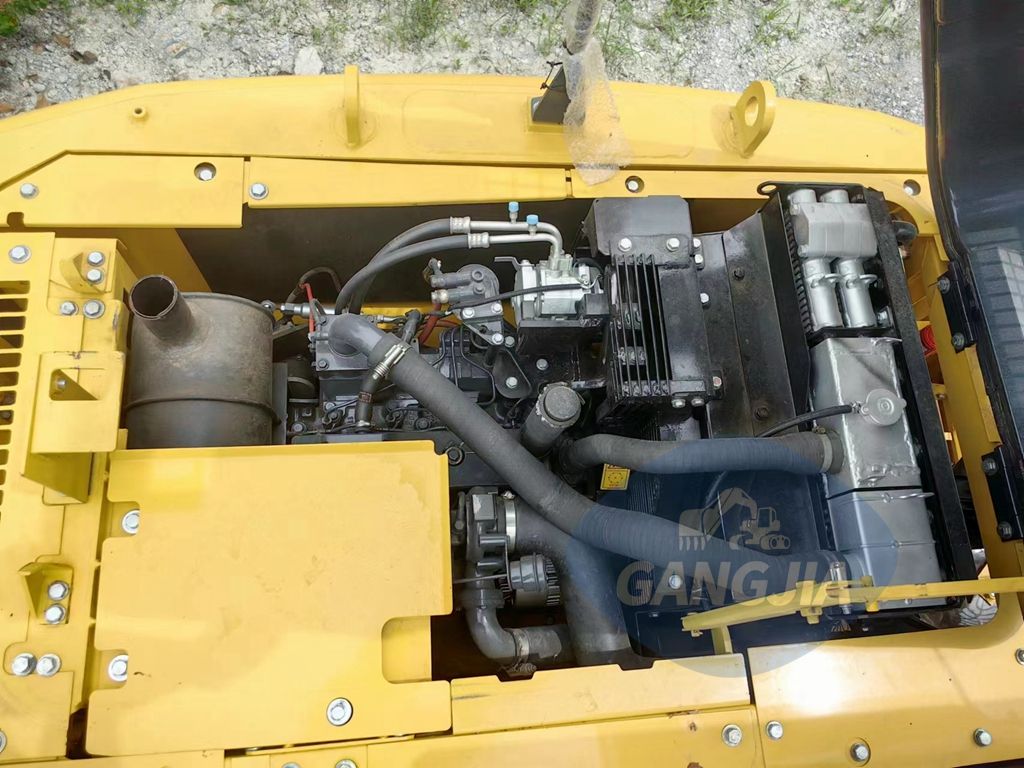

Power system

Engine model Komatsu SAA4D95LE-3

Rated power (kw/rpm) 66/2200

Displacement (L) 3.26

Cooling method Water cooling

Working mode Direct injection, turbocharged, intercooled diesel engine

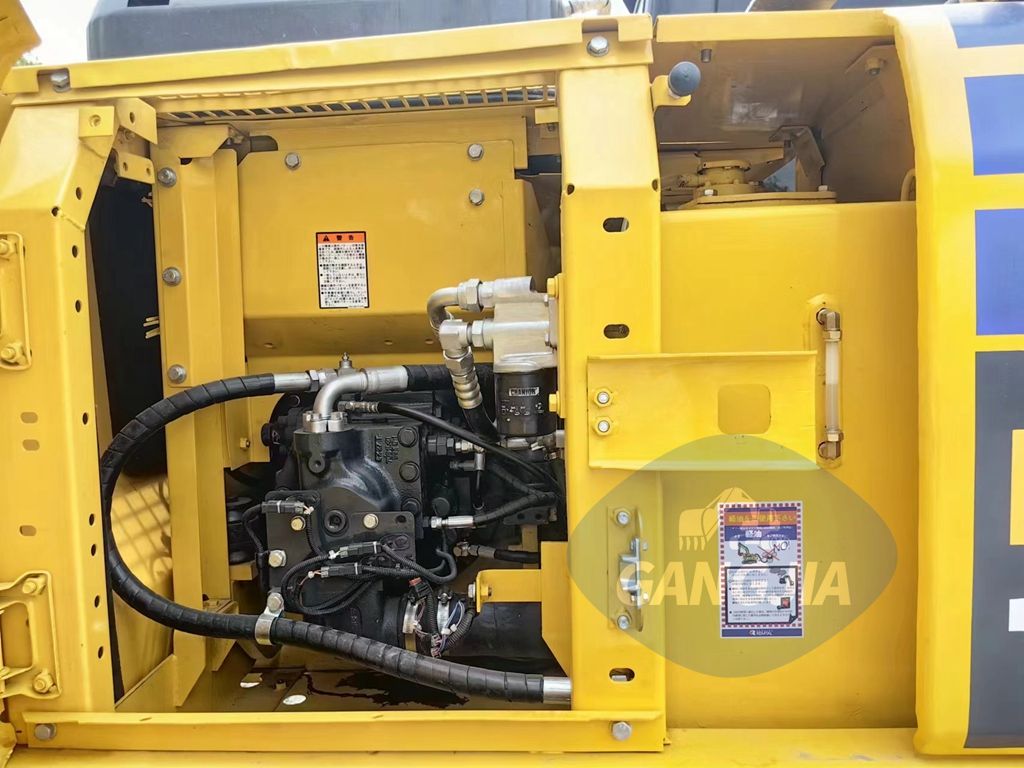

Hydraulic system

Main pump maximum flow (l/min) 226

Working hydraulic oil circuit (Mpa) 32

Travel hydraulic circuit (Mpa) 35

Slewing hydraulic circuit (Mpa) 29

Control hydraulic circuit (Mpa) 30

Is the hydraulic crushing pipeline standard?

Oil capacity

Fuel tank (L) 247

Hydraulic oil tank (L) 90

Engine oil replacement amount (L) 11

Coolant (L )13.4

Main dimensions

Total length for transport (mm)7599

Total height for transport (mm)2175

Total height of cab (mm)2175

Counterweight ground clearance (mm)855

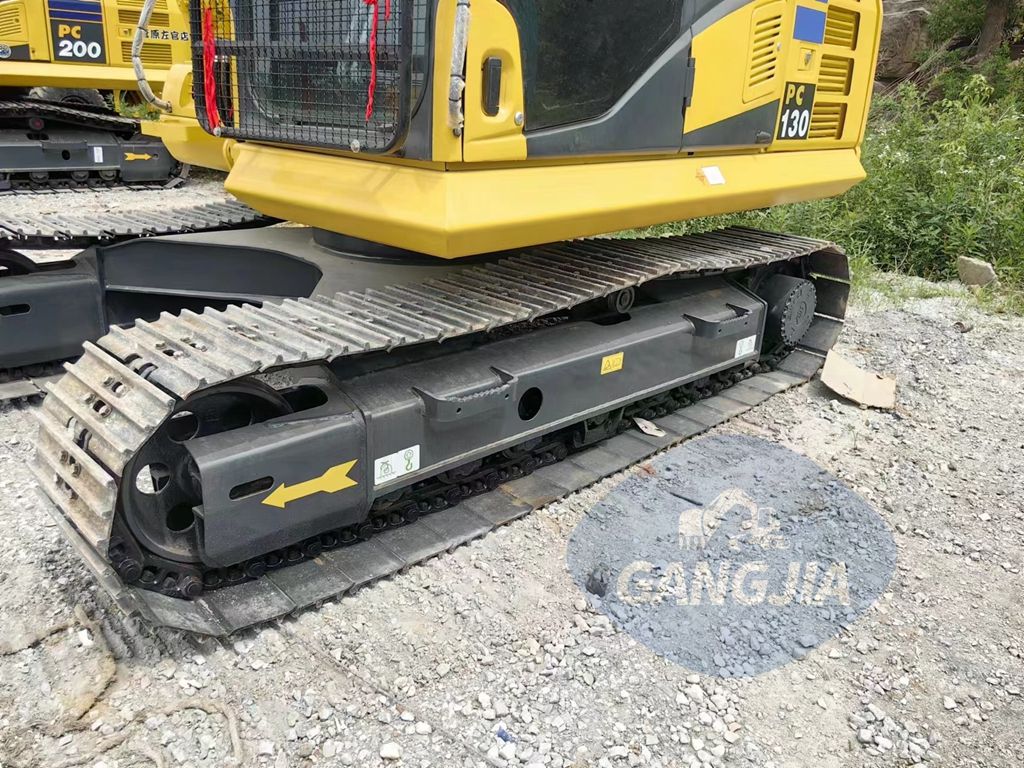

Track ground length (mm)2880

Total length of crawler (mm)3610

Track shoe width (mm)500

Track gauge (mm)1990

Minimum ground clearance (mm)400

Rear end turning radius (mm)2110

Operating range

Maximum digging radius (mm)8290

Maximum digging radius of parking surface (mm)8170

Maximum digging depth (mm)5520

Maximum digging height (mm)8610

Maximum unloading height (mm)6170

Maximum vertical digging depth (mm)4940

Maximum effective digging depth (mm)5315

Bulldozer lift or push depth (mm)No bulldozer
