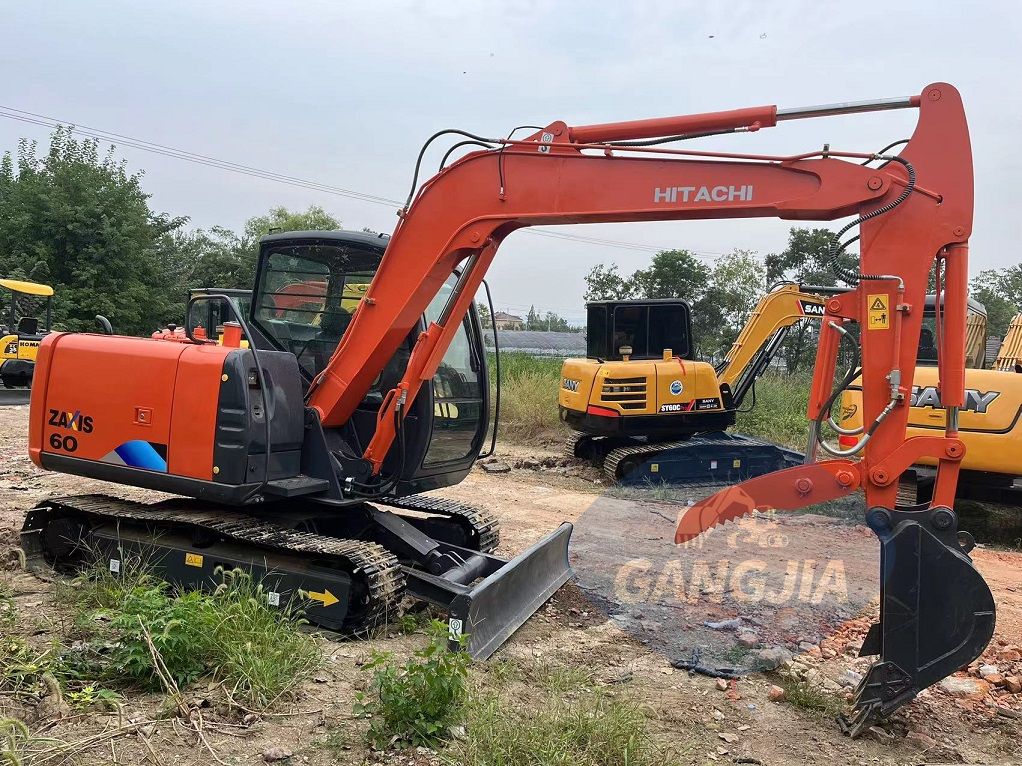

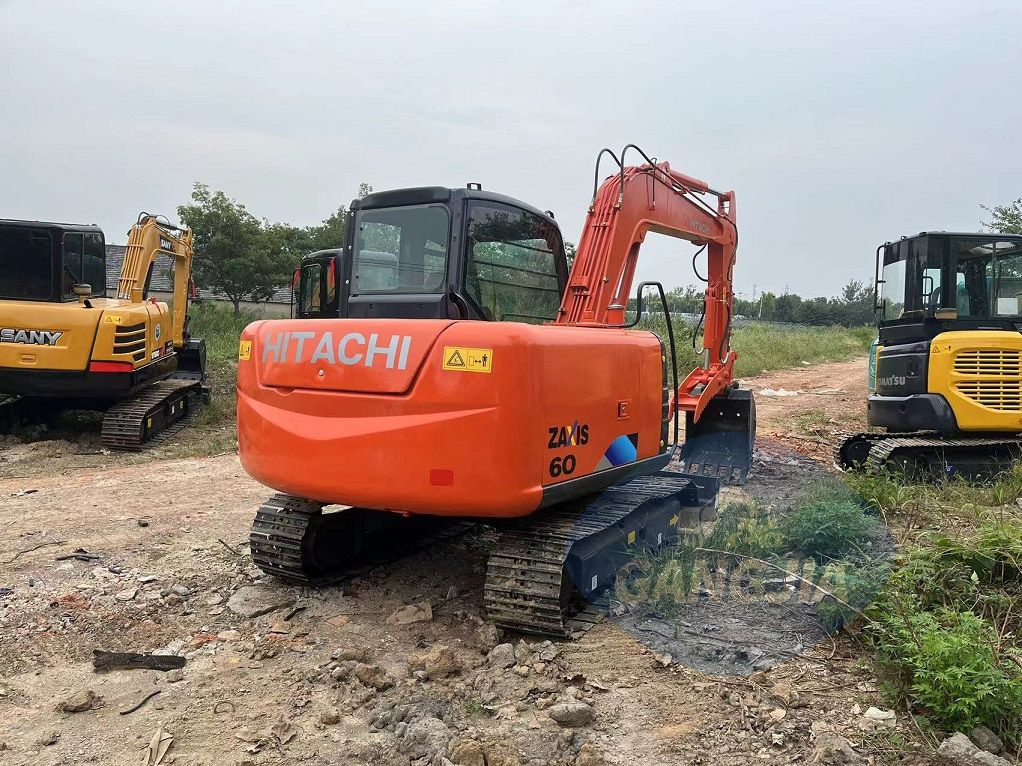

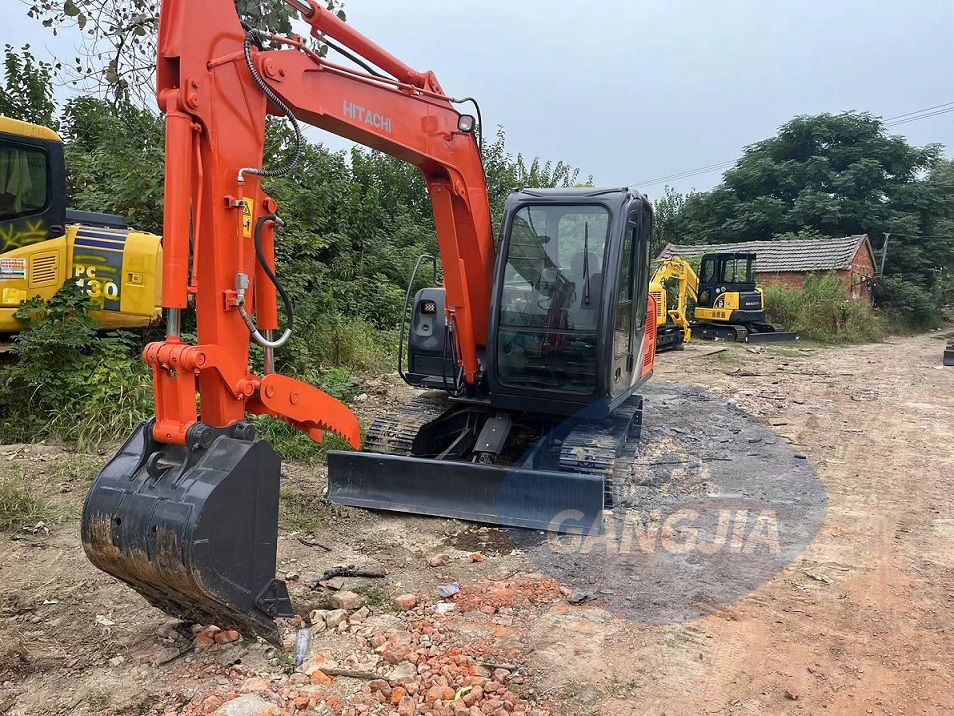

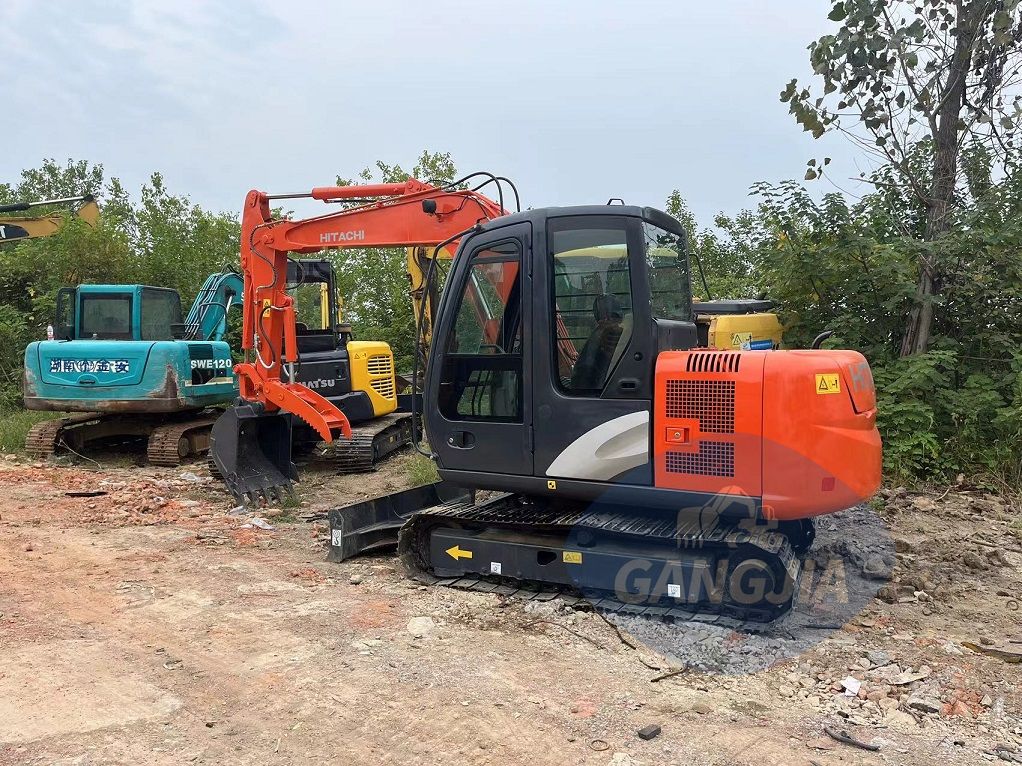

Hitachi ZX60 excavator parameter configuration

Specifications

Power Traditional power

Manufacturer Joint venture/Import

Bucket backhoe

Tonnage (tons) 6

Machine working weight (kg) 5850

Bucket capacity (m³) 0.22

Boom length (mm) 3.49

Arm length (mm) 1.6 (reinforced version)

Place of origin Hefei, Anhui

Performance

Slewing speed (rpm) 9.3

Travel speed (km/h) 2.5/4.5

Gradability (%) 70/35°

Ground pressure (Kpa) 33

Bucket digging force (kN) 41.4

Arm digging force (kN) 28.4

Power system

Engine model ISUZU CC-4JG1

Rated power (kw/rpm) 40.5/2100

Displacement (L) 3.059

Number of cylinders (pcs) 4

Cooling method Water cooling

Working mode Direct injection

Hydraulic system

Main pump type Variable piston pump × 2 + gear pump × 2

Travel hydraulic motor type Variable swash plate piston motor × 2

Swing hydraulic motor type Axial piston motor × 1

Main overflow set pressure (Mpa) 24.5

Oil capacity

Fuel tank (L) 120

Hydraulic oil tank (L )61 (full tank 95)

Engine oil change amount (L) 12

Main body dimensions

Total length for transportation (mm) 6060

Total width for transportation (mm) 2060

Total height for transportation (mm) 2470

Total height of cab (mm) 2470

Track ground length (mm) 2000

Total length of crawler (mm) 2480

Track shoe width (mm) 400

Total width of crawler (mm) 2000

Track gauge (mm) 1600

Minimum ground clearance (mm) )310

Counterweight ground clearance (mm)620

Minimum turning radius of front working device (mm)2510

Rear end turning radius (mm)1650

Operating range

Maximum digging radius (mm)6250

Maximum digging depth (mm)3850

Maximum digging height (mm)5800

Maximum unloading height (mm)4080

Maximum vertical digging depth (mm)3300

Bulldozer lifting or pushing depth (mm)430/400
