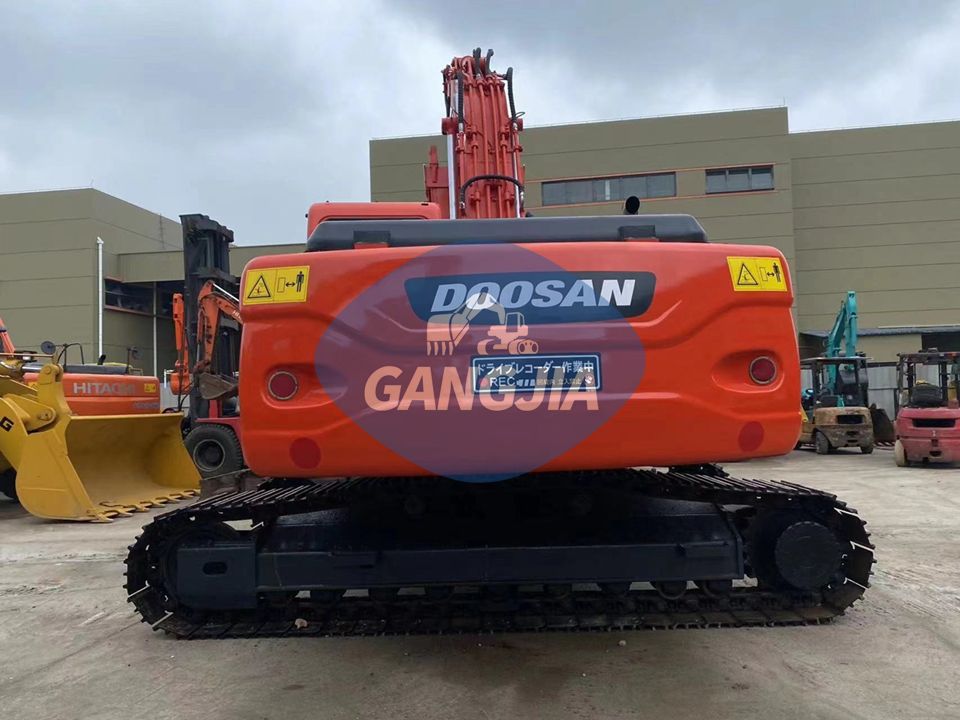

Doosan DX225LC excavator parameter configuration

Specification

Machine working weight (kg) 21500

Bucket capacity (m³)1.05

Boom length (mm) 5700

Dipper length (mm) 2900 (2400, 3500 optional)

Tonnage (tons) 22

Power traditional power

bucket backhoe

Manufacturer joint venture/import

Power traditional power

performance

Grounding specific pressure (Kpa) 0.45

Rotation speed (rpm)11

Walking speed (km/h)3.0/5.5

Climbing ability (%) 35 degrees

Bucket digging force (kN) 136.2 (144.1)

Digging force of stick (kN) 102.9 (116.6/94.1)

power system

Engine model Doosan DL06

Rated power (kw/rpm)157/1900

Cooling method: water cooling

Hydraulic system

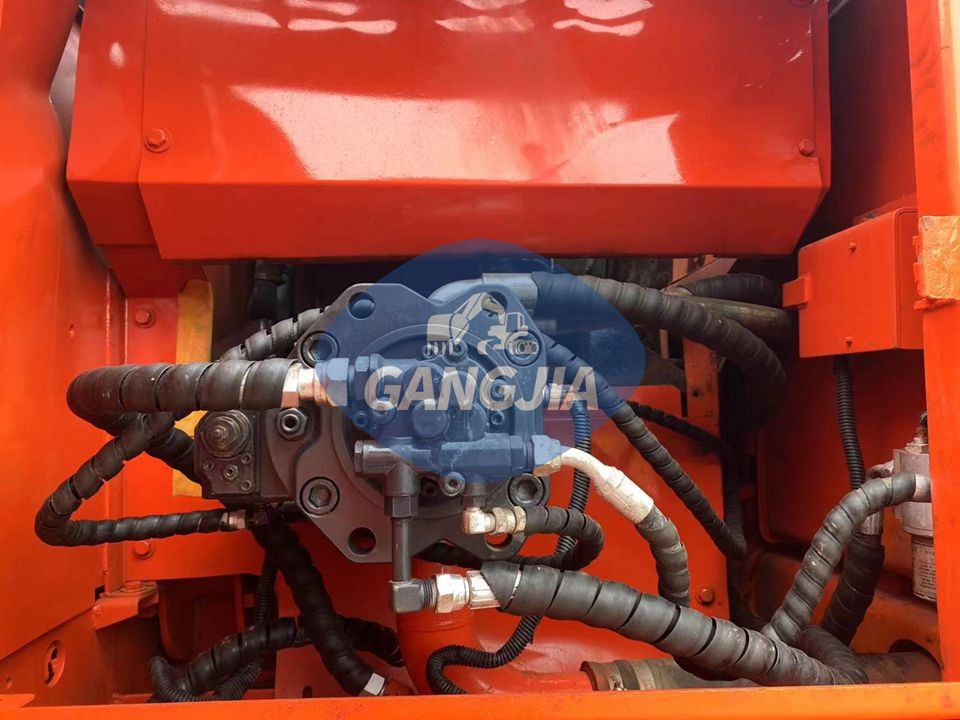

Main pump type variable axial column pump × 2 + gear pump

Main overflow set pressure (Mpa) 330

Maximum flow rate of main pump (l/min) 215×2

Rotary hydraulic circuit (Mpa) 281

oil capacity

Fuel tank (L) 400

Body size

Total transportation length (mm) 9510

Total transportation width (mm) 2990

Total transportation height (mm) 3030

Overall height of cab (mm) 3000

Counterweight ground clearance (mm) 1105

Track ground length (mm) 3645

Total track length (mm) 4440

Track shoe width (mm) 600

Total track width (mm) 2990

Track gauge (mm) 2390

Minimum ground clearance (mm) 480

Rear end turning radius (mm) 2750

Scope of work

Maximum excavation radius (mm) 9910 (9580/10445)

Maximum excavation radius of stopping surface (mm)|9735(9400/10230)

Maximum excavation depth (mm) 6630 (6125/7230)

Maximum excavation height (mm) 9660 (9825/9870)

Maximum unloading height (mm) 6810 (6885/7020)

Maximum vertical excavation depth (mm) 6045 (6035/6560)

Maximum effective excavation depth (mm)|6445(5930/7070)

Dozer blade lift or push depth (mm) without dozer blade
