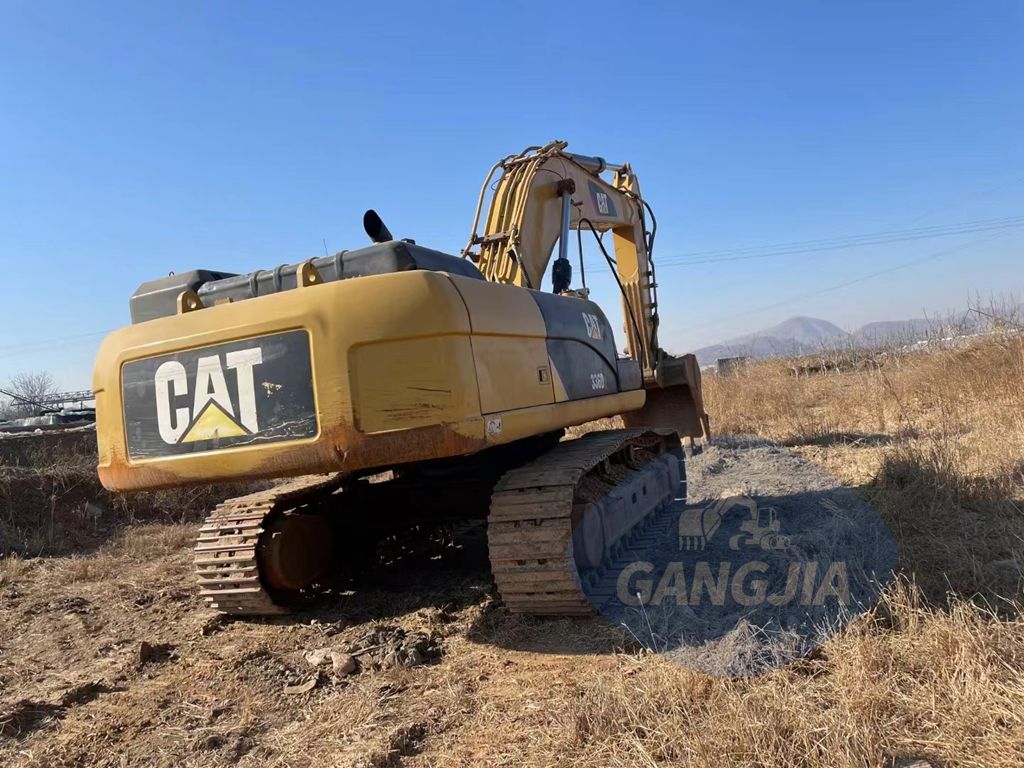

Caterpillar 336D2 hydraulic excavator parameter configuration

Specification

Power traditional power

Manufacturer joint venture/import

bucket backhoe

Tonnage (tons) 36

Machine working weight (kg) 34600

Bucket capacity (m³)1.88

Boom length (mm) 6500

Dipper length (mm) 2800

Place of Origin Xuzhou, Jiangsu

performance

Rotation speed (rpm)8.3

Rotary torque (Nm) 109

Walking speed (km/h)4.6

Climbing ability (%) 70

Maximum traction force (kN) 300

power system

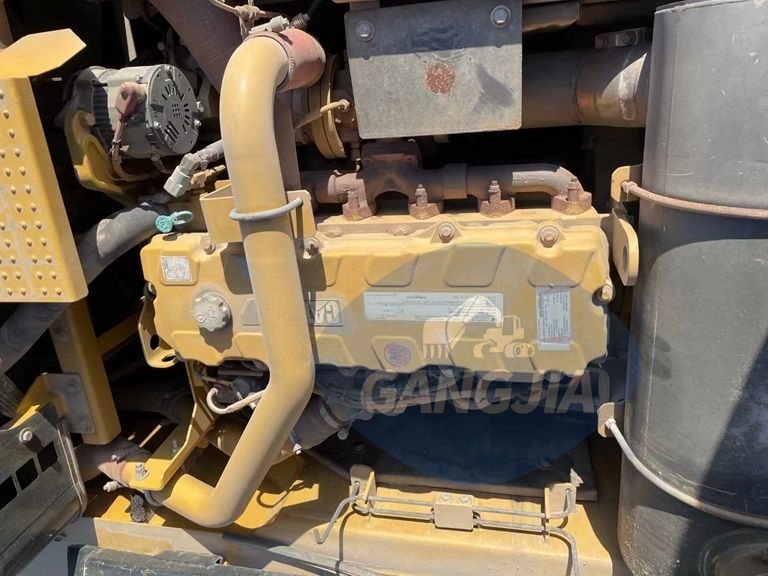

Engine model Cat C9 ACERT

Rated power (kw/rpm) 208

Displacement(L)8.8

Bore size × stroke (mm) 112 × 149

Hydraulic system

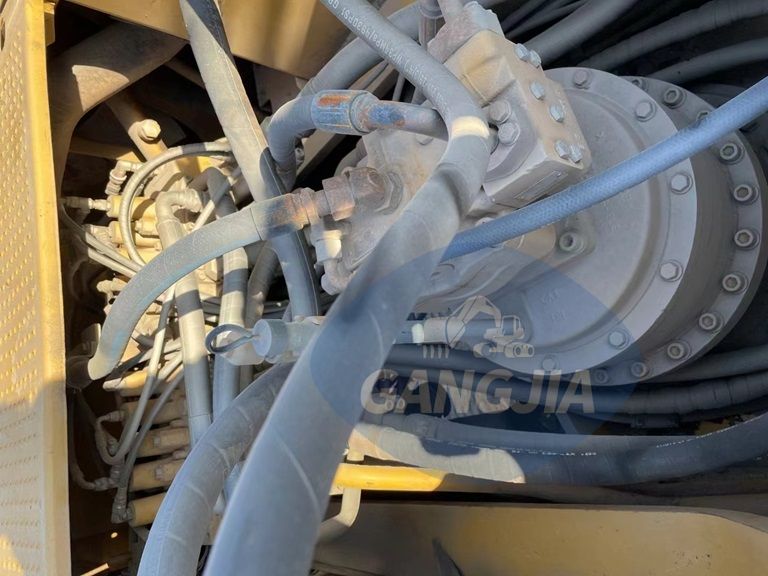

Travel hydraulic motor type 35

Rotary hydraulic motor type 28

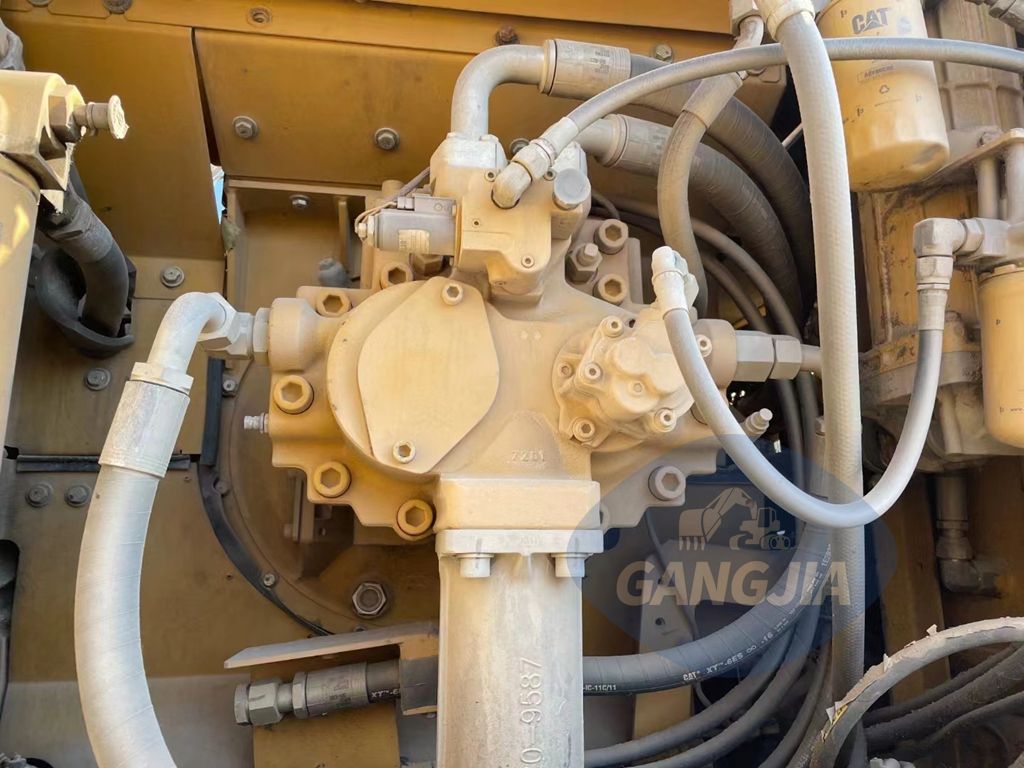

Maximum flow rate of main pump (l/min) 281

Pilot pump flow (L/min) 40

Pilot oil circuit (MPa) 4

Main overflow set pressure (Mpa) 35

Boom cylinder - number × bore × stroke (mm) 150 × 1440

Stick cylinder - number × bore × stroke (mm) 170 × 1738

Bucket cylinder - number × bore × stroke (mm) 150 × 1151

oil capacity

Fuel tank (L) 620

Hydraulic oil tank (L) 175

Hydraulic system(L)410

Engine oil replacement amount (L) 41

Coolant (L) 40

Body size

Total transportation length (mm) 11210

Total transportation width (mm) 3190

Total transportation height (mm) 3670

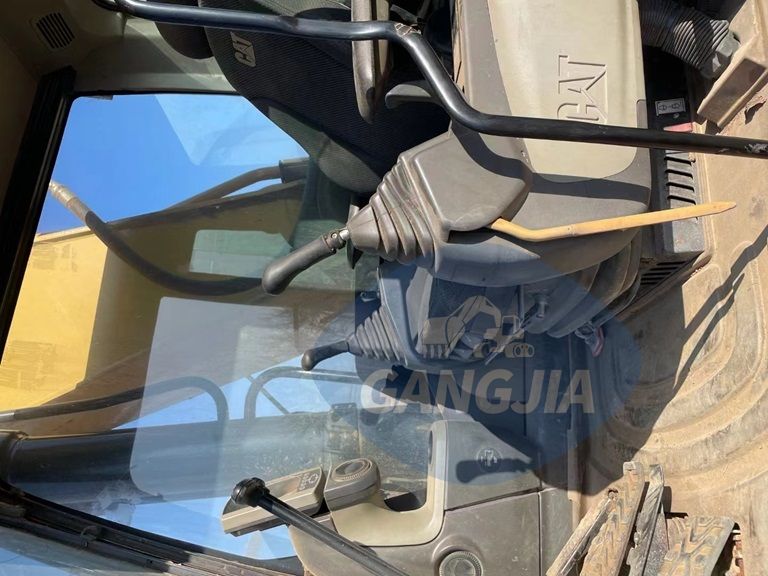

Overall height of cab (mm) 3140

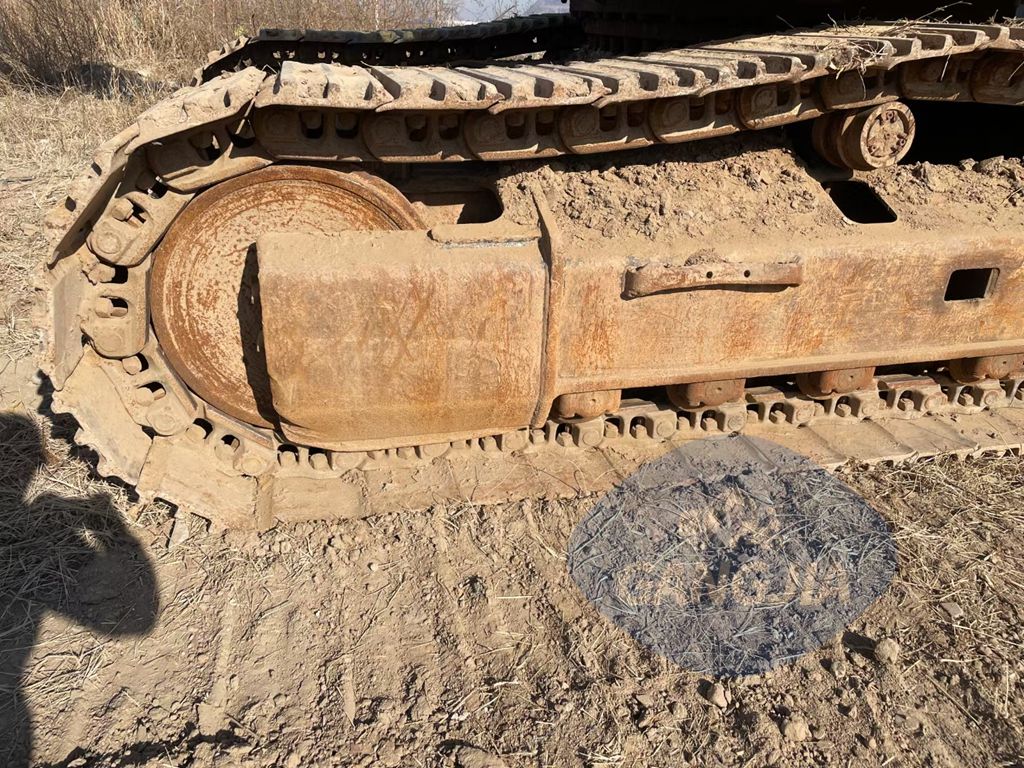

Total track length (mm) 4590

Track shoe width (mm) 600

Track gauge (mm) 2590

Minimum ground clearance (mm) 510

Counterweight ground clearance (mm) 1220

Rear end turning radius (mm) 3490

Scope of work

Maximum excavation radius of parking surface (mm) 11760

Maximum digging depth (mm) 8210

Maximum excavation height (mm) 10730

Maximum unloading height (mm) 7510

Maximum vertical excavation depth (mm) 6290
