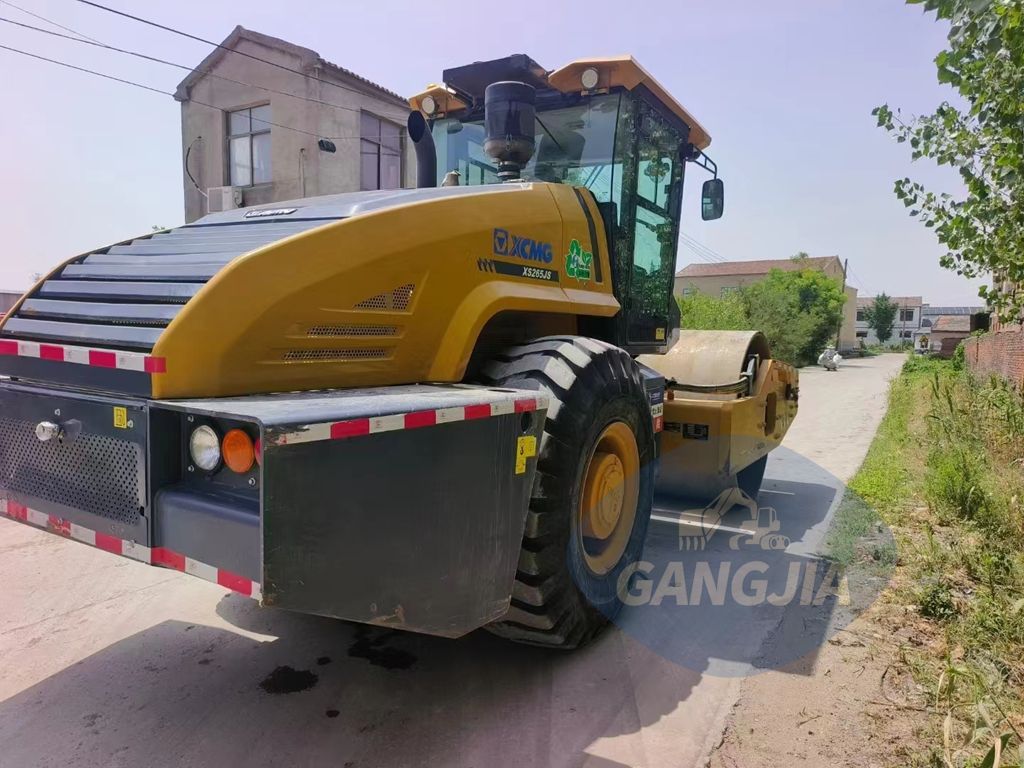

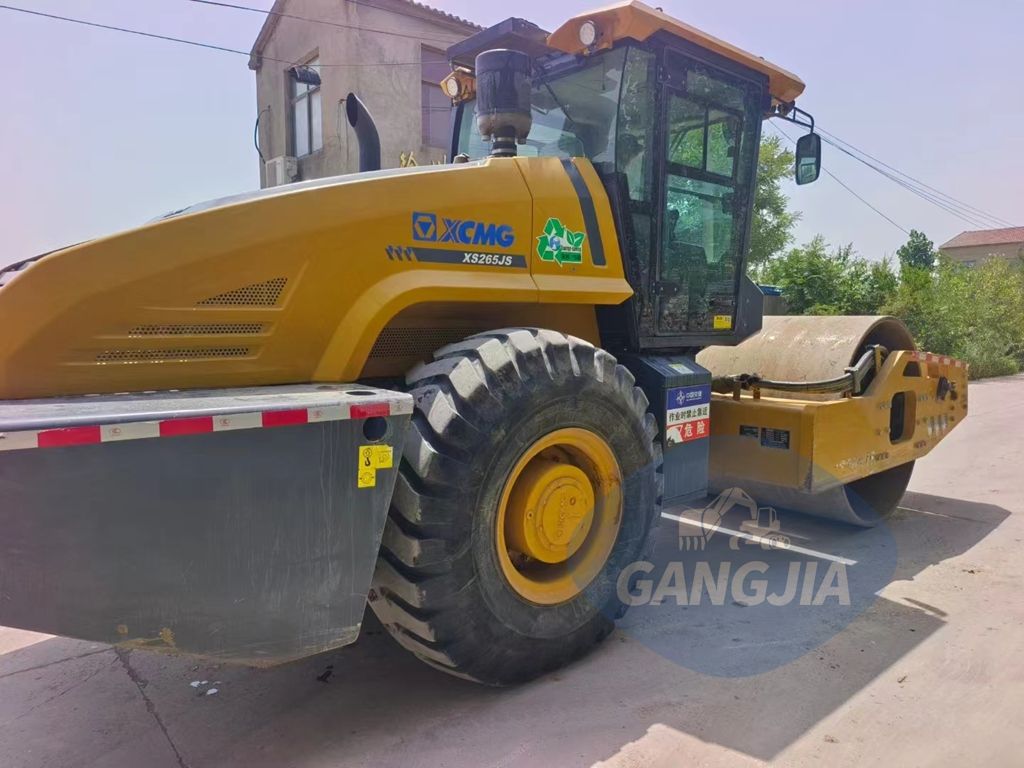

XCMG XS265JS roller parameter configuration
Mass load parameters
Working mass with cab (kg) 26000
Front wheel distribution mass (kg) 13000
Rear wheel distribution mass (kg) 13000
Front wheel static linear load (N/cm) 582
Operation weight (kg) 20 tons or more
Compacting mechanism parameters
Vibration frequency (Hz) 27/32
Nominal amplitude (mm) 1.9/0.95
Excitation force (kN) 405/290
Working width/vibration wheel width (mm) 2170
Vibration wheel diameter (m m)1600
Mobility performance parameters
High-speed driving speed (km/h) 9.4
Low-speed driving speed (km/h) 2.95
Theoretical climbing ability during vibration (%) 35
Minimum turning radius (mm) 7000
Engine
Model SC7H190.2G3
Rated power (kw/rpm) 140/1800
Overall dimensions
Length (mm) 7000
Width (mm) 2470
Height (mm) 3260
Wheelbase (mm) 3430
Minimum ground clearance (mm) 500
