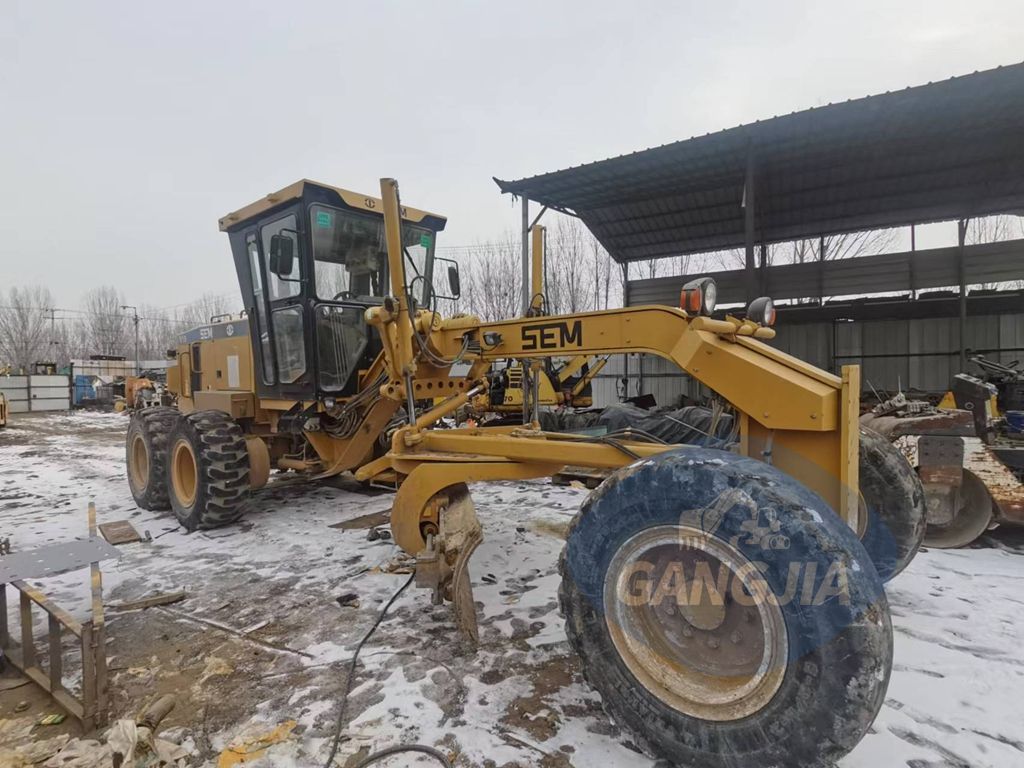

Shangong SEM919 grader parameter configuration

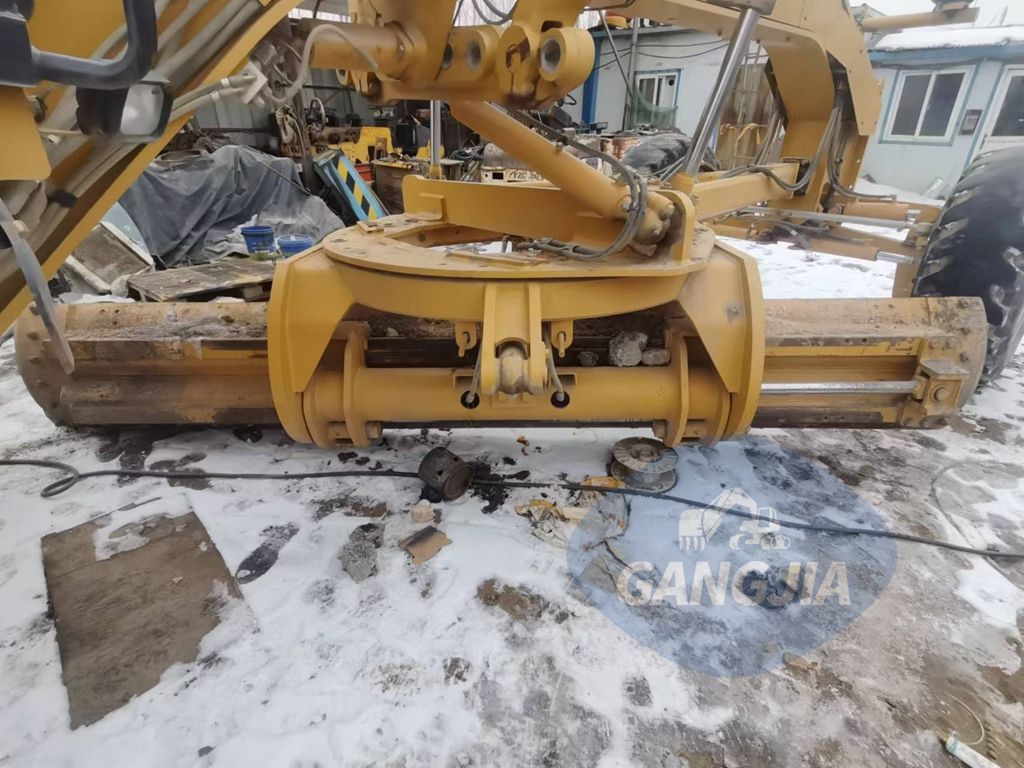

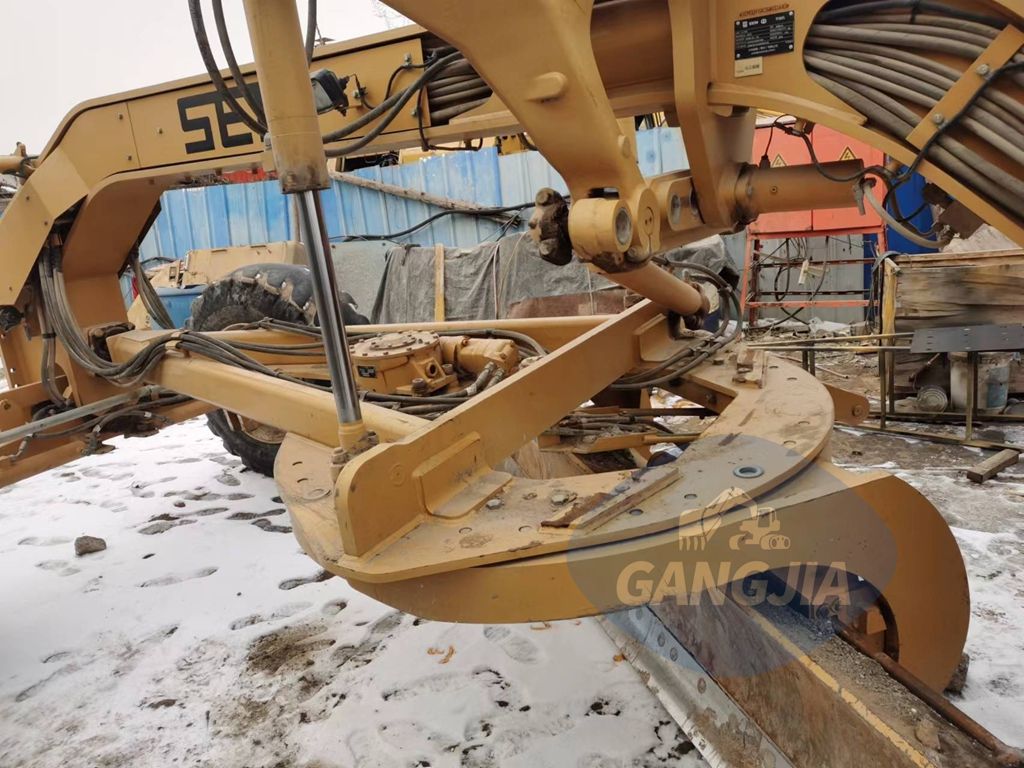

Blade performance

Blade length × height (mm) 3974

Blade lifting height (mm) 475

Blade digging depth (mm) 715

Blade tilt angle (°) front 40/rear 5

Engine

Model Shangchai SC8D190.1G2

Rated power (kw/rpm) 140/2200

Maximum torque (N.m) 720

Displacement (L) 8.82

Other instructions National II emission

Horsepower (hp) 181-250 hp

Steering system

Minimum turning radius (m) 7.8

Brake system

Service brake gas-top oil drum brake

Parking brake gas-controlled spring-assisted drum brake

Hydraulic system

Hydraulic pump type load sensing

Main pump pressure (Kpa) 22 MPa

Gearbox

Gearbox model 6WG180

Gearbox type Fixed-axis power shift

Maximum speed (km/h) 40

Maximum traction (kN) 78

Tire parameters

Tire specifications 17.5-25

Operation weight

Basic machine (kg) 15130

Specifications & dimensions

Distance from blade to front wheel (mm) 2538

Machine length (mm) 10324

Machine width (mm) 2630

Machine height (mm) 3360

Front and rear axle wheelbase (mm) 6138

Mid-rear wheelbase (mm) 1538

Wheelbase (mm) 2185

Minimum ground clearance (mm) 341
